Kubota 07-CR-E5 - Page 235

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S197
9Y3200007CRS0278US0
1. Check the Camshaft Position Sensor Signals
1. Rotate the engine, and check the "Cam speed active flag" value
on the diagnosis tool data monitor.
9Y3200007CRS0279US0

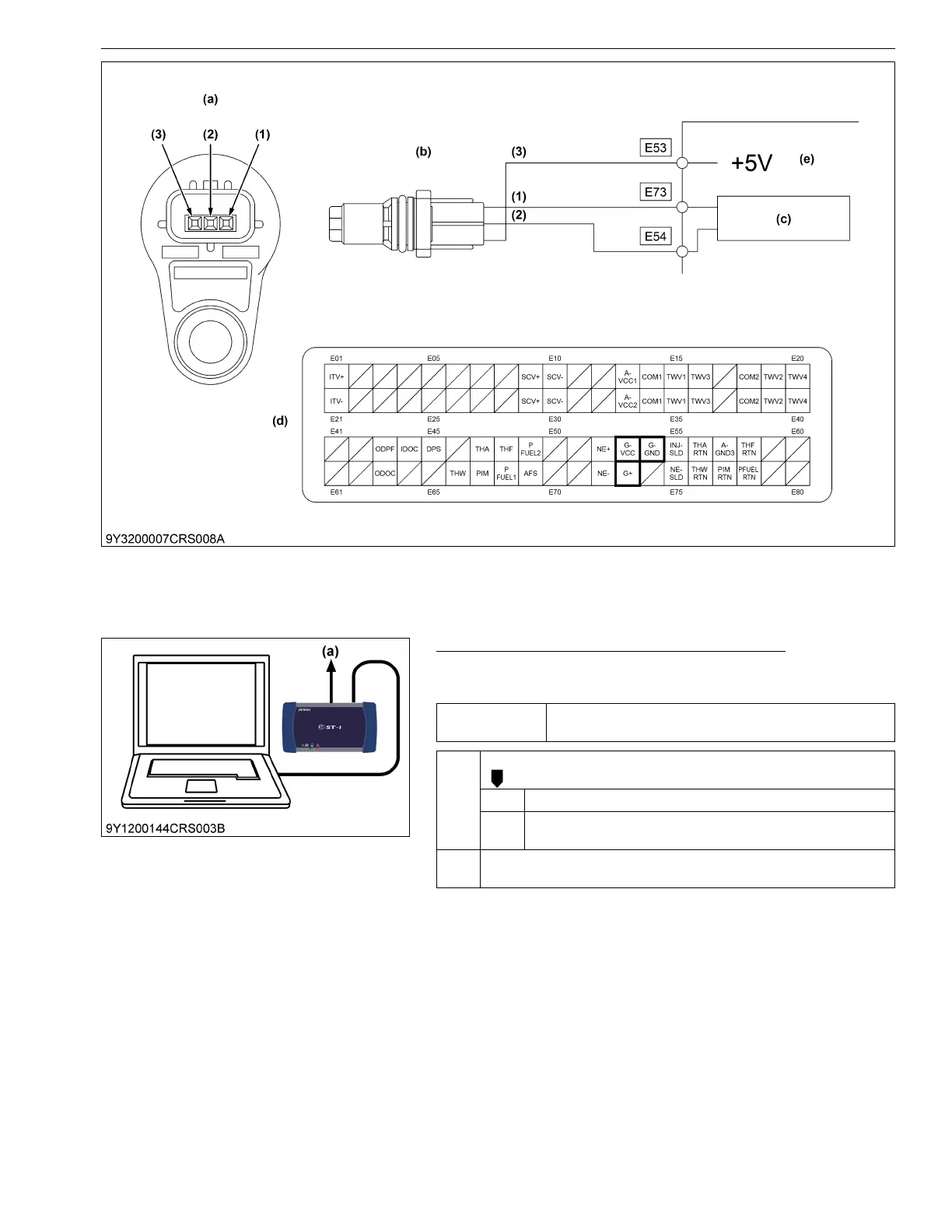

(1) Terminal G+
(2) Terminal G-GND
(3) Terminal G-VCC
(a) Pin Assignment
(b) Camshaft Position Sensor
(G Sensor)
(c) G Sensor Input Circuit
(d) Engine ECU Connector 1
(Engine Side)
(e) Engine ECU
Service
specification
Always ON
OK It should be confirmed two or more times while changing the accelerator.
OK Normal.
NG Go to "2. Check the Voltage Between Camshaft Position Sensor
Ter mi n als " .
NG Go to "2. Check the Voltage Between Camshaft Position Sensor
Terminals".
(a) CAN1 Connector
KiSC issued 03, 2022 A
