COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S199

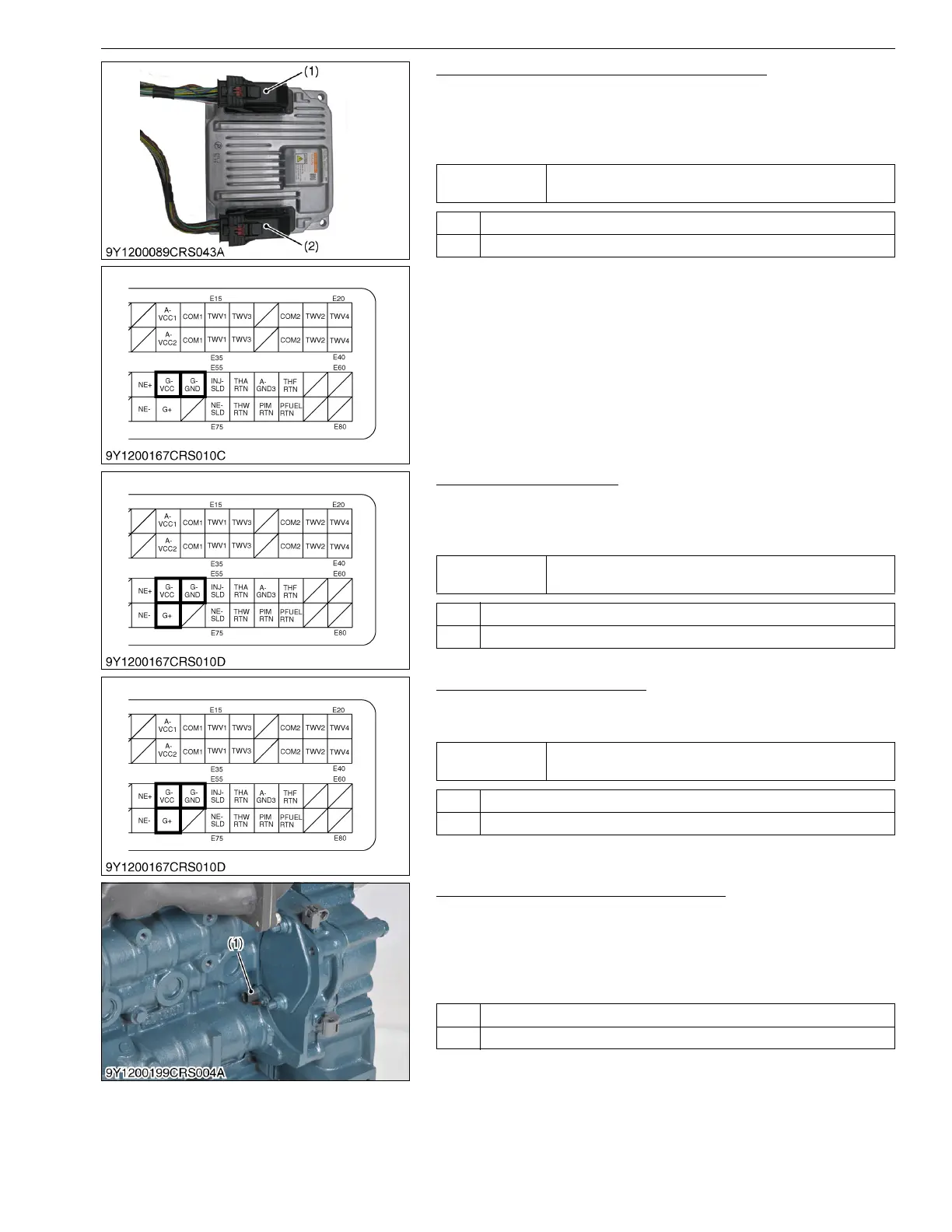

5. Measure the Engine ECU Terminal Voltage
1. Place the key switch in the OFF position, and unplug the engine
ECU wiring harness connector 1 (1) from the socket.
2. Place the key switch in the ON position, and measure the
voltage between engine ECU terminals E53 and E54.
9Y3200007CRS0283US0
6. Check the Connectors
1. Check engine ECU terminals E53, E73 and, E54 (at the engine
ECU side) and the connectors (at the wiring harness side) for
incorrect connection, inappropriate fitting, poor contact.
9Y3200007CRS0284US0
7. Check the Wiring Harness
1. Check the wiring harness being connected to engine ECU
terminals E53, E73 and E54 for a short or an open circuit.
9Y3200007CRS0285US0
8. Check the Camshaft Position Sensor
1. Disconnect the sensor and check the following items.
• Is there a large amount of magnetic foreign material
adhering to the sensor surface?
• Are there interference marks of the pulsar and the sensor?
• Are there any pulsar gear abnormalities?
9Y3200007CRS0286US0
Service
specification
Approx. 5 V
OK Go to "6. Check the Connectors".
NG Replace the engine ECU.
(1) Engine ECU Wiring Harness
Connector 1 (Engine Side)
(2) Engine ECU Wiring Harness
Connector 2 (Machine Side)
Service
specification
Must be free from incorrect connection, inappropriate fitting,
poor contact.
OK Go to "7. Check the Wiring Harness".
NG Repair or replace.
Service
specification
Must be free from shorts and open circuit.
OK Go to "8. Check the Camshaft Position Sensor".
NG Replace.
OK Replace the engine ECU and test.
NG Replace the sensor.
(1) Camshaft Position Sensor
(G Sensor)
To Next Page
