COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-M21
9Y3200007CRM0018US0

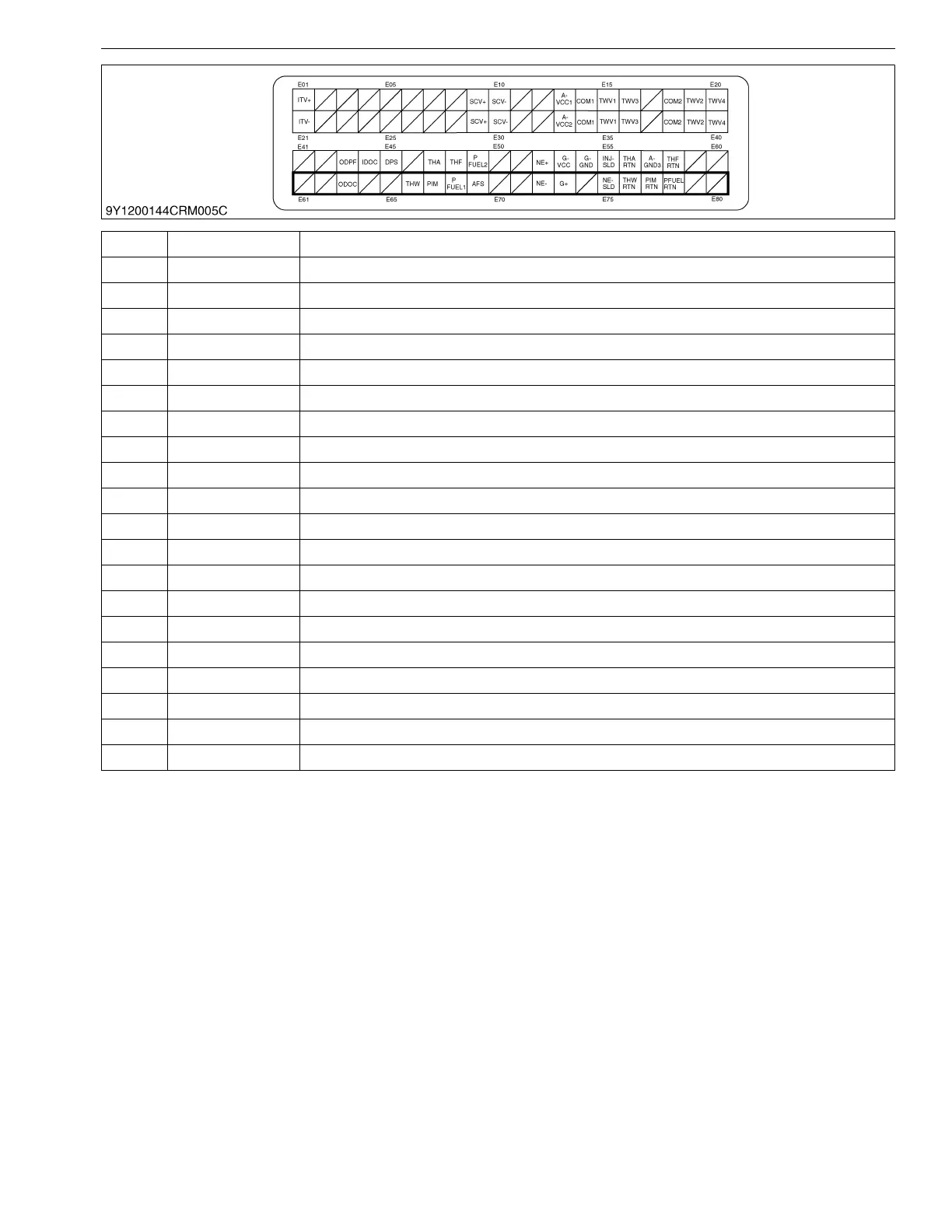

No. Terminal Name Signal Name
E61 – –
E62 – –
E63 ODOC OUTLET DOC (EXHAUST GAS TEMPERATURE SENSOR T
1
)
E64 – –
E65 – –
E66 THW COOLANT TEMPERATURE SENSOR
E67 PIM BOOST PRESSURE SENSOR
E68 PFUEL1 RAIL PRESSURE SENSOR 1
E69 AFS AIR FLOW SENSOR
E70 – –
E71 – –
E72 NE- CRANKSHAFT POSITION SENSOR (−)
E73 G+ CAMSHAFT POSITION SENSOR (+)
E74 – –
E75 NE-SLD CRANKSHAFT POSITION SENSOR SHIELD GROUND
E76 THW RTN COOLANT TEMPERATURE SENSOR RTN
E77 PIM RTN BOOST PRESSURE SENSOR RTN
E78 PFUEL RTN RAIL PRESSURE SENSOR RTN
E79 – –
E80 – –
