6. Check the Wiring Harness
Locate the cause of wiring harness ground short, and replace
the faulty area.
NOTE
• If DTC P2147 (Shorted injector actuation circuit to the
ground) has occurred, be sure to check the insulation of
injector itself in the following procedure.
1. Place the key switch in the OFF position, unplug each injector
connector from socket, and visually check the connector status.
2. Using an insulation resistance tester (megger tester), measure
the resistance between each of terminals (1) and (2) and the
chassis ground (at the injector side).
9Y3200007CRS0416US0
DTC Relating Engine ECU Terminals
Shorted Harness
Side
P2147
Terminal E14 / E34 or E18 / E38
(E15 / E35, E16 / E36, E19 / E39, E20 /
E40 occurring simultaneously)
Ground
P2148
Terminal E14 / E34 or E18 / E38
(E15 / E35, E16 / E36, E19 / E39, E20 /
E40 occurring simultaneously)
Power supply
Service
specification
Must be free from sludge and sparks.
Service
specification
10 MΩ or higher
OK The injector functions normally. Locate another cause.
NG Faulty injector → Replace.

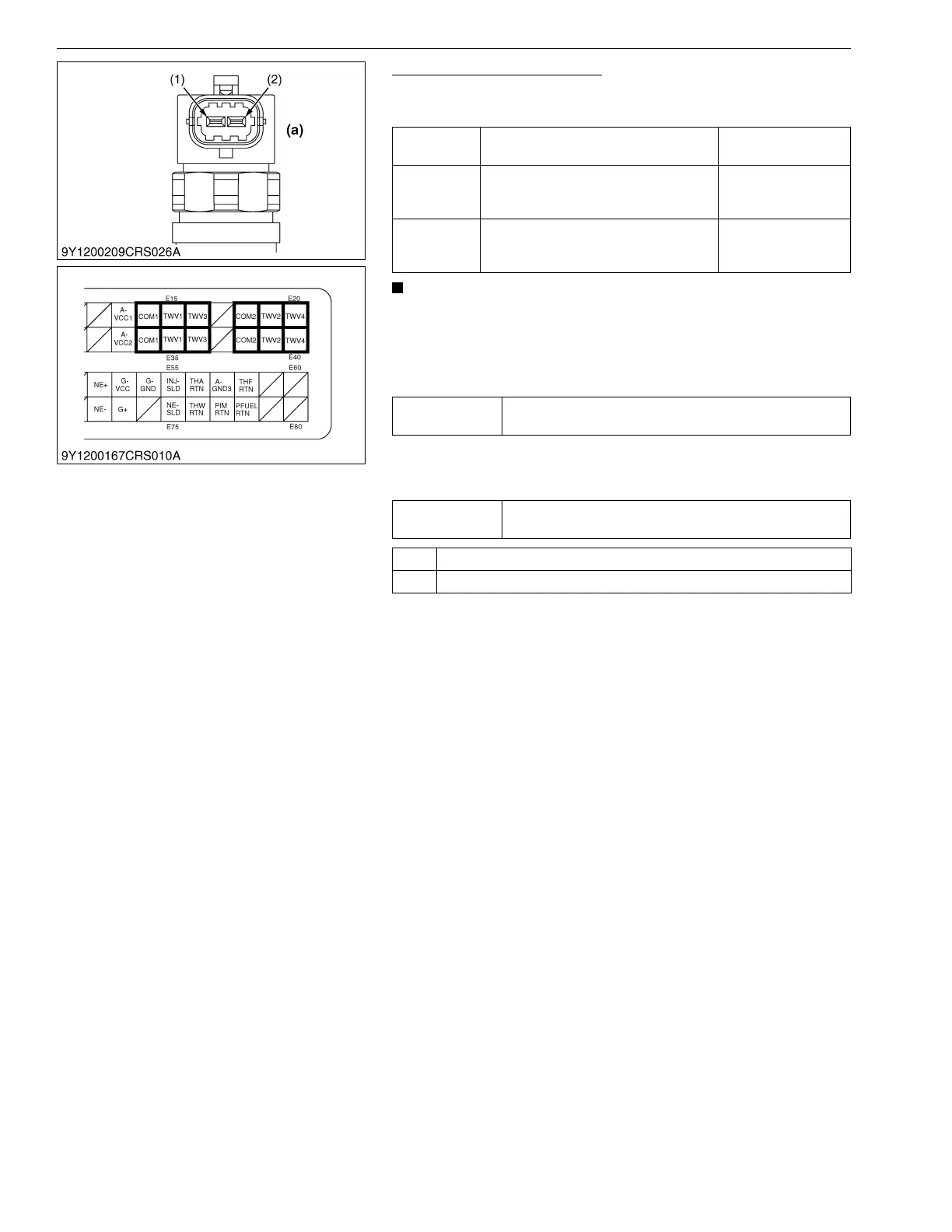

(1) Terminal COMMON
(2) Terminal TWV
(a) Injector
