Kubota 07-CR-E5 - Page 320

COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S282
9Y3200007CRS0437US0
(1) Terminal A-VCC12
(2) Terminal A-GND11
(3) Terminal DPS

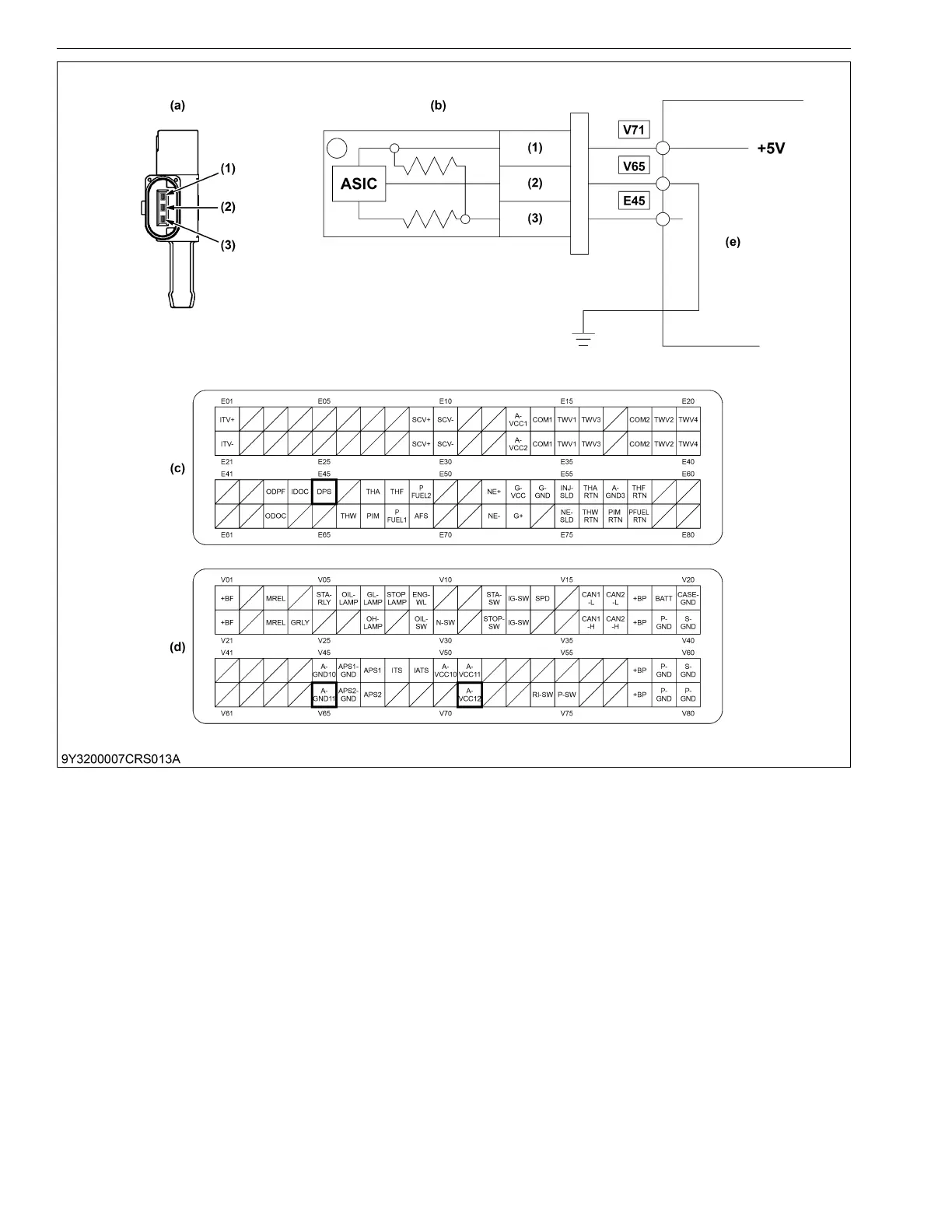

(a) Pin Assignment
(b) Differential Pressure Sensor
(c) Engine ECU Connector 1
(Engine Side)
(d) Engine ECU Connector 2
(Machine Side)
(e) Engine ECU
