COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S287
9Y3200007CRS0375US0
1. check the intake throttle signal
1. after operating the engine, perform an active test.
monitor the "actual intake throttle valve opening" and "intake
throttle opening output voltage", and check the values.
* for details, refer to the active test section.
2. clear the dtc and check whether it is output again or not.
9Y3200007CRS0376US0

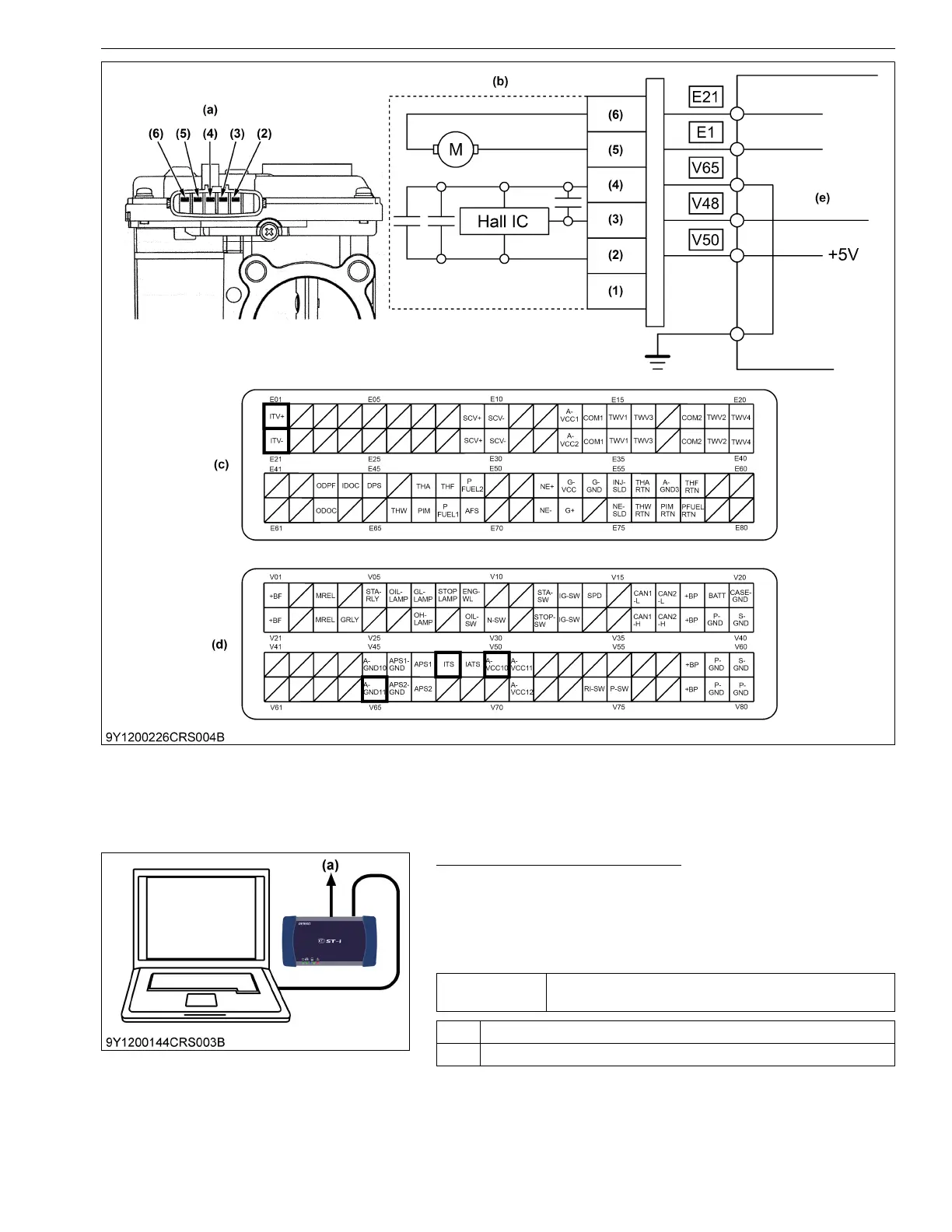

(1) No Connection
(2) Terminal A-VCC10 (+5 V)
(3) Terminal ITS (Output)
(4) Terminal A-GND11 (Ground)
(5) Terminal ITV+
(6) Terminal ITV–
(a) Pin Assignment
(b) Intake Throttle Valve
(c) Engine ECU Connector 1
(Engine Side)
(d) Engine ECU Connector 2
(Machine Side)
(e) Engine ECU
Service
specification
No DTC is output.
OK Normal.
NG Go to "2. Checking Wiring Harness".
(a) CAN1 Connector
To Next Page
