COMMON RAIL SYSTEM
07-CR-E5,07-CR-TE5,07-CR-TIE5, DM
1-S57

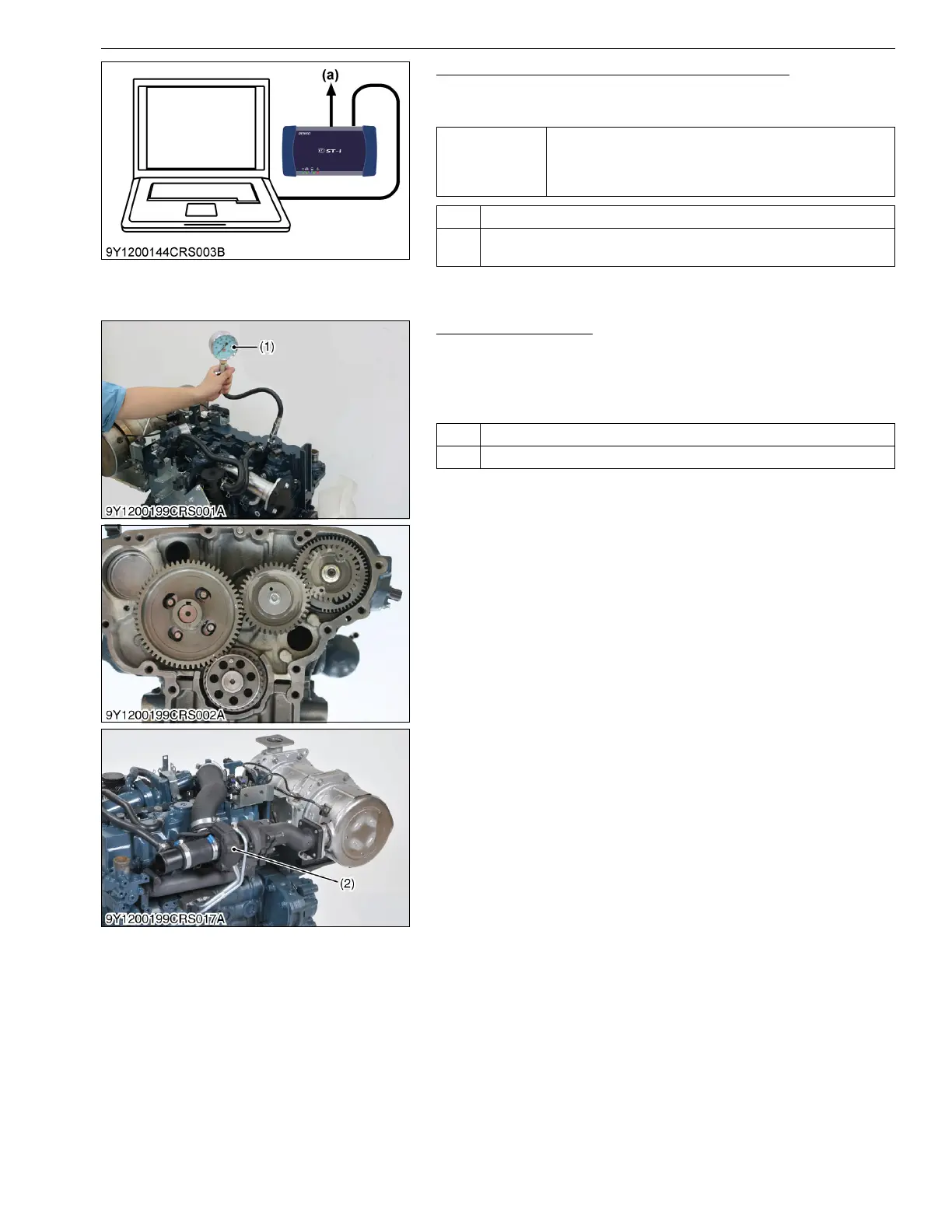

10. Check the Injector (Including the Pipes, etc.)
1. Perform the diagnosis tool active test (stopping the injector
injection by cylinder) and check the injector performance.
9Y3200007CRS0091US0
11. Check the Engine
1. Check the compression pressure, valve clearance, valve timing,
the inside of the engine and engine oil viscosity.
2. Check the timing gear.
3. Check the turbocharger.
9Y3200007CRS0092US0
Service
specification
1. Engine vibration and noise are increased and the rotation
speed is reduced when the injection for the corresponding
cylinder is stopped.
2. The same results must be attained from all the cylinders.
OK Go to "11. Check the Engine".
NG Check and repair faulty parts including the high pressure line of the
defective cylinder.
(a) CAN1 Connector
OK Normal.
NG Repair or replace the related parts.
(1) Compression Tester (2) Turbocharger
