Kyocera KM-3050

2GN/2GP/2GR-6
1-3-70
U404
Adjusting margins for scanning an original from the DP
Description
Adjusts margins for scanning the original from the DP.
Purpose
Make the adjustment if margins are incorrect when the optional DP is used.
Caution
Before making this adjustment, ensure that the following adjustments have been made in maintenance mode.
Adjustment
1. Press the start key.
2. Select the item to be adjusted.
3. Press the system menu key.
4. Place an original on the DP and press the start key to make a test copy.
5. Press the system menu key.
6. Change the setting value using the +/- keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.

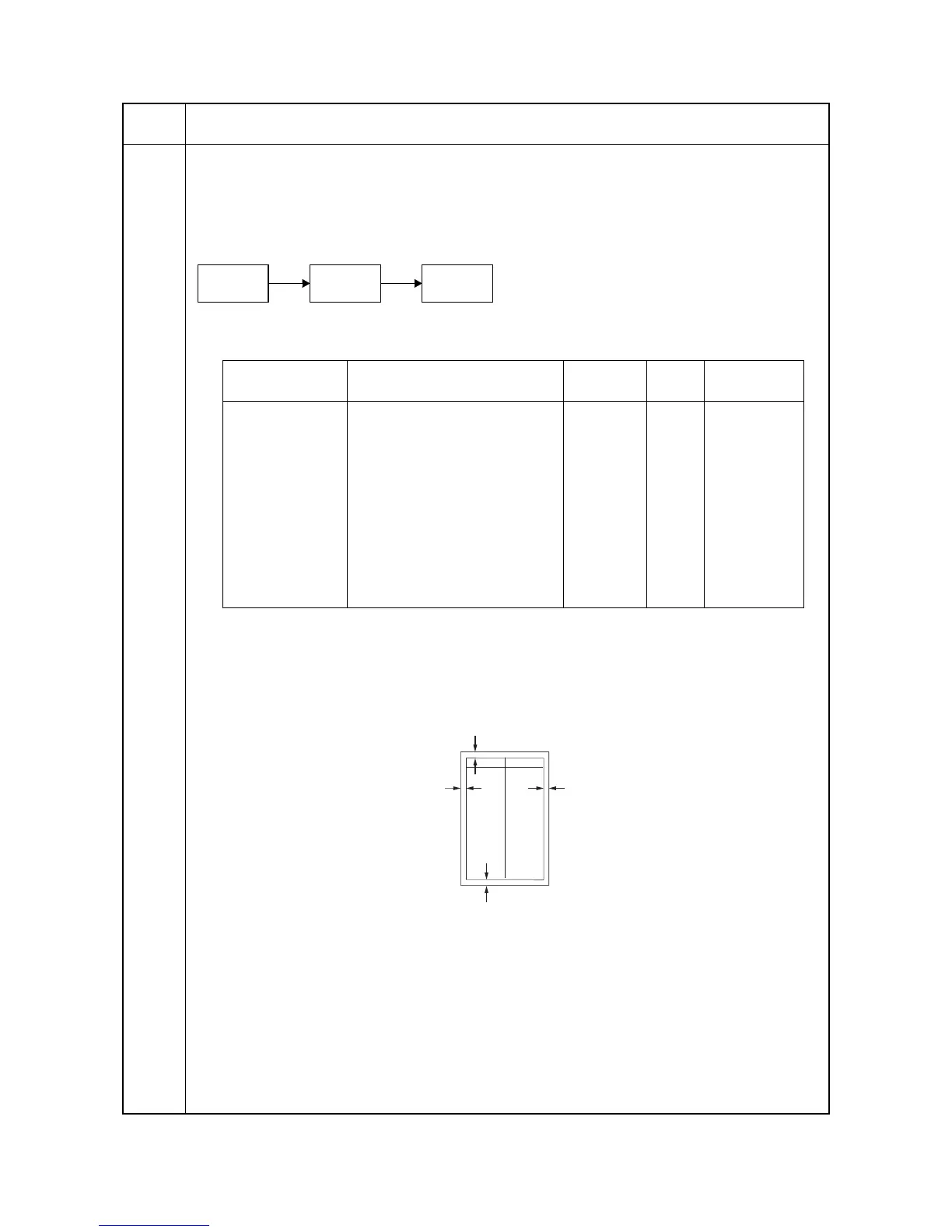

Figure 1-3-26
7. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
U403
(P.1-3-69)
U402
(P.1-3-68)
U404
Display Description
Setting
range
Initial
setting
Change in
value per step
A MARGIN Left margin (first page) 0 to 10.0 3.0 0.5 mm
B MARGIN Leading edge margin (first page) 0 to 10.0 2.5 0.5 mm
C MARGIN Right margin (first page) 0 to 10.0 3.0 0.5 mm
D MARGIN Trailing edge margin (first page) 0 to 10.0 4.0 0.5 mm
A MARGIN(BACK) Left margin (second page) 0 to 10.0 3.0 0.5 mm
B MARGIN(BACK) Leading edge margin (second
page)
0 to 10.0 2.5 0.5 mm
C MARGIN(BACK) Right margin (second page) 0 to 10.0 3.0 0.5 mm
D MARGIN(BACK) Trailing edge margin (second
page)
0 to 10.0 4.0 0.5 mm
Leading edge margin
(3±1.5 mm)
Trailing edge margin
(2±1.0 mm)
Left margin
(2±1.0 mm)
Right margin
(2±1.0 mm)
