Kyocera KM-3050 Service Manual

2GN/2GP/2GR-1
1-3-57
U246
Setting the finisher
Description
Provides various settings for the optional finisher, if furnished.
Purpose
Adjustment of registration stop timing in punch mode
Adjust if skewed paper conveying occurs or if the copy paper is Z-folded in punch mode.
Adjustment of paper stop timing in the punch mode
To adjust this item when the position of a punch hole is different from the specified one.
Adjustment of front/rear side registration home position of internal tray
Provides optimization when paper jam occurs due to an inferior fitting of the internal tray adjuster guides to paper.
Adjusting of front and back/slanted stapling home position
Adjusts the stapling position in the staple mode if the position is not proper.
Provides adjustment of slanted stapling.
Adjustment of upper/lower side registration home position of centerfold unit
Provides optimization when paper jam occurs due to an inferior fitting of the centerfold adjuster guides to paper.
Adjustment of booklet stapling position
Adjusts the booklet stapling position in the stitching mode if the position is not proper.
Adjustment of center folding position
Adjusts the center folding position in the stitching mode if the position is not proper.
Start
1. Press the start key.
2. Select the item to be set. The screen for setting each item is displayed.
Setting: 3000-sheet document finisher
1. Select the item to be set.
Setting: adjustment of registration stop timing
1. Select [PUNCH REG ADJ].
2. Change the setting using the +/- or numeric keys.
If skewed paper conveying occurs (sample 1), increase the preset value. If the copy paper is Z-folded
(sample 2), decrease the preset value.

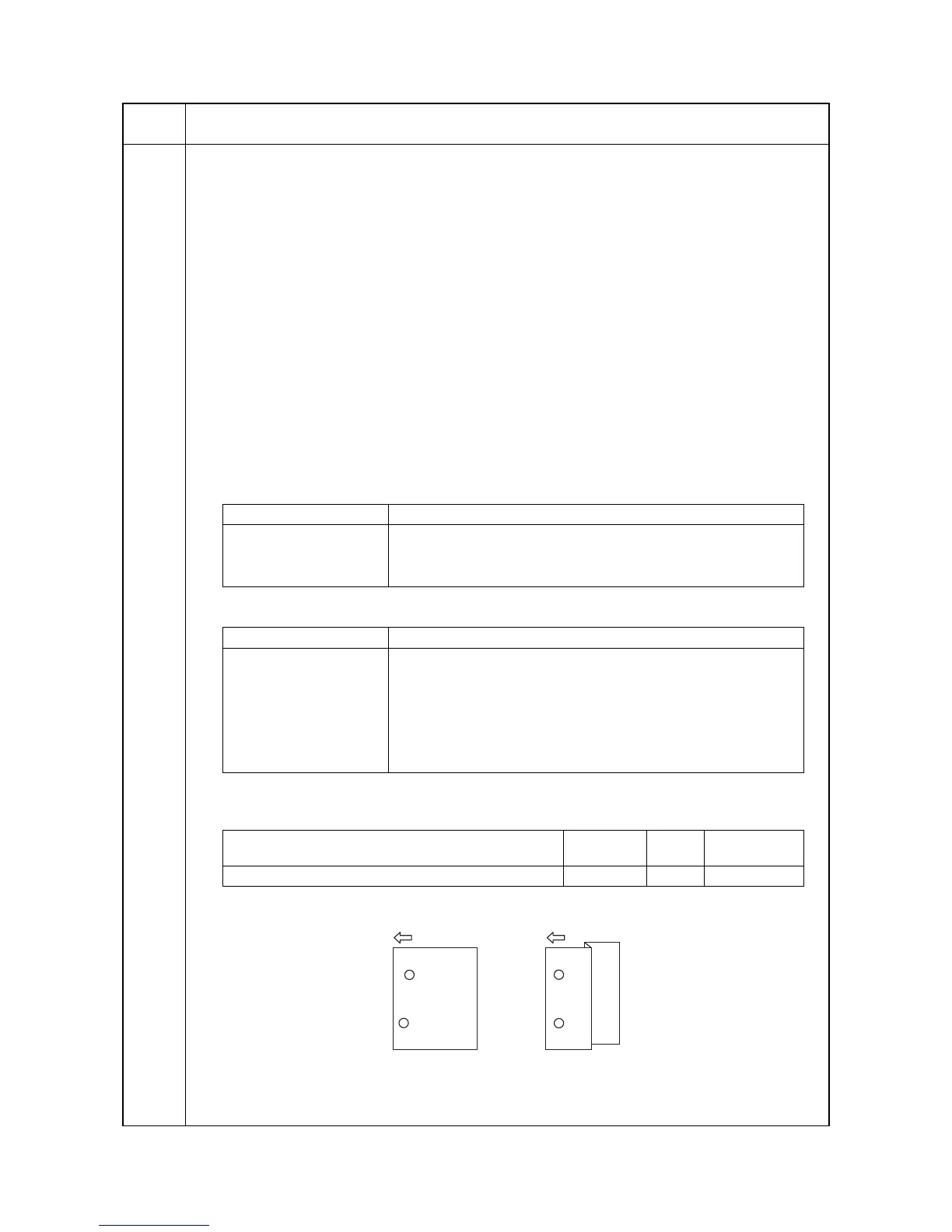

Figure 1-3-18
3. Press the start key. The value is set.
4. To return to the screen for selecting an item, press the stop key.
Maintenance
item No.
Description
Display Description
FINISHER 3000 Adjustment of the 3000-sheet document finisher
BOOKLET FOLDER Adjustment of the centerfold unit
FINISHER B-IN Adjustment of the built-in finisher
Display Description
PUNCH REG ADJ Adjustment of registration stop timing in punch mode
PUNCH POS ADJ Adjustment of the paper stop timing in punch mode
WIDTH F HP ADJ Adjustment of front side registration home position
WIDTH R HP ADJ Adjustment of rear side registration home position
STAPLE HP ADJ Adjustment of front and back stapling home position
T-STAPLE HP ADJ Adjustment of slanted stapling home position
Description
Setting
range
Initial
setting
Change in
value per step
Adjustment of registration stop timing -20 to 20 0 1 ms
Sample 1 Sample 2

Kyocera KM-3050 Specifications

Power

voltage	120V
frequency	60Hz
current	11.5A

System Memory

standard RAM	512MB
maximum RAM	1GB
hard drive capacity	80GB

Output Speeds

warm-up time	Within 30 Seconds
first copy out time	3.9 Seconds
pages per minute (letter)	30

Weight and Dimensions

width	23.6"
depth	25.4"
height	29.3"
weight	188 lbs
