Kyocera KM-3050

2GN/2GP/2GR
1-1-6
1-1-3 Machine cross section

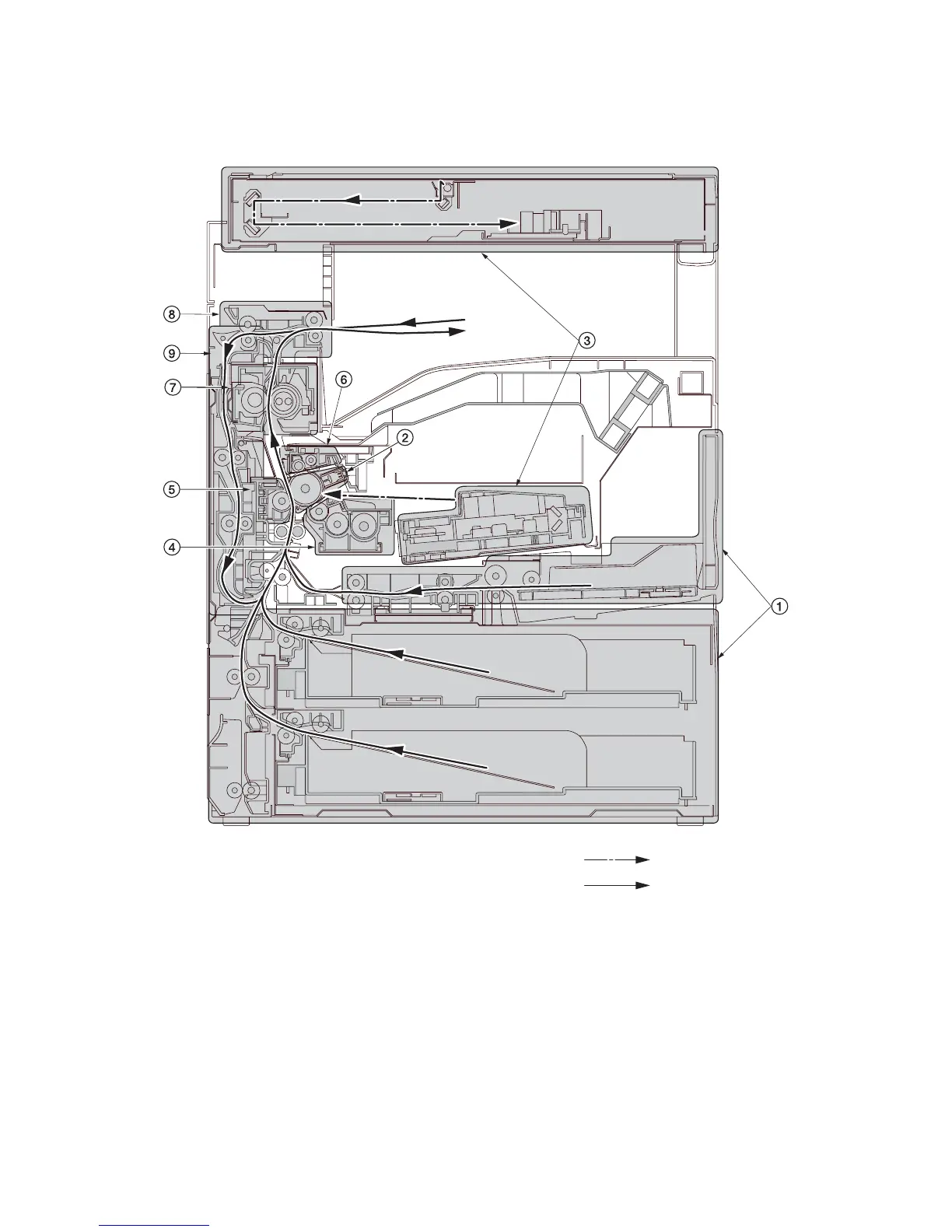

Figure 1-1-3 Machine cross section
Light path
Paper path
1. Paper feed section
2. Main charging section
3. Optical section
4. Developing section
5. Transfer and separation section
6. Cleaning and charge erasing section
7. Fuser section
8. Eject and switchback section
9. Duplex section
