2GN/2GP/2GR-1
1-5-37
1-5-8 Others

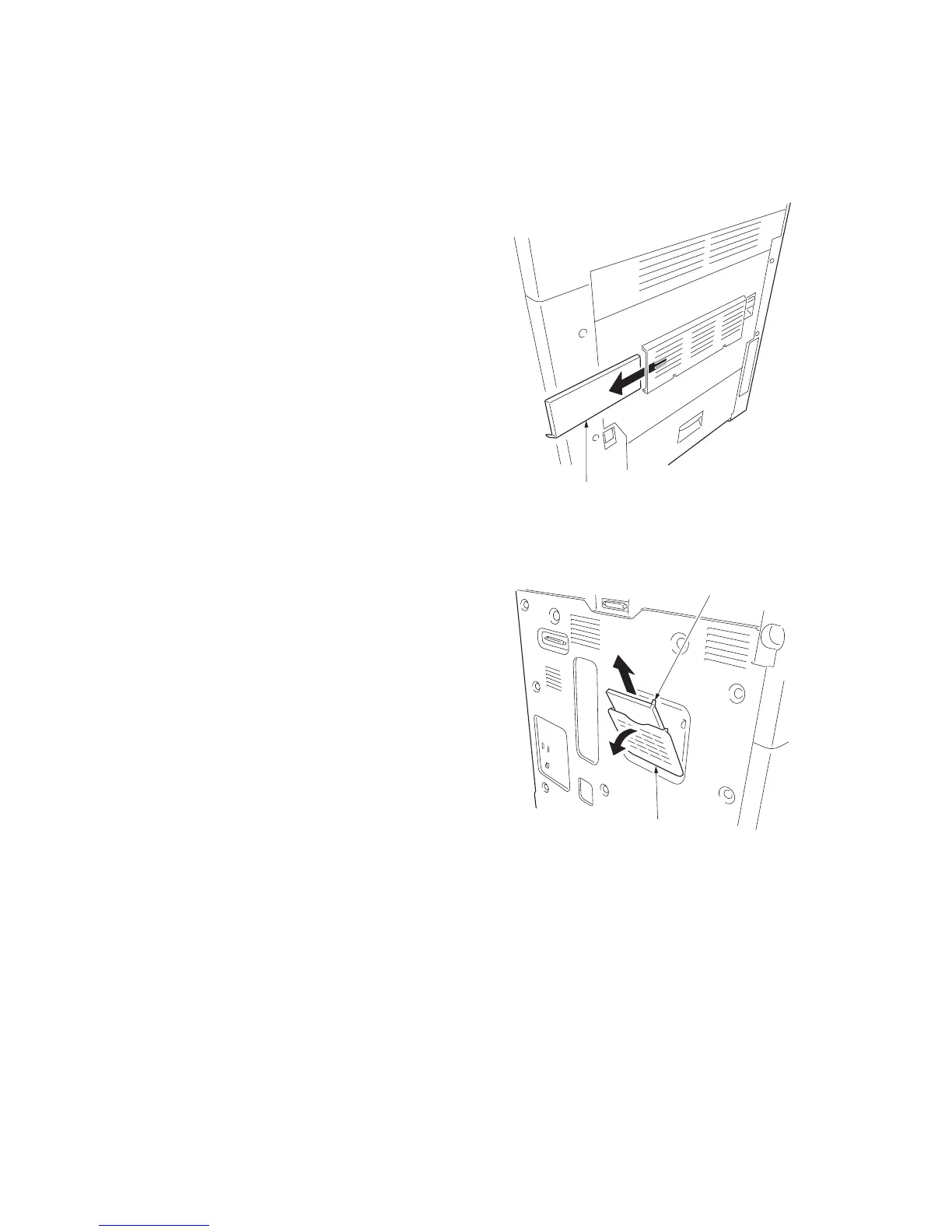

(1) Detaching and refitting the ozone filter 1 and 2
Follow the procedure below to replace the ozone filter 1 and 2.
Procedure
1. Remove the ozone filter 1 from the machine
left side.
Figure 1-5-75
2. Open the filter cover of the machine rear
side and remove the ozone filter 2.
3. Replace the ozone filter 1 and 2 and install
the filters.
Figure 1-5-76
Ozone filter 1
Ozone filter 2
Filter cover
