2GN/2GP/2GR-2
2-2-4
(3) Motors

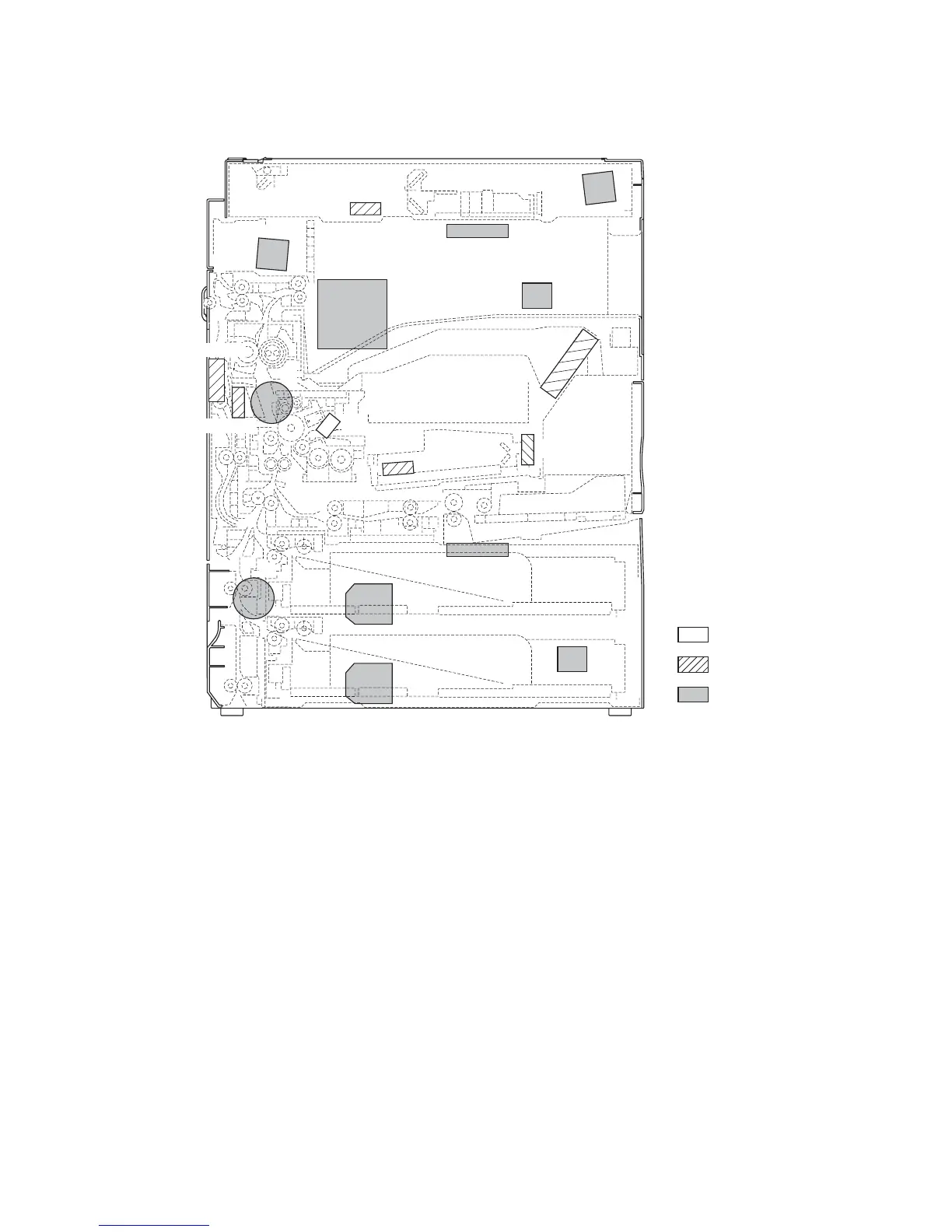

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Paper feed motor (PFM) .............................. Drives paper feed section.
3. Upper lift motor (LM-U) ................................ Drives cassette 1 lift.
4. Lower lift motor (LM-L)................................. Drives cassette 2 lift.
5. Scanner motor (SM)..................................... Drives the optical system.
6. Eject motor (EM).......................................... Drives the eject section.
7. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
8. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
9. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior (around the power source PWB).
10. Cooling fan motor 4 (CFM4) ........................ Cools the machine interior (around the power source PWB).
11. Cooling fan motor 5 (CFM5) ........................ Cools the machine interior (around the LSU).
12. Cooling fan motor 6 (CFM6) ........................ Cools the machine interior (controller box).
13. Cooling fan motor 7 (CFM7) ........................ Cools the machine interior (operation panel).
14. Cooling fan motor 8 (CFM8).......................... Cools the machine interior and supports paper transfer for duplex copying.
15.
Cooling fan motor 9 (CFM9)
......................... Cools the machine interior and supports paper transfer for duplex copying.
16.
Cooling fan motor 10 (CFM10)
..................... Cools the machine interior and supports paper transfer for duplex copying.
17. Cooling fan motor 11 (CFM11)..................... Cools the machine interior (around the paper conveying).
18. Cooling fan motor 12 (CFM12) .................... Cools the machine interior (around the paper conveying).
19. Cooling fan motor 13 (CFM13) .................... Cools the machine interior (around the paper conveying).
20. Cooling fan motor 14 (CFM14) .................... Cools the machine interior.
21. Polygon motor (PM)..................................... Drives the polygon mirror.
22. Main charger cleaning motor (MCCM)......... Drives the main charger auto cleaning.
3
4
21
13
5
6
7
20
12
8
1
22
10
11
14,15,16
17,18,19
2
Machine front
Machine inside
Machine rear
9
