2GN/2GP/2GR
2-1-2
The MP tray can be hold up to 200 sheets of paper at one time. Paper is fed from the MP tray by the rotation of the MP for-
warding pulley and MP paper feed pulley. Also during paper feed, the MP separation pulley prevents multiple sheets from
being fed at one time by the torque limiter.

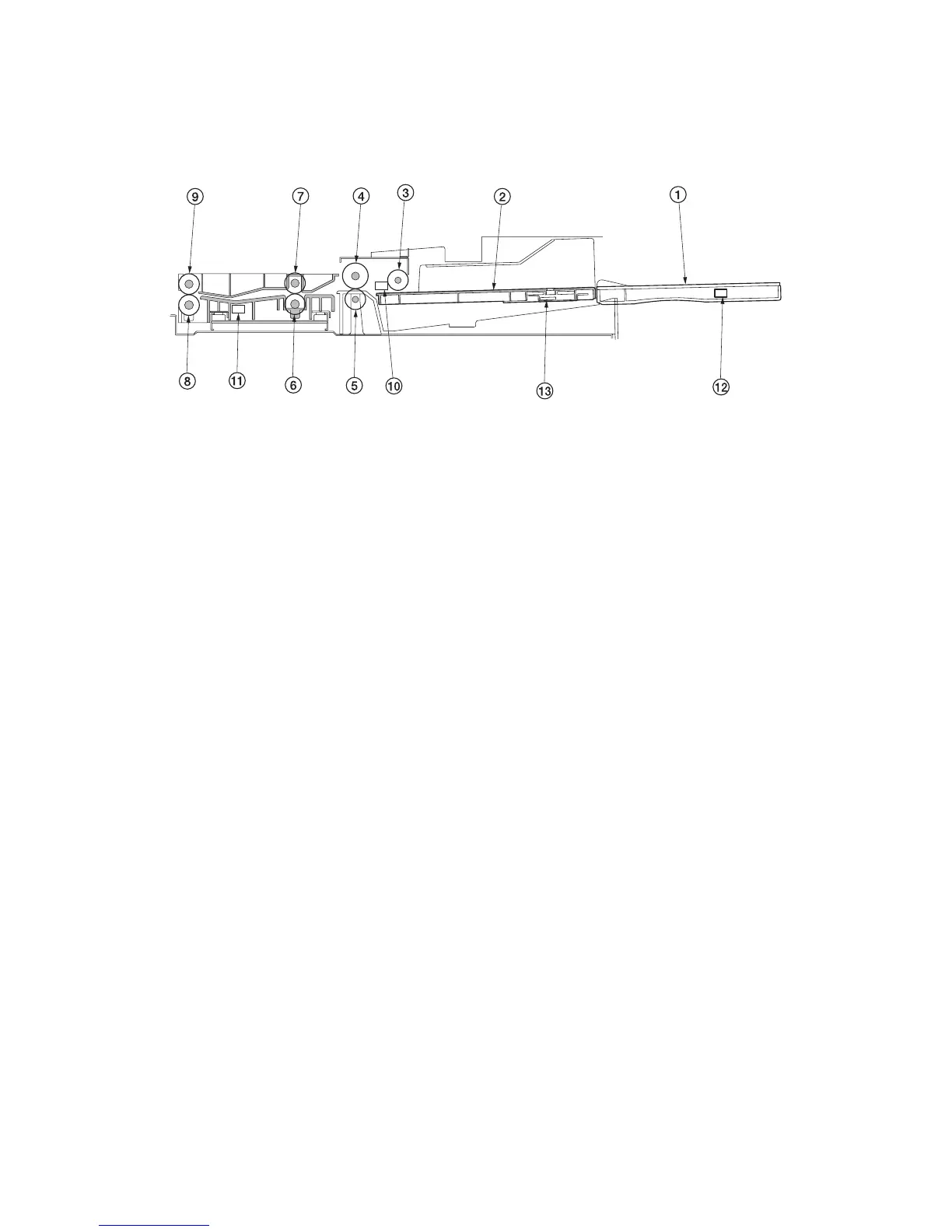

Figure 2-1-2 Paper feed from the MP tray
(1) MP tray
(2) MP lift guide
(3) MP forwarding pulley
(4) MP paper feed pulley
(5) MP separation pulley
(6) MP feed pulley
(7) MP feed roller 1
(8) MP feed pulley
(9) MP feed roller 2
(10) MP paper switch (MPPSW)
(11) MP feed switch (MPFSW)
(12) MP paper length switch
(MPPLSW)
(13) MP paper width switch
(MPPWSW)
