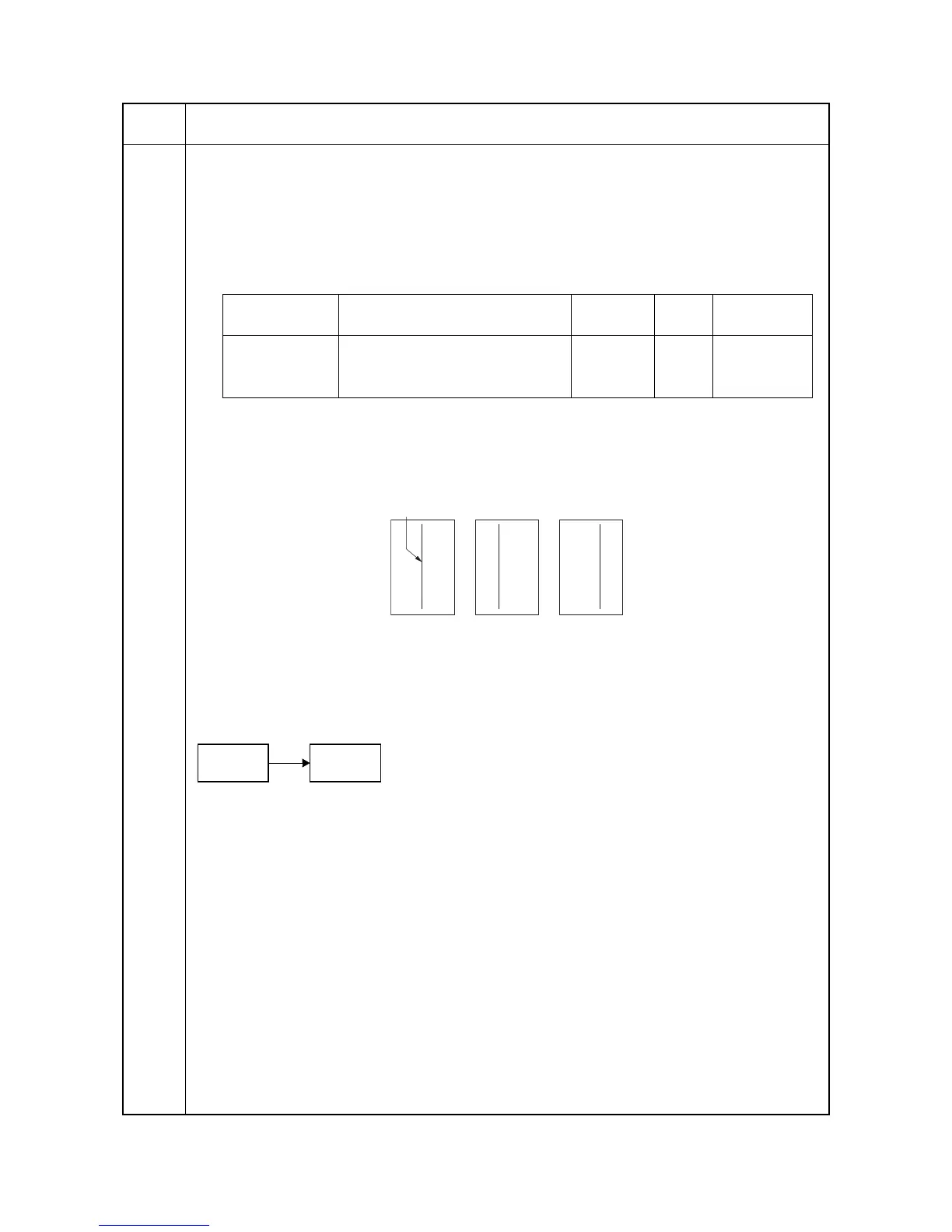

Kyocera KM-3050

2GN/2GP/2GR-1
1-3-33
U072
Adjusting the DP center line
Description
Adjusts the scanning start position for the DP original.
Purpose
Make the adjustment if there is a regular error between the centers of the original and the copy image when
the optional DP is used.
Adjustment
1. Press the start key.
2. Select the item to be adjusted.
3. Press the system menu key.
4. Place an original on the DP and press the start key to make a test copy.
5. Press the system menu key.
6. Change the setting value using the +/- or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Figure 1-3-16
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
Display Description Setting
range
Initial
setting
Change in
value per step
ADJUST DATA1 Center line for the simplex copy mode -39 to 39 0 0.17 mm
ADJUST DATA2 Center line for the duplex copy mode -39 to 39 0 0.17 mm
ADJUST DATA3 Center line for rotate copying -7 to 7 0 0.17 mm
Original Copy
example 1
Copy
example 2
Reference
U072
U404
(P.1-3-70)
