2GN/2GP/2GR-1
1-5-33
(4) Detaching and refitting the fuser heater
Follow the procedure below to replace the fuser heater.
Procedure
1. Remove the fuser unit (see page 1-5-30).
2. Remove the upper fuser cover (see page 1-
5-31).
3. Remove two screws and the connector.

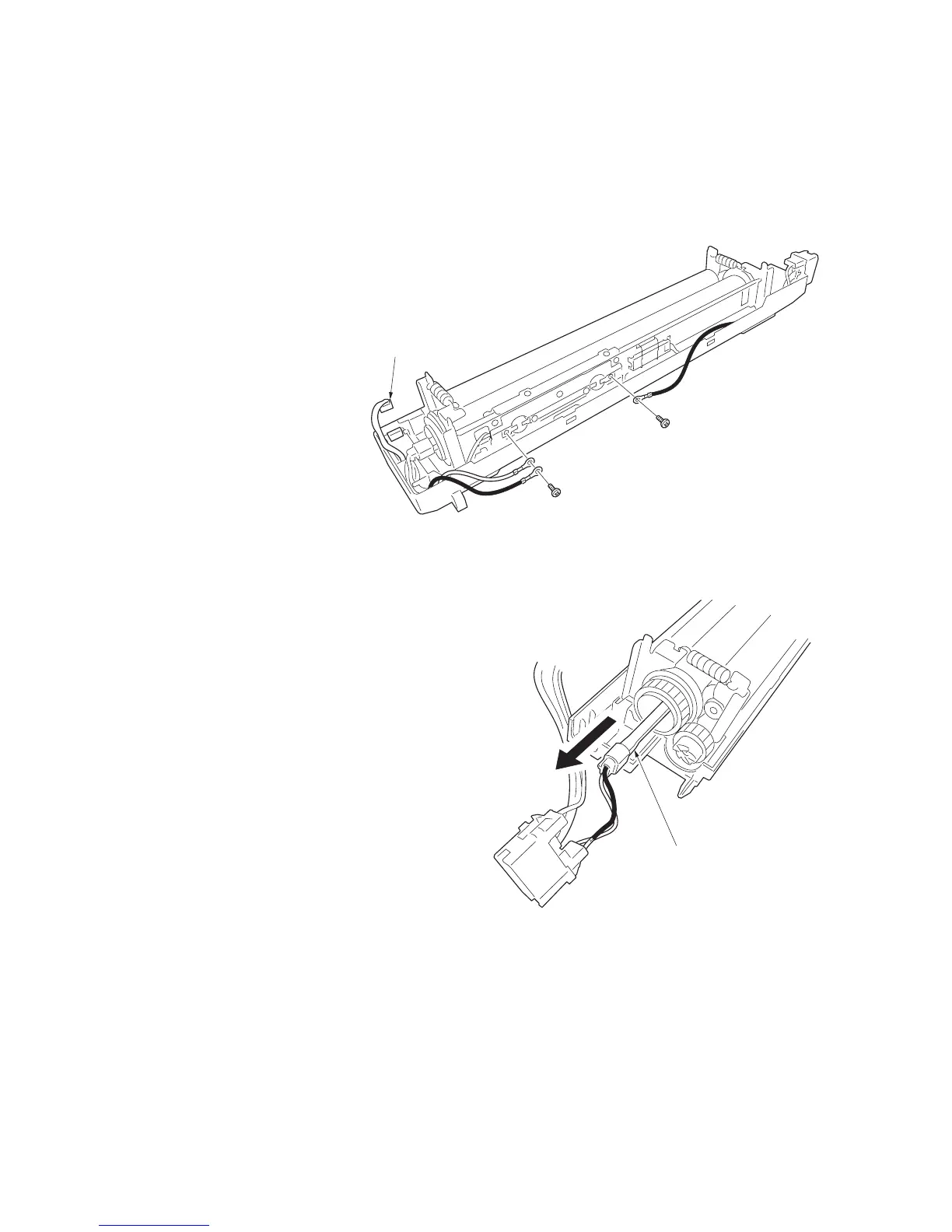

Figure 1-5-67
4. Pull out the fuser heater from the fuser unit.
Figure 1-5-68
5. Replace the fuser heater and install the
heater to fuser unit.
6. Refit the upper fuser cover.
7. Refit the fuser unit.
Connector
Fuser heater
To Next Page
