Lubrication 107
Greasing Crusher Panel (optional)
To properly maintain the crusher panel:
1. Grease the crusher panel cylinder heads by using the grease fittings.
2. Grease the crusher panel bushings.
3. Grease the grease fittings on the lower tube rings (see Figure 4-13).

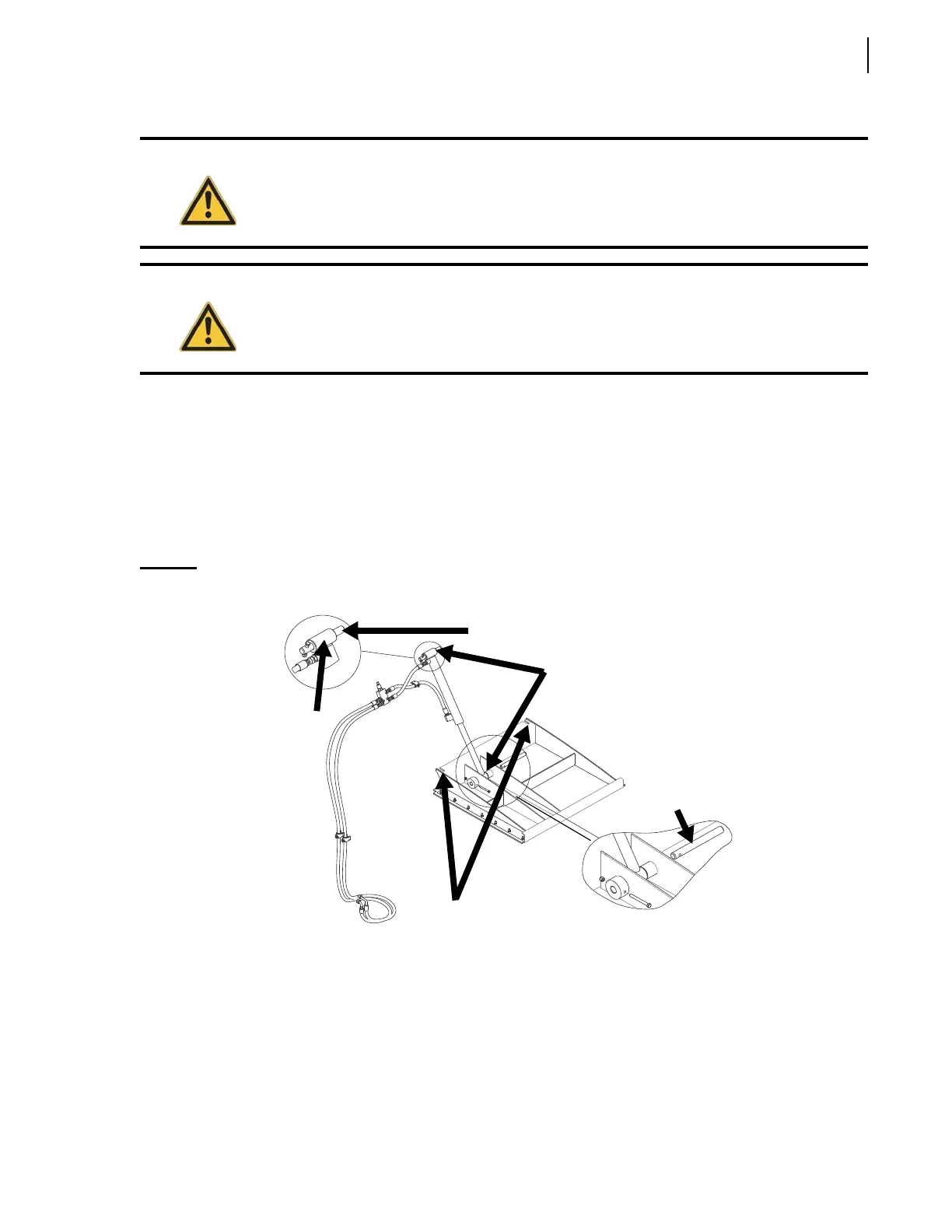

Figure 4-12
Grease areas
Caution!
Never grease the side rails and the outside of rollers. Sand and other abrasives stick to
grease, which may cause premature component wear.
Caution!
Because of their intensive use, the packer and its accessories must be lubricated every
working day.
Cylinder
axle
Cylinder
head
Grease
fittings
Bushings
Cylinder
axle
