60 General Maintenance
Lower Wear Pad
Removing Lower Wear Pad - Standard Units
To remove the lower wear pad on a standard unit, apply the following procedure:
1. Start the engine and engage the hydraulic pump.
2. Using the joystick, extend the automated arm to get better access to the hopper area.
3. Fully extend the packer, then push the red emergency STOP button to maintain the packer in its
fully extended position.
4. Disengage the hydraulic pump and stop the engine.
5. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 12).
6. Take the floating panel out of the hopper with an appropriate lifting device. To do so:
6 a. Pull the panel spring-loaded latch to the right and turn its handle a quarter of a turn
counter-clockwise so that the latch will not spring back to its original position.

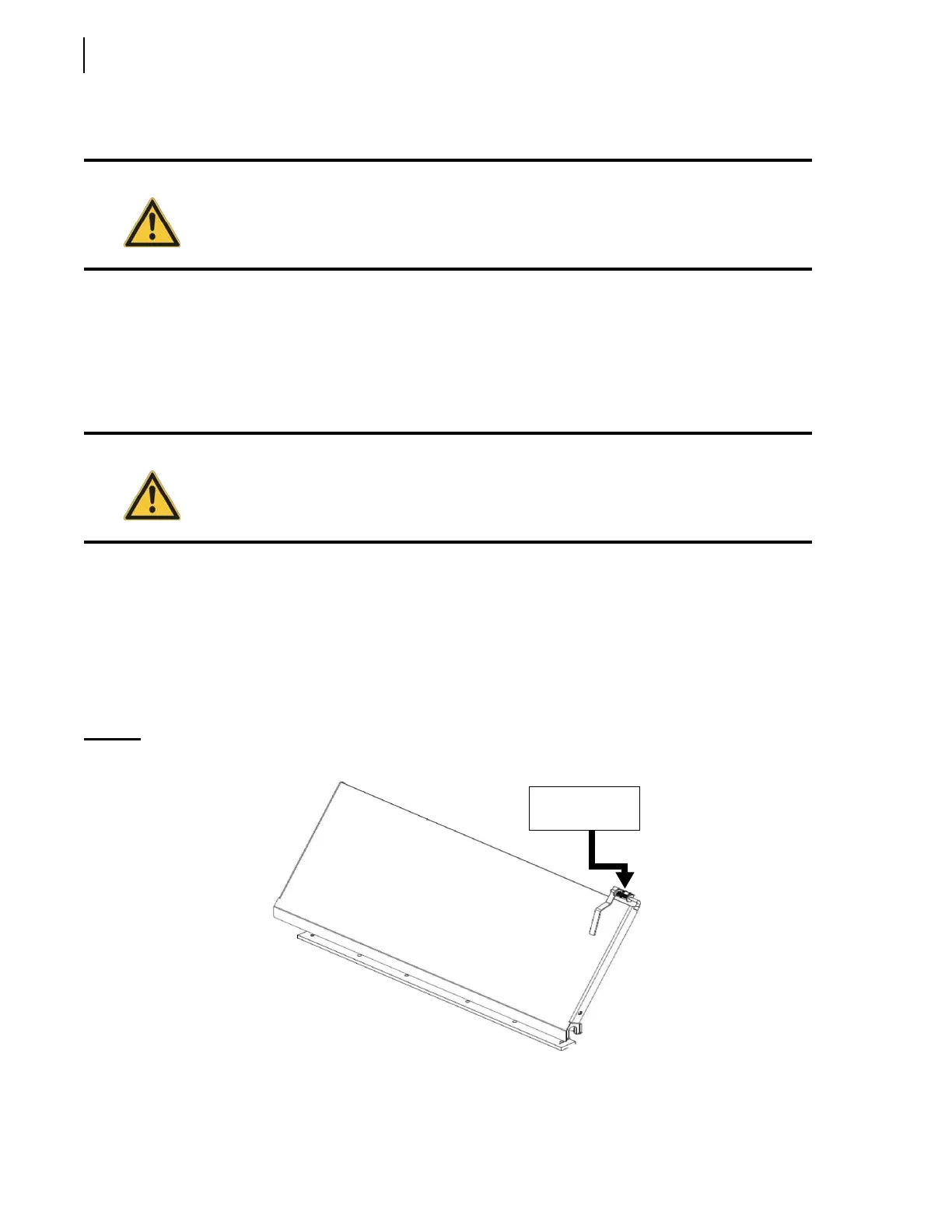

Figure 3-54
Floating panel
Danger!
Always lock out and tag out the vehicle during inspection and maintenance (see Locking
Out and Tagging Out the Vehicle on page 12).
Danger!
Secure the area around the path of the arm when performing maintenance or repair.
Spring-loaded
latch
