56 General Maintenance
Upper Wear Pads
When the packer moves vertically by more than 3 16” (checked with a pry bar), the upper wear pads
must be replaced.

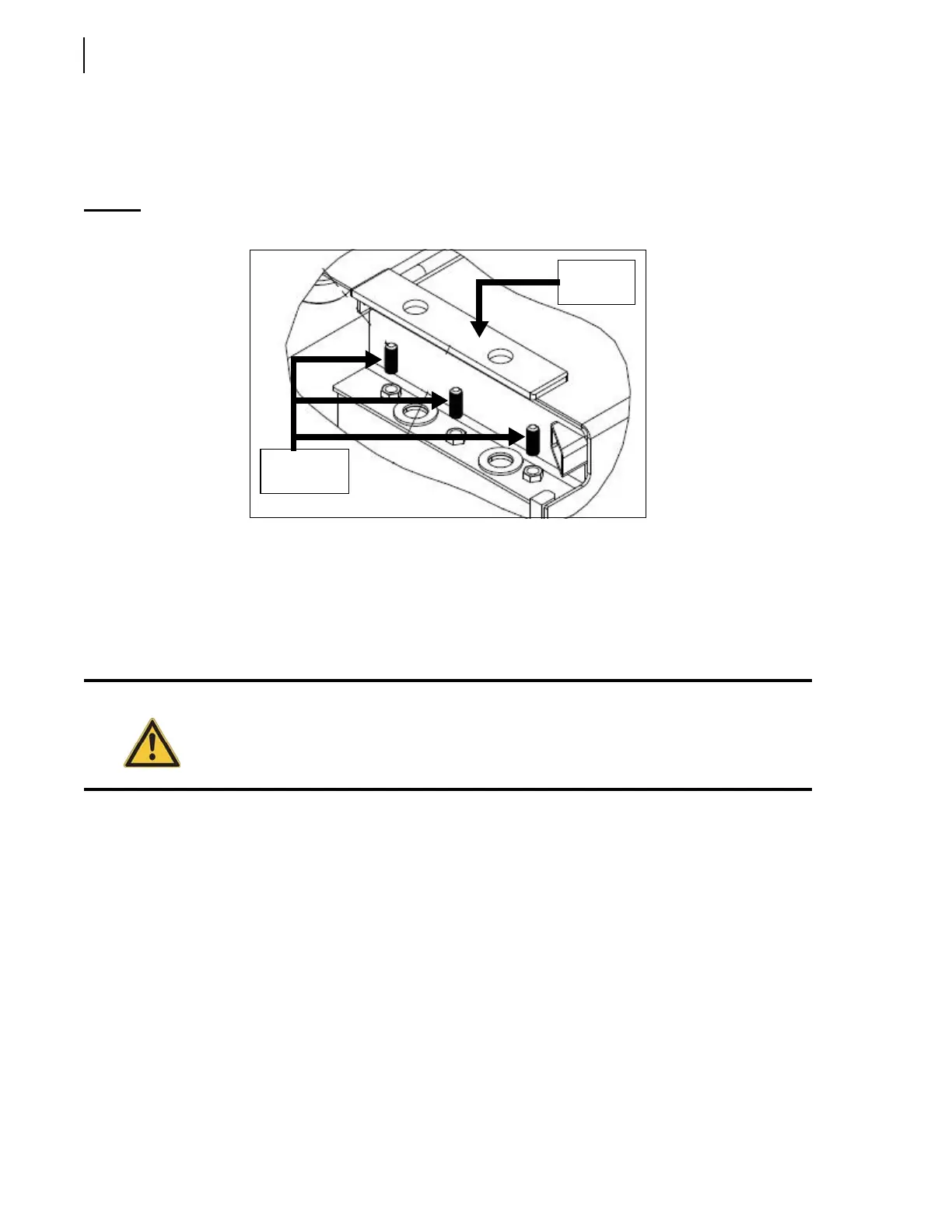

Figure 3-47
Adjustment screws and upper wear pad
Preparing for Upper Wear Pad Replacement
Make sure you go through the following steps:
1. Start the engine and engage the hydraulic pump.
2. Using the joystick, extend the automated arm to get better access to the hopper area.
3. Turn OFF the hydraulic pump and the engine.
4. Lock out and tag out the vehicle (see Locking Out and Tagging Out the Vehicle on page 12).
5. Remove both side rail shields (see Figure 3-48).
6 bolts are to be removed to take off the right-hand side rail shield.
5 bolts are to be removed to take off the left-hand side rail shield.
Danger!
Secure the area around the path of the automated arm when performing maintenance
or repair.
Wear pad
Adjustment
screws
