32 General Maintenance

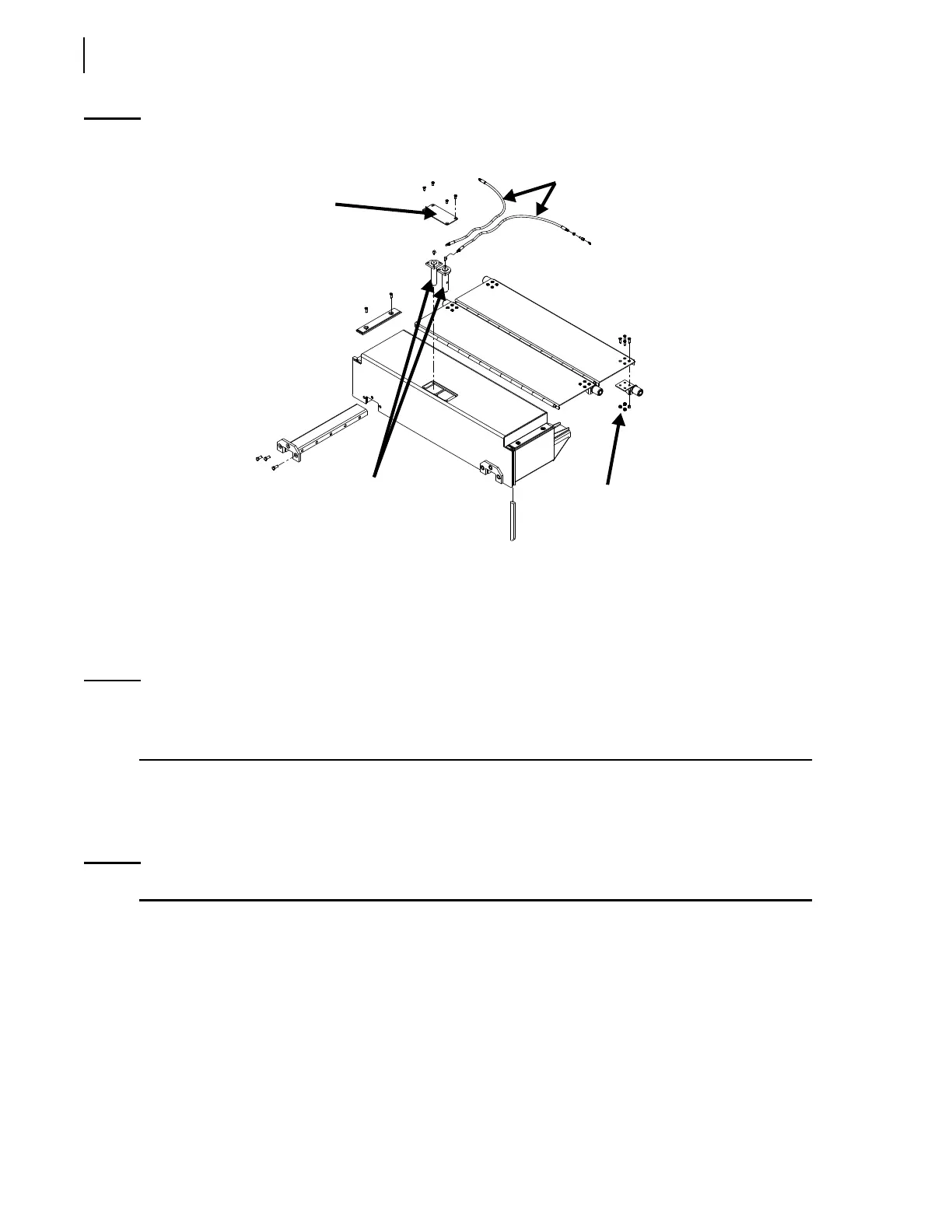

Figure 3-12
Removing pins and hoses
The cylinder pin top plate has 2 threaded holes to be used as a puller by inserting two ½ NC
bolts.
Removing the Packer Panel - Std. Units (Method A)
NOTE: There are 2 methods for preparing and removing the packer panel from a standard
A
UTOMIZER™ vehicle (Methods A and B). If you used Method A for the preparation of the
packer panel, you must then use Method A for the removal of the packer.
Once you have prepared the packer panel for removal, you can now proceed with the following
removing procedure.
1. Attach a suitable chain/cable to the packer panel and pull the panel towards the rear of the body.
NOTE: When pulling the follower panels, they must be properly supported.
2. If necessary, carry out the procedure for replacing floor guides (see Replacing Packer Wipers on
page 65).
3. Re-assemble in reverse order.
Cylinder
pins
Access cover
Roller
assembly
Greasing
hoses
