216 Lifting Arms
Right Hand™ Arm Chain Tension and Gripper
Position
Proper chain tension is essential for smooth operation of the standard or HD Right Hand™ arm on
A
UTOMIZER™ vehicles.
To adjust chain tension and gripper position:
1. Lower the gripper to its lowest position.
2. Measure between the edge of the gripper links on each side and the front of the arm main frame
(see Figure 10-11).
This measurement should be as close as possible to the targeted value shown in the table below
(next page), but more importantly, it should be the same on each side.

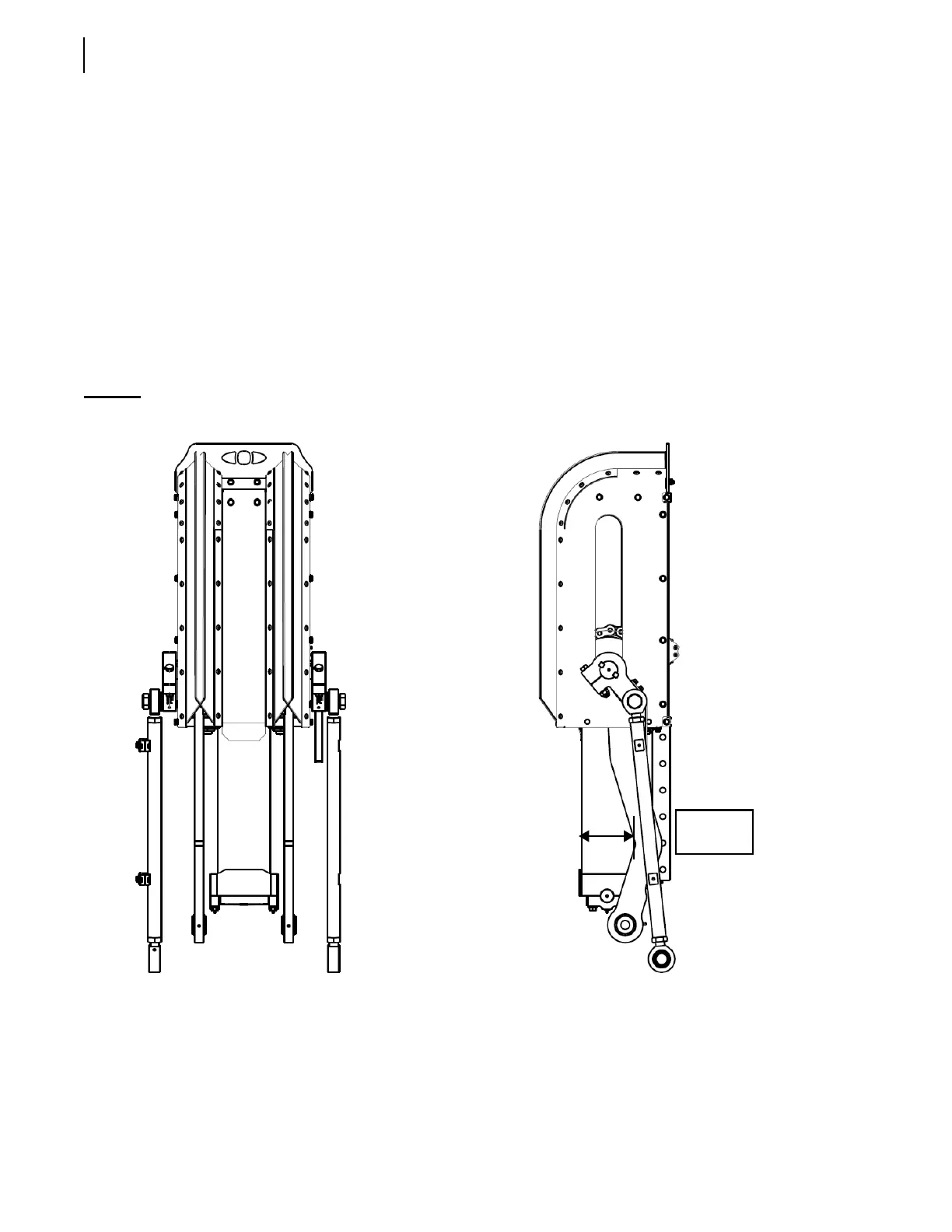

Figure 10-11
Target measure
3. Check the upper chains for any slack. Adjust the chains if necessary. To do so:
3 a. Fully retract the arm. Remove the access cover using a ½" socket.
3 b. On Right Hand
TM
arm model, remove the nut retainers at all 4 adjustment positions. On
Right Hand HD
TM
arm model, there are no nut retainers. Loosen all adjustment nuts using
a1-½” socket. DO NOT remove the nuts.
Target
measure
