186 Troubleshooting

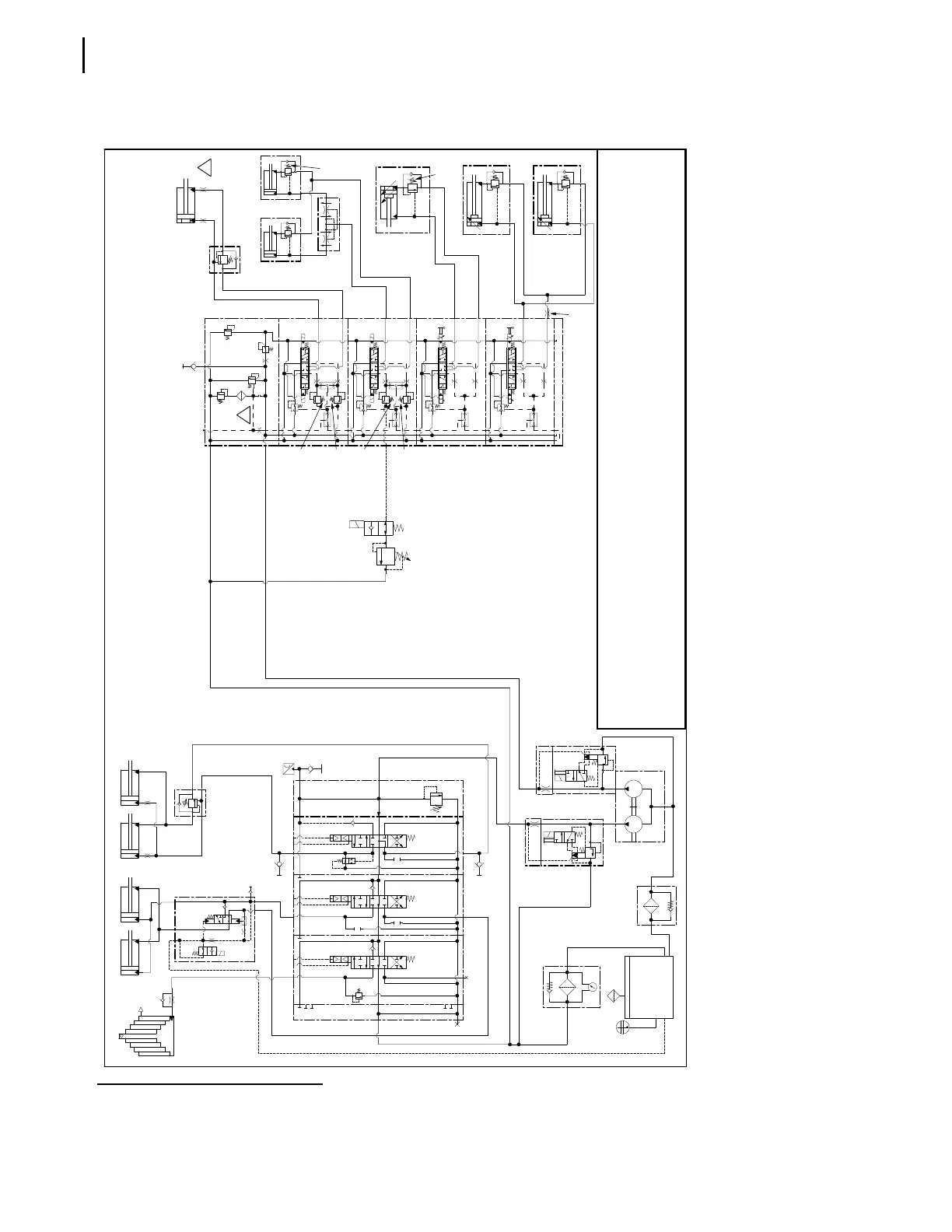

Main Hydraulic Schematic (2)
1
MATIÈRE / MATERIAL:
SELON STANDARD / ACCORDING TO:
PLATFORME / PLATFORM
CONCUS PAR / DESIGNED BY DESSINNÉ PAR / DRAFT BY DATEDATE
1
1
UNITÉS / UNITS:
POIDS / WEIGHT:
NO. RÉF/REF NO.
FINI DE SURFACE / SURFACE FINISH:
ÉPAISSEUR / THICKNESS - DIA:
DESCRIPTION PIÈCE NO. / PART NO. REVISION PAGE/SHEET
À MOINS D'INDICATIONS CONTRAIRES / UNLESS OTHERWISE SPECIFIED
ALL RIGHTS RESERVED, LABRIE ENVIROQUIP GROUP INC. ANY REPRODUCTION, ADAPTATION OR COMMUNICATION OF THIS
DOCUMENT, WITHOUT THE WRITTEN CONSENT OF LABRIE ENVIROQUIP GROUP INC., IS STRICTLY PROHIBITED.
TOUS DROITSSERVÉS, GROUPE ENVIROQUIP LABRIE INC. TOUTE REPRODUCTION, ADAPTATION OU COMMUNICATION DE CE
DOCUMENT, SANS LE CONSENTEMENT ÉCRIT DE GROUPE ENVIROQUIP LABRIE INC., EST STRICTEMENT INTERDITE.
REV
PAR / BY APPR
DATE
Hydraulic schematic, AU, pneumatic valve, packer
regen, crusher panel, RH HD 300 gal. dual pressure
R.Allard 11/10/2014
2843236
AUTOMIZER
11/10/2014
R.Allard
1$
1$
1$
1$
Gpm / Psi
',1,62
11/10/2014
0
1
2
R.Allard
R.Allard
R.Allard
restrictor added
new schematic
drawing correction, main relief pressure
P.Breton
P.Breton
P.Breton
11/19/2014
05/26/2015
©
©
TOLERANCES
PACKER
40 psi
5 psi
0.344"
0.234"
A
B
1700 psi
A
B
A
B
2000 psi single axle
3000 psi dual axle
0.219"
HOIST
B
A
B
A
1200 psi
1800 psi
B
A
2000 psi
2000 psi
B
A
P
T
G
2700 psi
650 psi
GRABBER
700 psi
ARM UP/DOWN
550 psi
CRUSHER PANEL
650 psi
ARM IN/OUT
0.078"
0.281"
TAILGATE
0.047" 0.047"
U1
D1
U2 D2
1200 psi
0.030"
0.020"
1
2
Hydraulic schematic, AU, pneumatic valve,
packer regen, crusher panel, RH HD 300 gal.,
dual pressure
1. For reference only. The hydraulic schematic specific to your truck, based on the body serial number, is found in the truck’s cab.
