84 General Maintenance

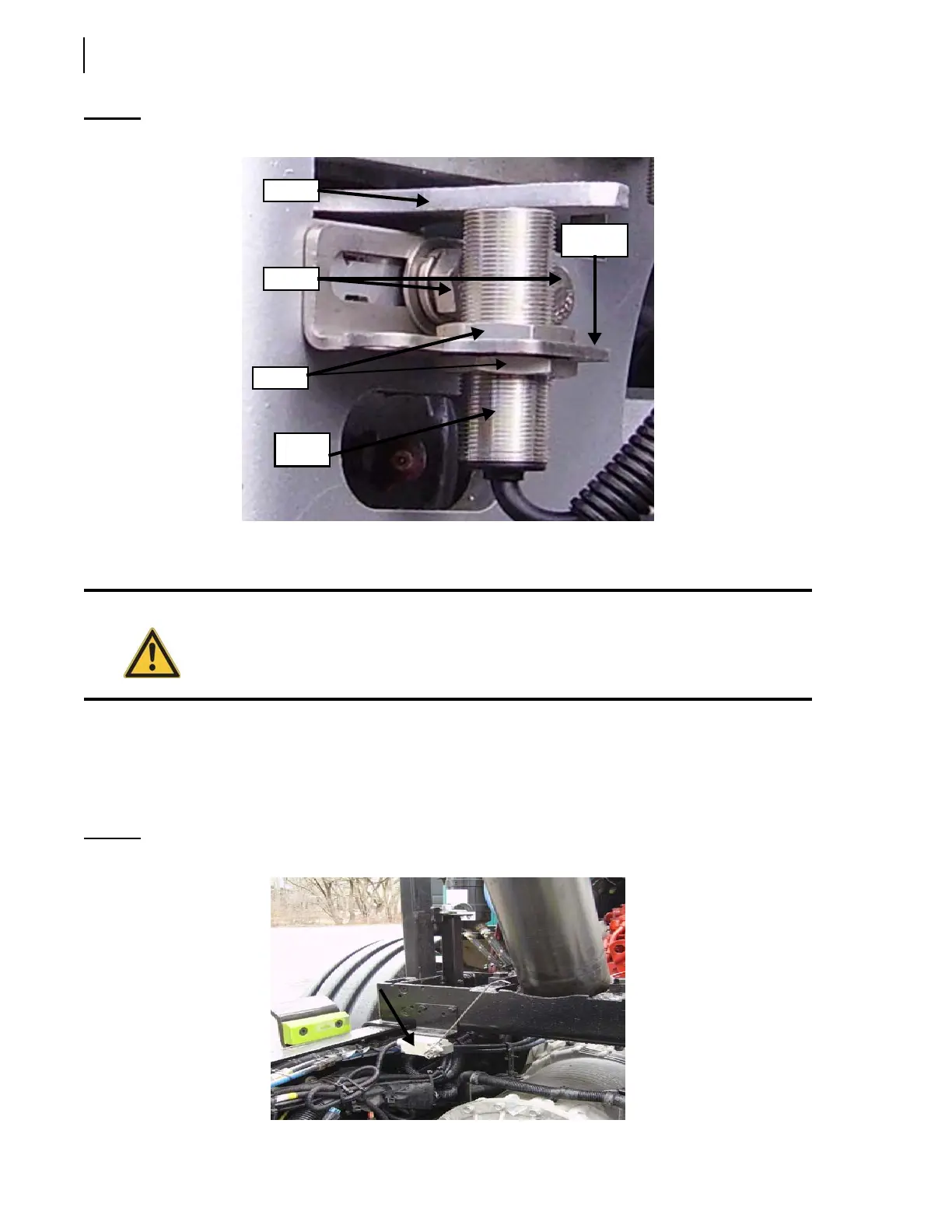

Figure 3-84
Proximity switch
Adjusting Body-Raised Limit Switch
A limit switch located on the vehicle chassis near the body hoist cylinder activates the backup alarm
and a warning buzzer, and turns on a warning light inside the cab as soon as the body is raised to a
certain height from the chassis. It can also be combined with different interlocks, such as air
suspension and tag axle interlocks. Adjust this limit switch accordingly if needed (see procedure
below).
Figure 3-85
Body-raised limit switch
Danger!
Always lock out and tag out the vehicle during inspection and maintenance (see Locking
Out and Tagging Out the Vehicle on page 12).
Plate
Nuts
Switch
Bracket
Bolts
