36 General Maintenance

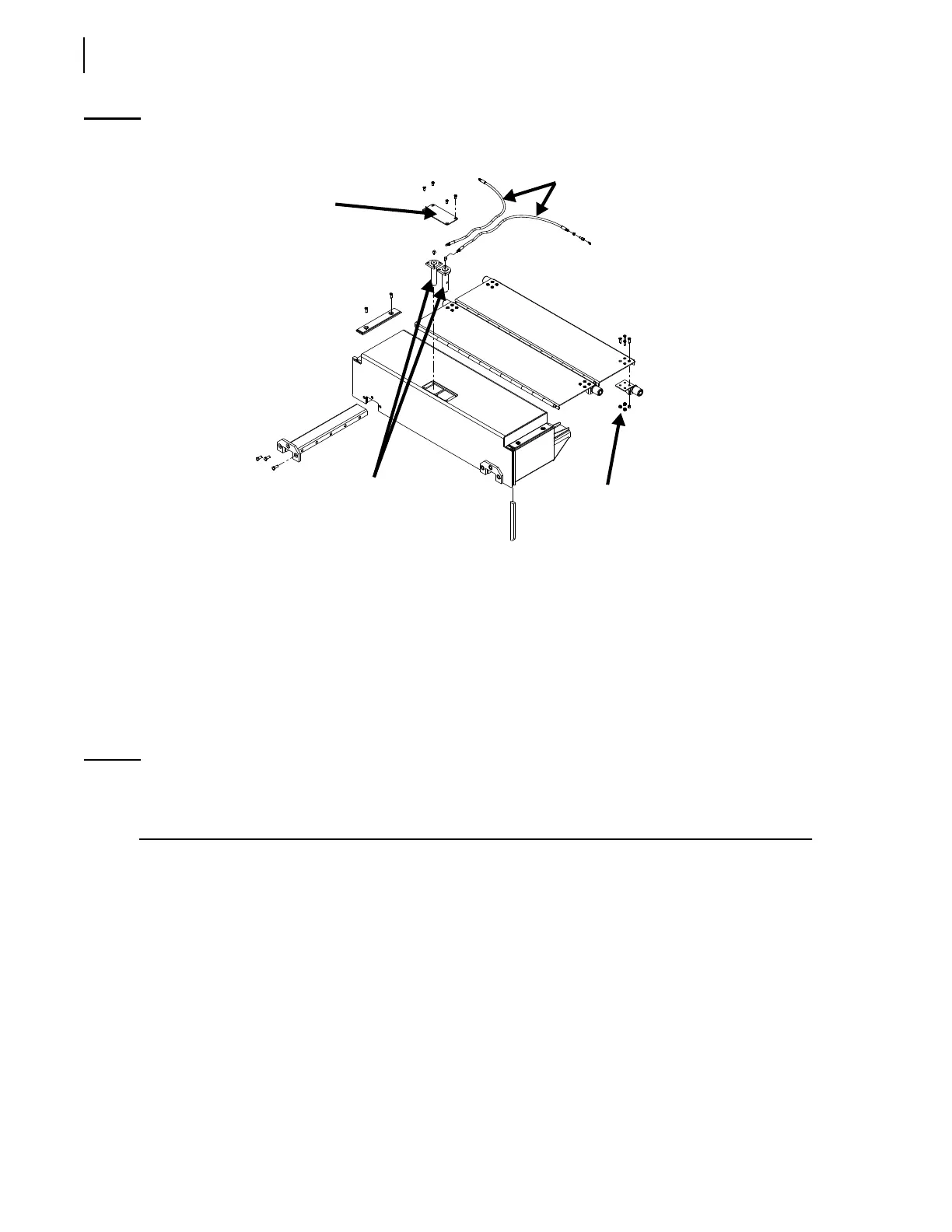

Figure 3-18
Removing pins and hoses
The cylinder pin top plate has 2 threaded holes to be used as a puller by inserting two ½ NC
bolts.
5. Start the engine and engage the hydraulic pump.
6. Retract both hydraulic cylinders.
7. Turn OFF the hydraulic pump and the engine.
Removing the Packer Panel - Std. Units (Method B)
NOTE: There are 2 methods for preparing and removing the packer panel from a standard
A
UTOMIZER™ vehicle (Methods A and B). If you used Method B for the preparation of the
packer panel, you must then use Method B for the removal of the packer.
Once the packer has been prepared, accessed and disconnected, you can remove it from the hopper.
To do so:
1. Remove all packer roller assemblies from the follower panels (see Figure 3-18).
2. Fold the follower panels over the packer (see Figure 3-33).
3. Weld the follower panels to the packer.
4. Attach the packer to a lifting device (fork lift, etc.) and lift it out of the hopper.
Cylinder
pins
Access cover
Roller
assembly
Greasing
hoses
