General Maintenance 77
Proximity and Limit Switches
Proximity and limit switches act as remote electrical on/off switches and must be adjusted properly.

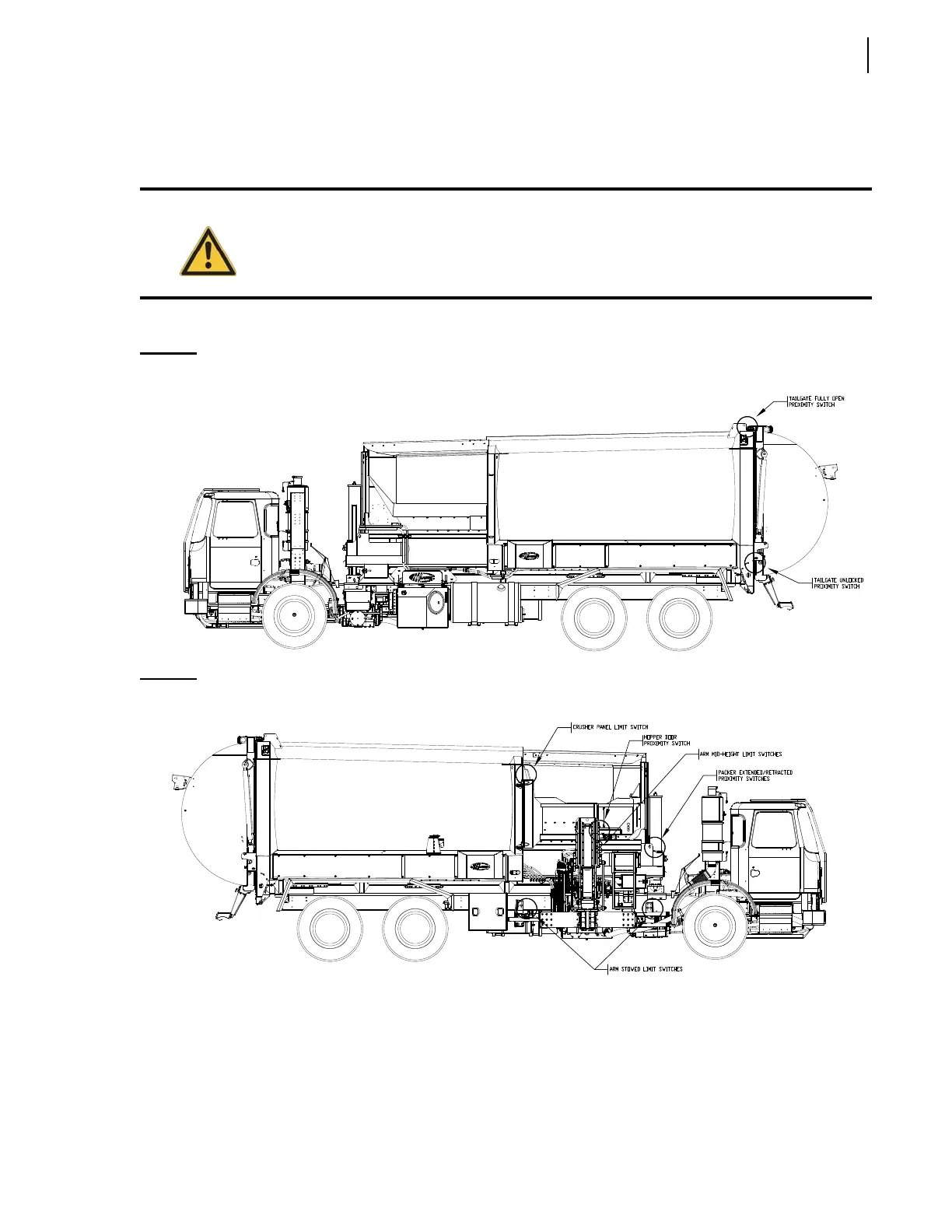

Figure 3-77 and Figure 3-78 show where the proximity/limit switches are located on the truck.
Figure 3-77
Switches on the street side of the body
Figure 3-78
Switches on the curb side of the body
Warning
Proximity and limit switches must function properly. Serious damage to the equipment,
injuries or death may occur if you operate the machinery with improperly adjusted
switches.
