48 General Maintenance

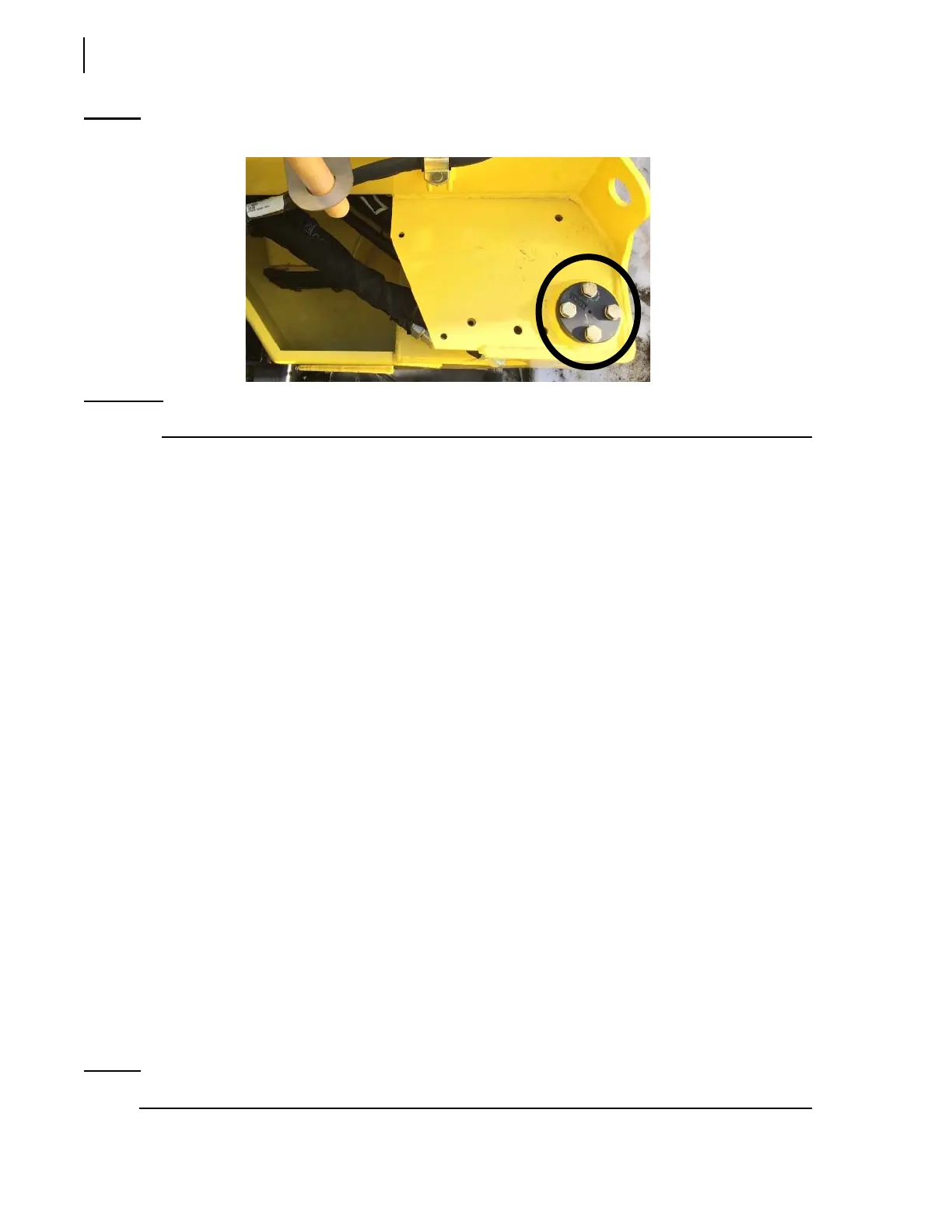

Figure 3-35
Bolts securing piston side of cylinder
IMPORTANT: Protect the proximity switch during removal of the cylinder.
7. Remove the proximity switch target and save it for the new cylinder.
8. Replace the faulty cylinder with a new one. If covered by warranty, contact LabriePlus for
replacement.
Finishing Up Packer Cylinder Replacement
To finish up cylinder replacement:
1. Reinstall the piston side pin and connect the hydraulic hoses.
2. Extend both cylinders.
3. Reinstall both rear cylinder pins.
4. Connect the greasing hoses to the cylinder pins.
5. Unfold the follower panels and reinstall the roller assemblies.
6. Grease the cylinder pins and check for proper packer operation (see Packer Lubrication Points (1)
on page 113).
7. Readjust the proximity switch if need be (for proximity switch readjustment, see Adjusting Packer
Extend Proximity Switch on page 79).
Sliding Shoes
The packer guiding system is made of 2 different types of steel: sliding shoes are made of a softer steel
type to wear out before the floor guides.
To keep the packer in good working order and prevent unnecessary down time, replace sliding shoes
and wear pads (see page 56) before extensive wear or damage can be seen on the hopper floor and
walls.
After continuous use over an extended period of time, floor guides may need to be replaced.
NOTE: It is not necessary to remove the packer to perform this procedure.
