Hydraulic System
125
13 b.

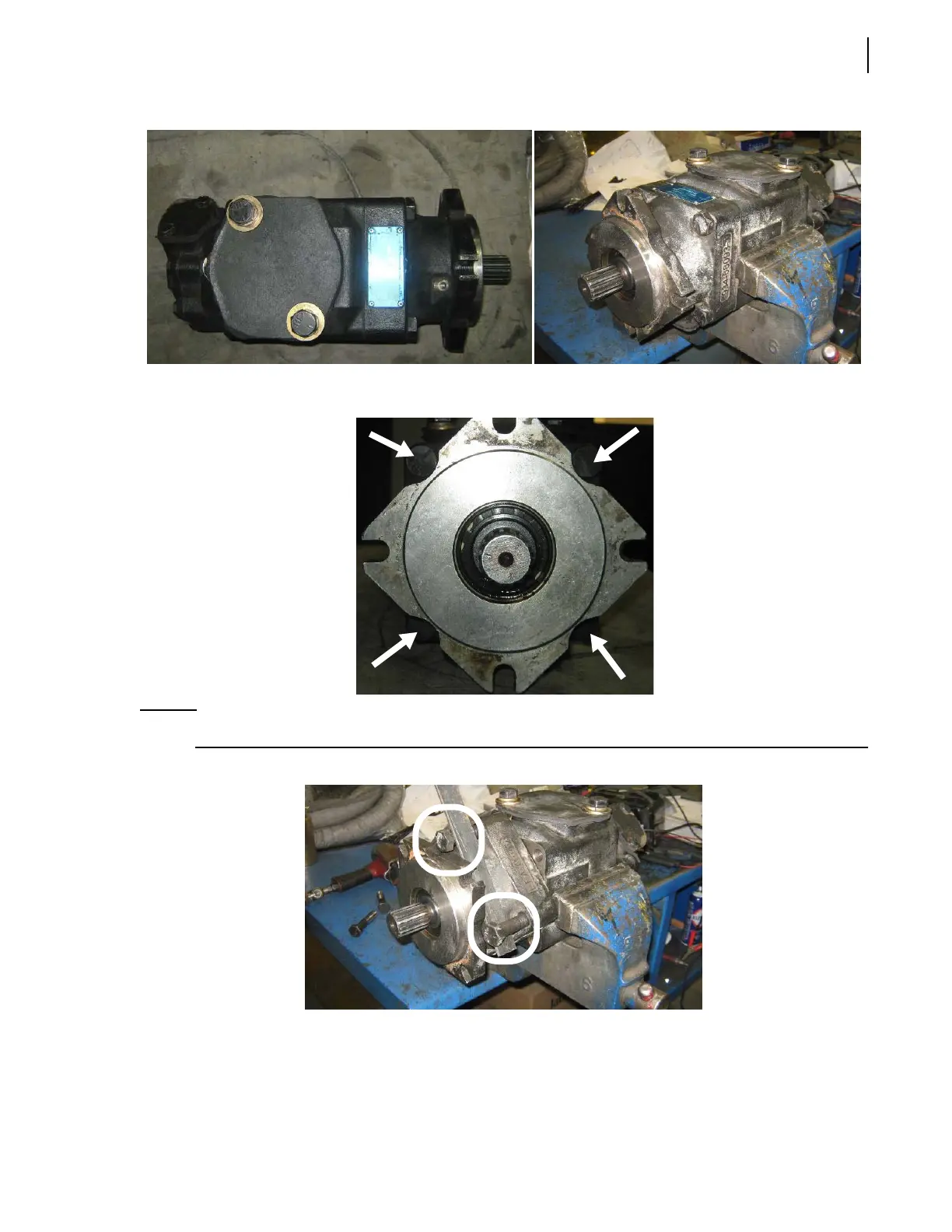

Remove all 4
retaining bolts that hold the mounting cap in place.
N
OTE
:
You may leave two retaining bolts partially unscrewed to facilitate rotation with a metallic bar.
13 c.
Rotate the mounting cap accordingly.
134
136
