138
Hydraulic System

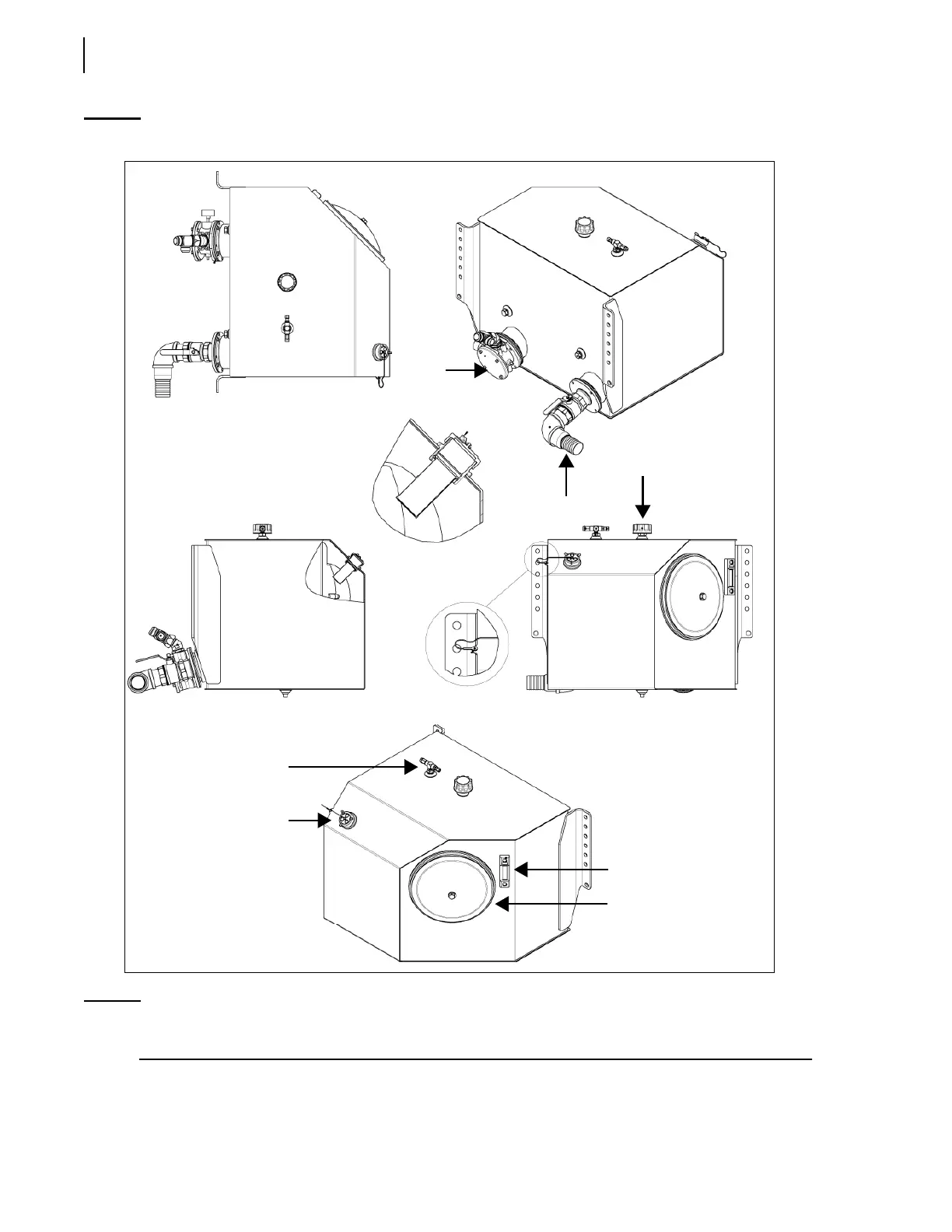

Figure 5-15
Steel hydraulic tank
N
OTE
:
The illustration above shows the model of hydraulic oil tank most often installed on our
trucks. However, other models exist and your truck may be equipped with one of these.
Filter
Suction
Breather
cap
Oil temp./level gauge
Access panel
Filler cap
Safety valve
147
149
