8. Firmware Update MX-FR Series Modular Matrix Frames – User's Manual 152

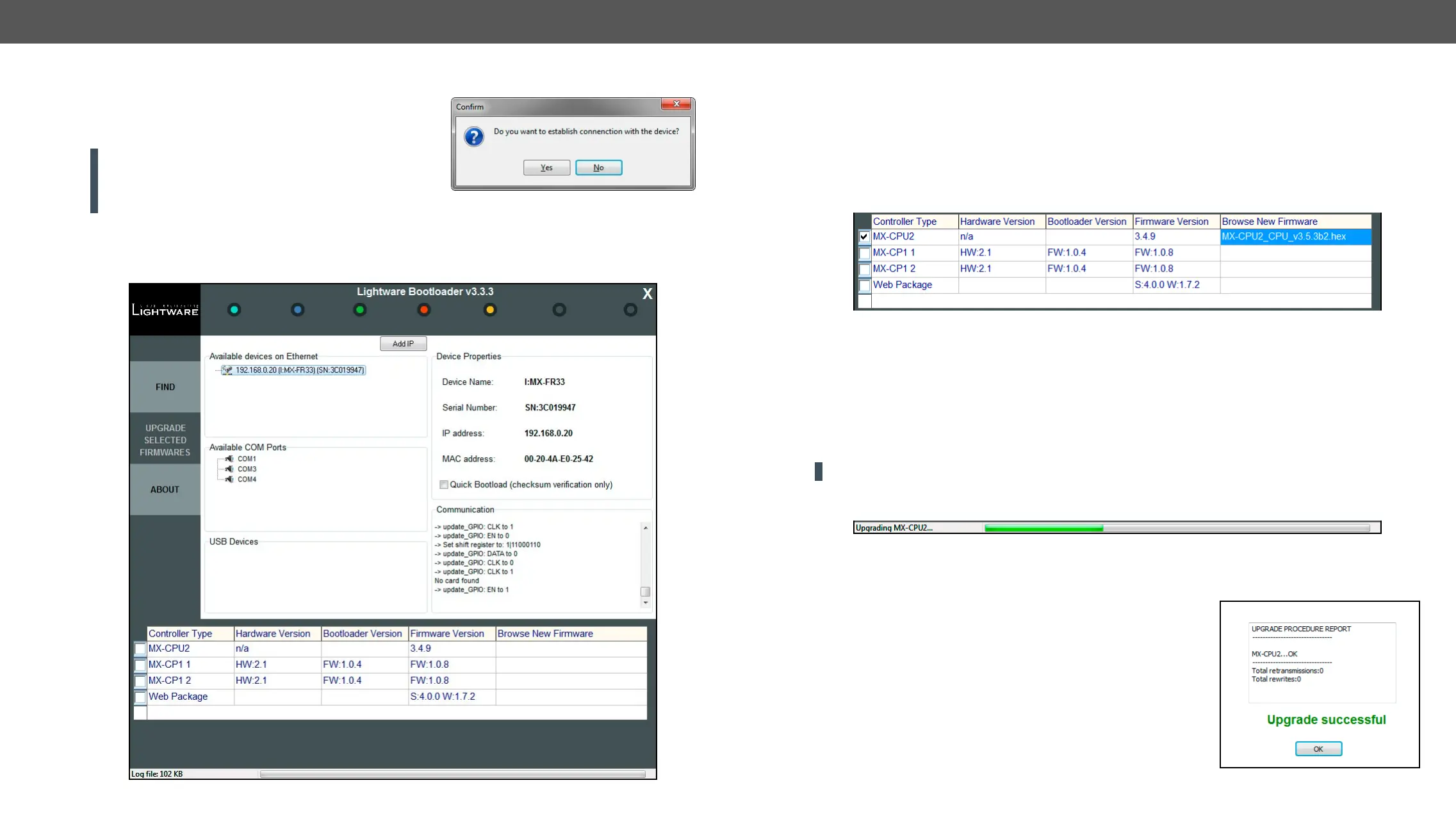

Step 6. Establishing the connection with the device.
Double click on the IP address, then click on Yes to establish
connection with the matrix router. It will take 10-15 seconds
to get all the information from the router.
ATTENTION! The bootloader application will restart the
router when it establishes the connection. All connected
DVI sources and monitors will act as if the router was
powered down. The matrix beeps when it is rebooted.
Step 7.
After the connection is made, the device properties and the installed controller modules are displayed.
number of the MX-CP modules depends on the matrix frame size. These modules must have the same
website.
Step 8.
Click the corresponding cell in the Browse New Firmware
Step 9.
Click Upgrade selected rmwares Yes button the
checksum was correct, which makes the bootloader faster.
ATTENTION! The reprogramming may take 3-8 minutes per controller.
A progress bar will show the current state of the reprogramming on the bottom of the window. In the case of
certain boards the erasing process is run before the programming, so the progress bar runs up twice.
closes the connection, and the router restarts.
Step 10. Done!
If the update was successful, a window pops up. Now you can close
the application, or you can select another matrix router to update.
After closing the bootloader application, switch the updated devices
off and then on. Now the router is ready to be used with the new
To Next Page
