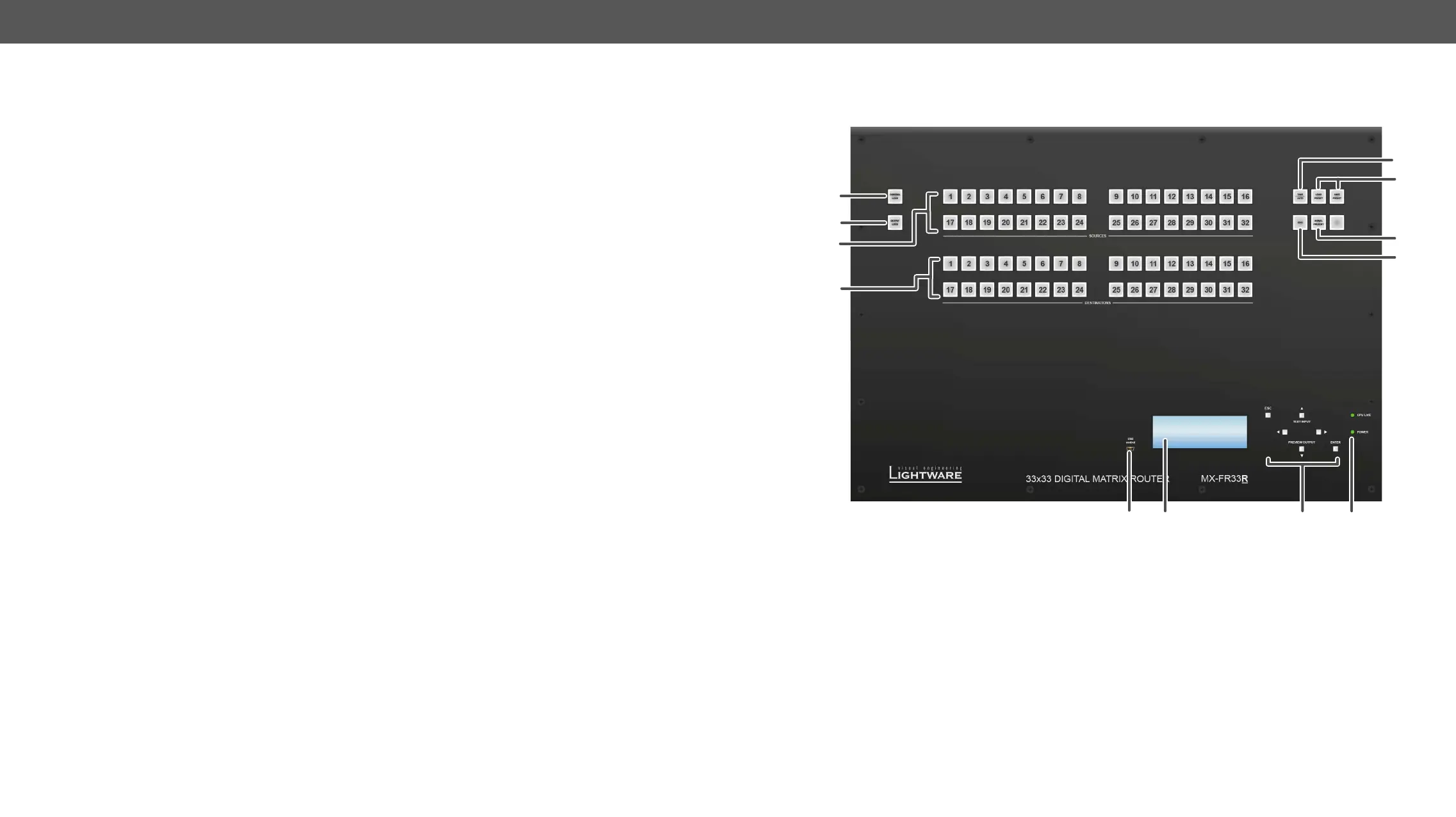

MX-FR33R
Front View
1
2
5
6
w
e
4
3
q
9
7
8
1
USB control USB connection for Lightware Device Controller software.
2
Menu display Displays status information and menu operation.
3
Menu navigation Arrows, escape, and enter buttons for menu navigation.
4
Status LEDs CPU live LED blinks to indicate normal operation. Power LED
lights green when the router is powered on.
5
Control lock 
is illuminated, all operations on front panel are prohibited.
6
Output lock Locks one (or more) outputs. Inhibits accidental input changing
on protected output.
7
Source buttons Source buttons can be used to select an input or preset or to

8
Destination buttons Destination buttons can be used to select an output, or view

9
Take / Auto Displays the actual switching mode (TAKE or AUTOTAKE).
Long press toggles the switching mode, short press executes
switching in TAKE mode.
q
Preset buttons Load preset: apply a previously saved crosspoint preset
from one of the preset memories. Save preset: stores actual
crosspoint state, in one of the preset memories.
w
EDID mode Switches the Menu display to EDID menu allowing EDID switch,
EDID save etc.
e
Signal present Displays live sources and attached sinks on source and
destination buttons.




