2. Installation MX-FR Series Modular Matrix Frames – User's Manual 9
2
Installation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options.
ç 
ç 
ç 
ç 

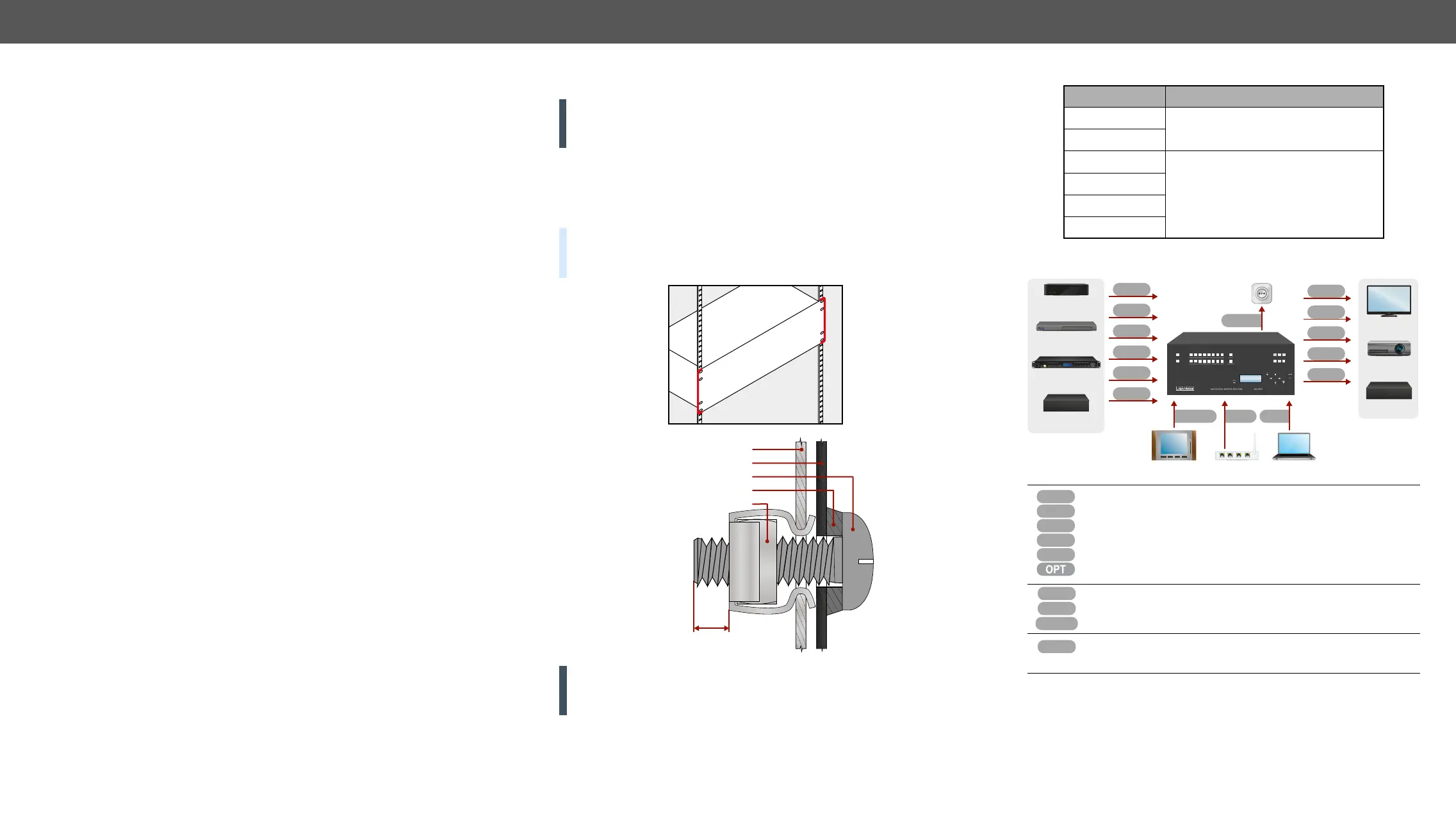

Mounting Options
For the correct ventilation and to avoid overheating ensure enough
free space around the appliance. Do not cover the appliance, let
the ventilation holes free and never block or bypass the fans.
The front rack ears allow to mount the device as a standard rack unit

The dimensions of the frames can be found in the Mechanical
Drawings section.
TIPS AND TRICKS: Pay attention to the rear side of the matrix! Let
          
board without moving the matrix!
ATTENTION! Fix the frame to the rack rail by applying all mounting
holes. Choose properly sized screws for mounting. Keep minimum
two threads left after the nut screw.
threads
(2 or more)
rack rail
rack shelf mounting ear
rack screw
flat washer
cage nut
Connecting Steps


recommended.

control options.
Power
Connect the power cord to the AC power socket and to the
matrix. Switch it on and all the connected devices.
          
Controller software see the Software Control – Lightware Device
Controller Software section.
          
 section.
Frame type The number of the mounting holes
MX-FR9
2x4 pcs.
MX-FR17
MX-FR33L
2x6 pcs.
MX-FR33R
MX-FR65R
MX-FR80R
CONTROL
LOCK
OUTPUT
LOCK
1
1
2
2
3 4 5 6 7 8 9
3 4 5 6 7 8 9
TAKE
AUTO
SAVE
PRESET
LOAD
PRESET
SOURCES
TEST INPUT
PREVIEW OUTPUT
DESTINATIONS
POWER
USB
CONTROL
ESC
MX-FR9
9x9 DIGITAL MATRIX ROUTER
EDID
SIGNAL
PRESENT
DVI
HDMI
CATx
VGA
Audio
OPT
RS-232
Power
LAN USB
DVI
HDMI
CATx
Audio
OPT
LCD Display
Projector
Laptop
Computer
Blu-ray Player
Media Player
Transmitter
Local Control Ethernet

 


Receiver
CATx
DVI
HDMI
VGA
Audio
LAN
RS-232
USB




