Lightware MX-FR Series

1. Introduction MX-FR Series Modular Matrix Frames – User's Manual 6
1
Introduction


important features in the below listed sections:
ç 
ç 
ç 
ç 

1

2
Supplied with matrix routers with redundant PSU (not supplied with
MX-FR33L).
3

4
Default accessory for boards with TPS2 ports and PoE-compatible
remote power feature.
5
Only in the case of MX-FR33R matrix.
6
Default accessory for boards with 5-pole Phoenix Analog Audio
ports.

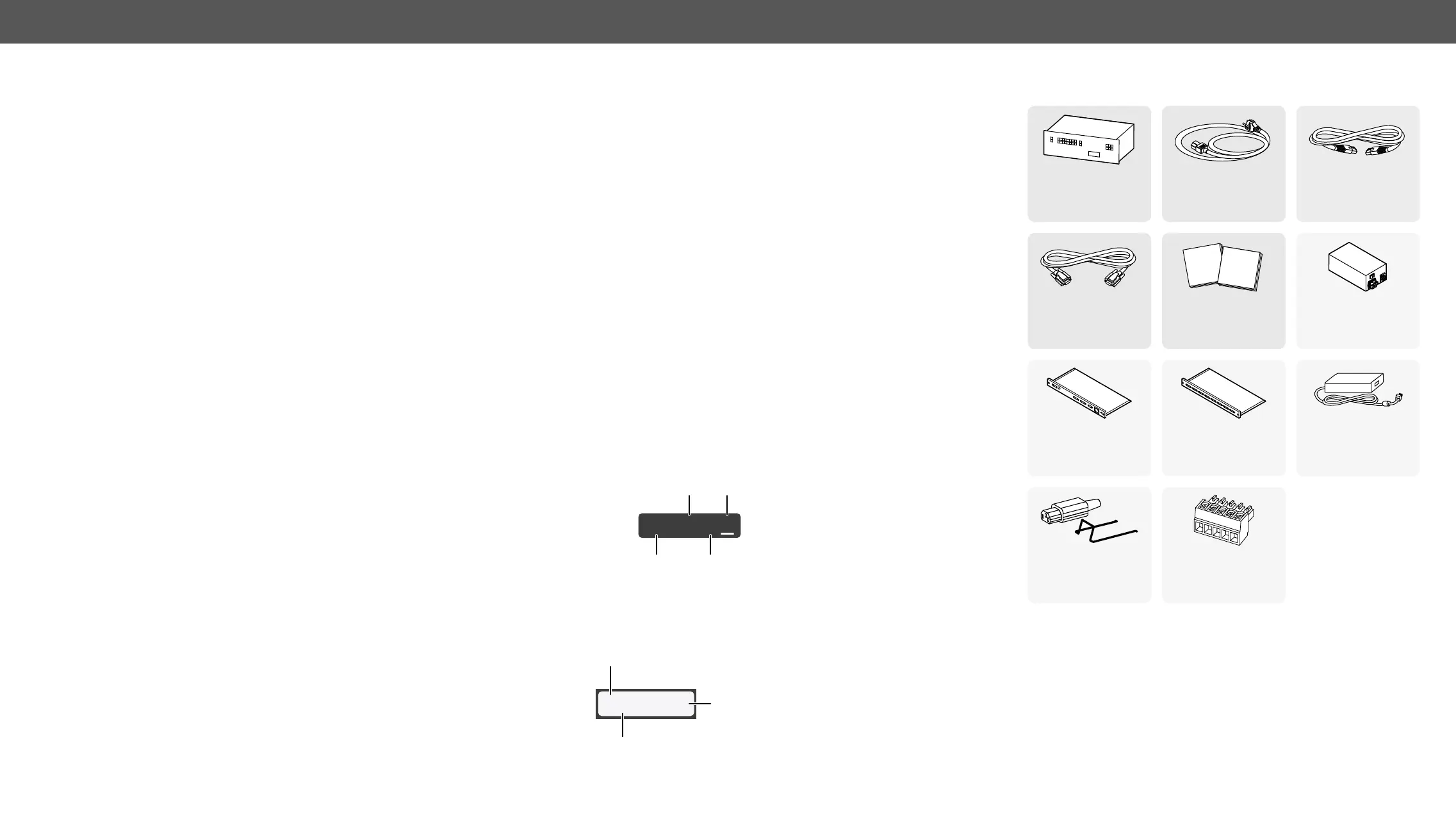

Matrix Router Frame
with Rack Mounting
Ears
IEC Power Cable
1
LAN Cross-link Cable,
CAT5e type, 3 m length
RS-232 Straight
Serial Cable


Safety and
Warranty
Info
Quick
Start
Guide
Power Supply Unit(s)
2
MX-CPU2 Board
3
Router Input and
Output Board(s)
3
48V External PSU for
PoE Feature
4
Mounting Power Plug
with Fixing Ears (2x)
5
Phoenix Combicon
5-pole Connector
6
Description
Thank you for choosing Lightware matrix routers. The hybrid modular
matrix routers are capable of routing DVI or HDMI signals in a scalable
         
outputs.
These products are designed according to our well known philosophy

        
compatibility, more precise switching, control, troubleshooting and
signal measurement.

        
signal types and transport media options according to their system
requirements thanks to our Hybrid Modular Design.
The future-proofed matrix backplanes are able to switch to 12.8
Gigabit per second data rates allowing transportation of the next
generation HDMI, 4K x 2K, 3D and DisplayPort 1.1 video signals. All
Input boards e.g. DVI-I, 3G-SDI, etc. convert their respective Input
signals to the widest and broadest standard for all existing video
signals – uncompressed HDMI (including embedded audio). Output

output e.g. Fiber and Twisted Pair amongst others.
Model Denomination
About the Serial Number
Lightware devices contain a label indicating the unique serial number
of the product. The structure is the following:
MX-FR80R
Redundant Power Supply Unit
Frame
Matrix 80x inputs and 80x outputs
7A000941
Year of the manufacturing (3-9, A-Y):
7=2017, 8=2018, 9=2019, A=2020, etc...
6-digit running sequence number
Month of the manufacturing (1-9, A-C):
1=January, 2=February, ..., C=December




