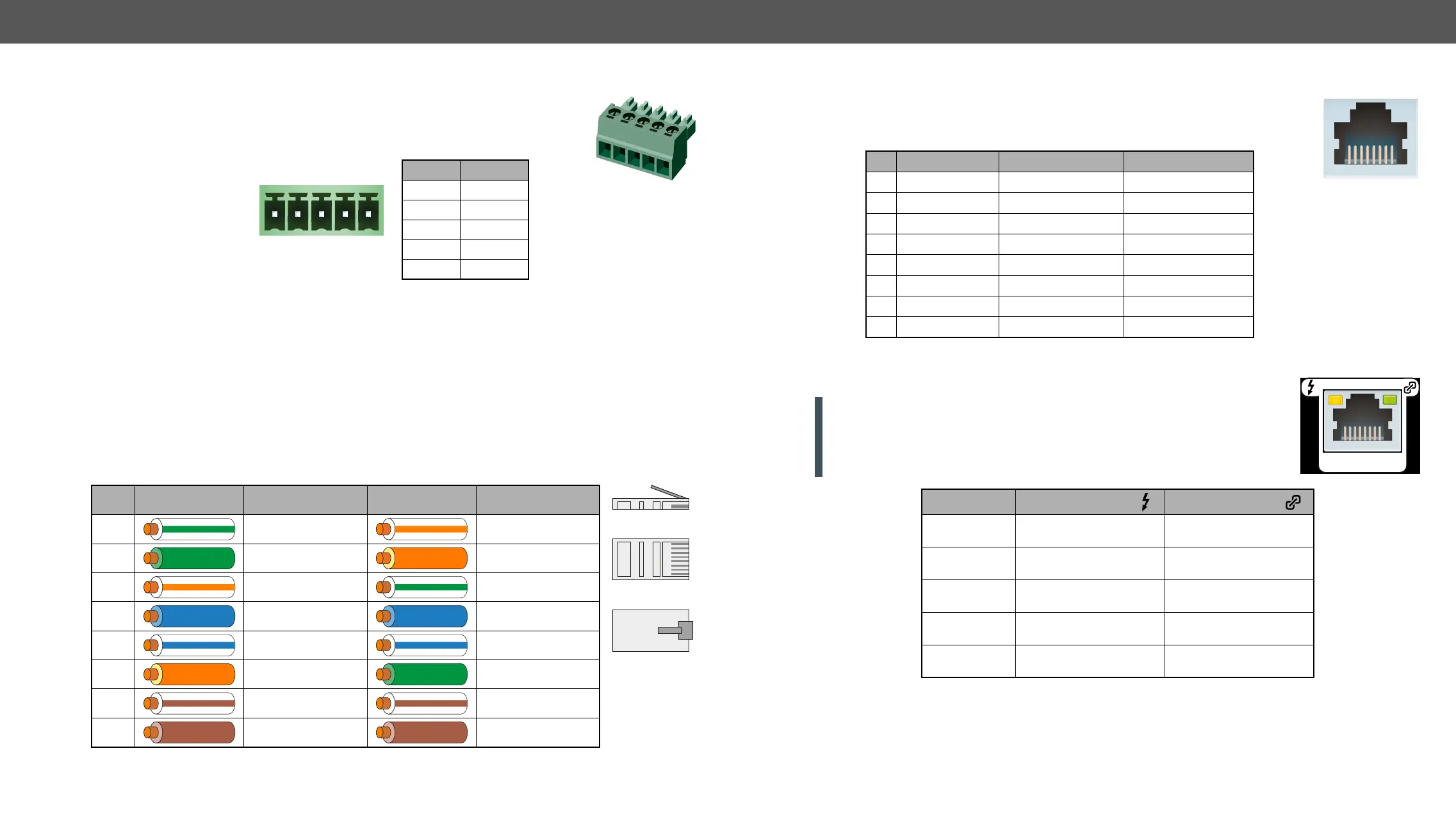

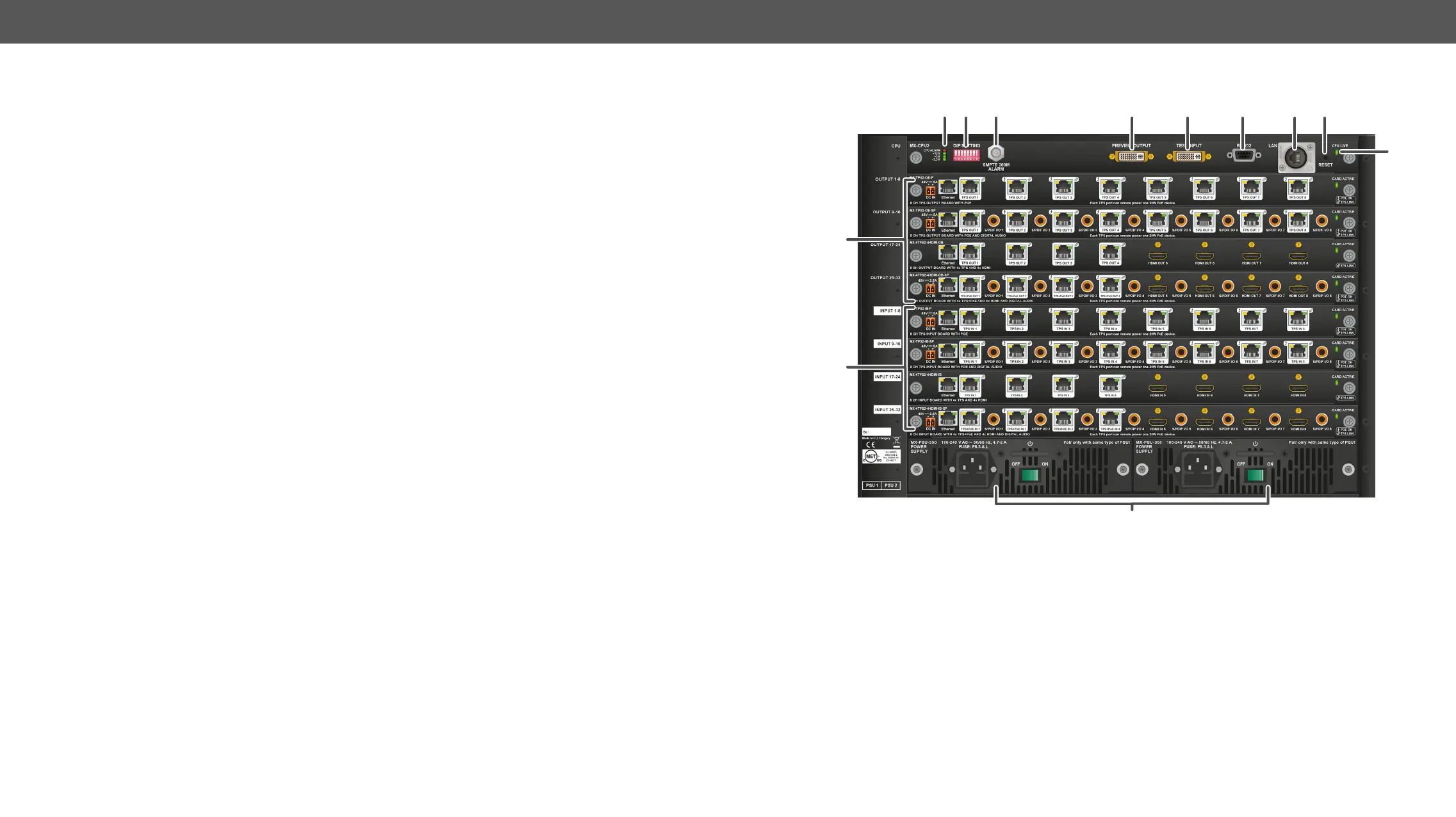

3. Product Overview MX-FR Series Modular Matrix Frames – User's Manual 24
Symmetrical Analog Stereo Audio
            
             
            
together.
Unbalanced audio signals can be connected as well. For asymmetrical output, connect only + and ground.
For asymmetrical input connect + and ground to the source and connect – to the ground.
Compatible Plug Type

Please see the short guide about the audio cable wiring in the  section.
RJ45 Connectors and Twisted Pair Cables
The Wiring of Twisted Pair Cables

standards.
Pin nr. Signal
1 Left +
2 Left -
3 Ground
4 Right -
5 Right +
1 2 3 4 5
Pin TIA/EIA T568 A Color and name TIA/EIA T568 B Color and name
1
 
2
green solid orange solid
3
 
4
blue solid blue solid
5
 
6
orange solid green solid
7
 
8
brown solid brown solid
1
8
Top
8
1
Bottom
Side
MX-TP Input and Output Ports


TP-IB and MX-DVI-TP-OB but available on MX-DVI-TP-IB+ and MX-DVI-TP-OB+ boards.
MX-TPS Inputs and Outputs

ATTENTION! 
LAN cable to the TPS connectors. If the port of the TPS board was set to AUTO
mode, it is able to recognize the LAN cable and swap to Ethernet fallback mode
automatically. In this case, the port works as an Ethernet switch, but TPS CAT
cable is not allowed to connect to the Ethernet port!
18
Pin VIDEO IN/OUT DDC IN DDC OUT
1 TMDS Data0+ CEC (no conn.) CEC (no conn.)
2 TMDS Data0- Hot Plug Detect (in) Hot Plug Detect (out)
3 TMDS Clock+ RS-232 RX RS-232 RX
4 TMDS Data1+ DDC CLK DDC CLK
5 TMDS Data1- +12V (out) +12V (out)
6 TMDS Clock- RS-232 TX RS-232 TX
7 TMDS Data2+ DDC SDA DDC SDA
8 TMDS Data2- GND GND
TPS IN 2
18
LED1, Amber LED2, Green
OFF
Remote power is
disabled
No TPS link
Blinking


Low power mode,
RS-232 and Ethernet
Blinking


Low power mode,
only RS-232
Blinking

 Ethernet fallback mode
ON
Remote power is
enabled
TPS link is active
