Lightware MX-FR Series

11. Appendix MX-FR Series Modular Matrix Frames – User's Manual 145

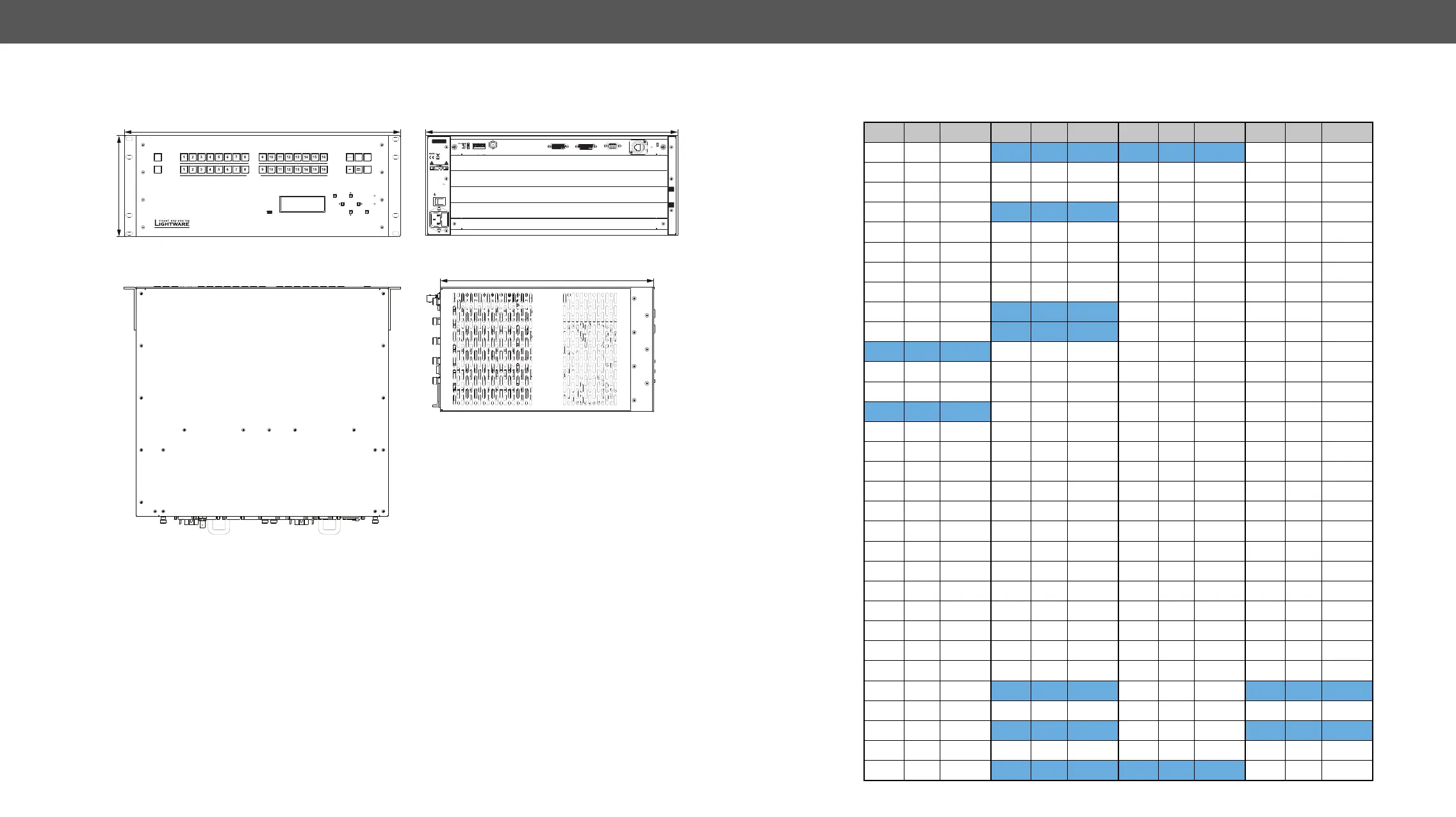

MX-FR17 and MX-FR9
302
Aop view Left view
482 440
176.5
Front view Rear view
LOCK
OUTPUT
CONTROL
LOCK
TAKE
AUTO
SAVE
PRESET
LOAD
PRESET
17 17 DIGITAL MATRIX ROUTERx
MX-FR17
ESC
CPU LIVE
POWER
USB
control
ENTER
SOURCES
DESTINATIONS
TEST INPUT
PREVIEW OUTPUT
MX-CPU2
DIP SETTING TEST INPUT
LAN
CPU LIVE
RESET
CPUALARM
+5 V
+12 V
+3.3 V
ALARM
SMPTE 269M
PREVIEW OUTPUT
RS-232
CPU
OUT
1-8
OUT
9-16
IN
IN
1-8
9-16
Sn:
Made in EU, Hungary
RISKOF ELECTRIC SHOCK
DONOT OPEN
CAUTION
100-240 V AC
50/60 Hz, 2.5-1.1A
FUSE:
F 3.15AL
POWER
ASCII Table
The most common used characters are highlighted with blue.
Dec  Char Dec  Char Dec  Char Dec  Char
0 00 [NUL] 32 20  64 40 @ 96 60 `
1 01 [SOH] 33 21 ! 65 41 A 97 61 a
2 02 [STX] 34 22  66 42 B 98 62 b
3 03 [ETX] 35 23 # 67 43 C 99 63 c
4 04 [EOT] 36 24 $ 68 44 D 100 64 d
5 05  37 25 % 69 45 E 101 65 e
6 06 [ACK] 38 26 & 70 46 F 102 66 f
7 07 [BEL] 39 27 ' 71 47 G 103 67 g
8 08 [BS] 40 28  72 48  104 68 h
9 09 [TAB] 41 29  73 49 I 105 69 i
10 0A [LF] 42 2A * 74 4A J 106 6A j
11 0B [VT] 43 2B + 75 4B K 107 6B k
12 0C [FF] 44 2C , 76 4C L 108 6C l
13 0D [CR] 45 2D - 77 4D M 109 6D m
14 0E [SOH] 46 2E . 78 4E N 110 6E n
15 0F [SI] 47 2F / 79 4F O 111 6F o
16 10 [DLE] 48 30 0 80 50 P 112 70 p
17 11 [DC1] 49 31 1 81 51  113 71 q
18 12 [DC2] 50 32 2 82 52 R 114 72 r
19 13 [DC3] 51 33 3 83 53 S 115 73 s
20 14 [DC4] 52 34 4 84 54 T 116 74 t
21 15 [NAK] 53 35 5 85 55 U 117 75 u
22 16 [SYN] 54 36 6 86 56 V 118 76 v
23 17 [ETB] 55 37 7 87 57 W 119 77 w
24 18 [CAN] 56 38 8 88 58 X 120 78 
25 19 [EM] 57 39 9 89 59 Y 121 79 y
26 1A [SUB] 58 3A : 90 5A Z 122 7A z
27 1B [ESC] 59 3B ; 91 5B [ 123 7B {
28 1C [FS] 60 3C < 92 5C \ 124 7C |
29 1D [GS] 61 3D = 93 5D  125 7D }
30 1E [RS] 62 3E > 94 5E ^ 126 7E ~
31 1F [US] 63 3F ? 95 5F _ 127 7F 




