3. Product Overview MX-FR Series Modular Matrix Frames – User's Manual 15
MX-FR80R and MX-FR65R

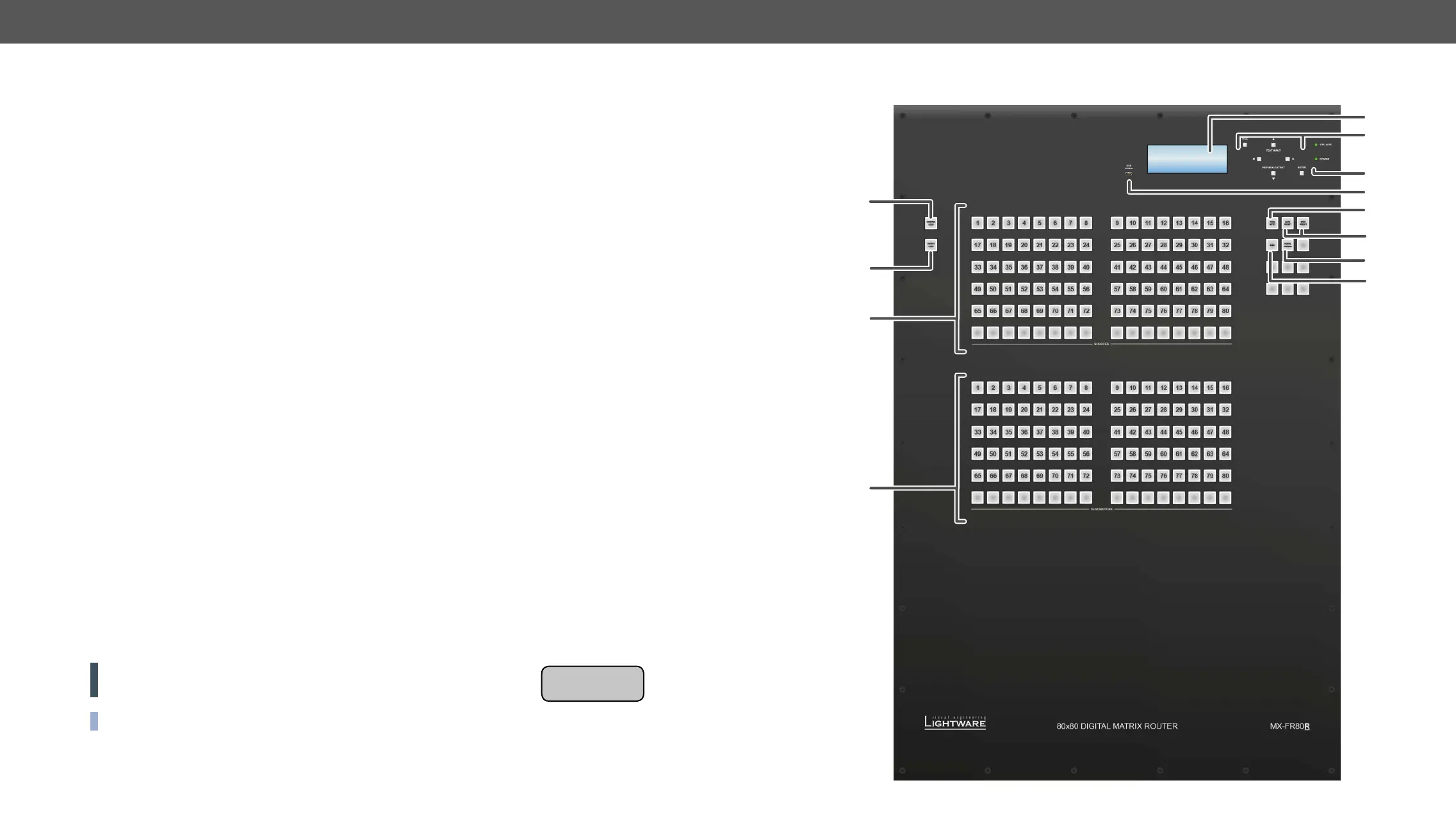

Front View
ATTENTION! In the case of the MX-FR65R matrix the attached label can be
seen on the front panel.
INFO: The unlabeled buttons are disabled and reserved for future developments.
5
9
q
8
7
4
1
6
2
w
r
3
1
Menu display Displays status information and menu operation.
2
Menu navigation Up, down, left, right, escape, and enter buttons for menu
navigation.
3
Status LEDs CPU live LED blinks to indicate normal operation. Power LED
lights green when the router is powered on.
4
USB control USB connection for Lightware Device Controller Software.
5
Take / Auto Displays the actual switching mode of the router (TAKE or
AUTOTAKE). Long press toggles the switching mode, short
press executes switching in TAKE mode.
6
Preset buttons Load preset: apply a previously saved crosspoint preset from
one of the preset memories.
Save preset: stores actual crosspoint state, in one of the preset
memories.
7
Signal present Displays live sources and attached sinks on source and
destination buttons.
8
EDID mode Switches the Menu display to EDID menu allowing EDID switch,
EDID save etc.
9
Control lock         
illuminated, all operations on front panel are prohibited.
q
Output lock Locks and protects one (or more) outputs. Inhibits accidental
input changing on protected output.
w
Source buttons Source buttons have three functions: to select an input, to

TAKE mode).
e
Destination buttons Destination buttons have two functions: to select an output, or

Congured as
MX-FR65R




