10. Technologies MX-FR Series Modular Matrix Frames – User's Manual 129
RS-232 Command Transmission
Lightware Hybrid Modular Matrix system provides bidirectional RS-232
signal transmission at remote endpoints. The feature is implemented
on certain boards like .... transmitters and receivers. The desired third-
endpoints. No additional cable is required as the commands are sent
matrix.
Lightware Hybrid Modular Matrix system provides easy interfacing of
RS-232 control commands for devices at remote endpoints through
IB, MX-HDMI-OPT-OB, and MX-TPS-IB, MX-TPS-OB), transmitters and
receivers. The desired application (e.g. control system, touch screen)
sends and receives short RS-232 control commands directly from
the far endpoints. The commands are sent out directly from the far
endpoints independently on each optical or TPS port over the same
additional cable is required for system control.

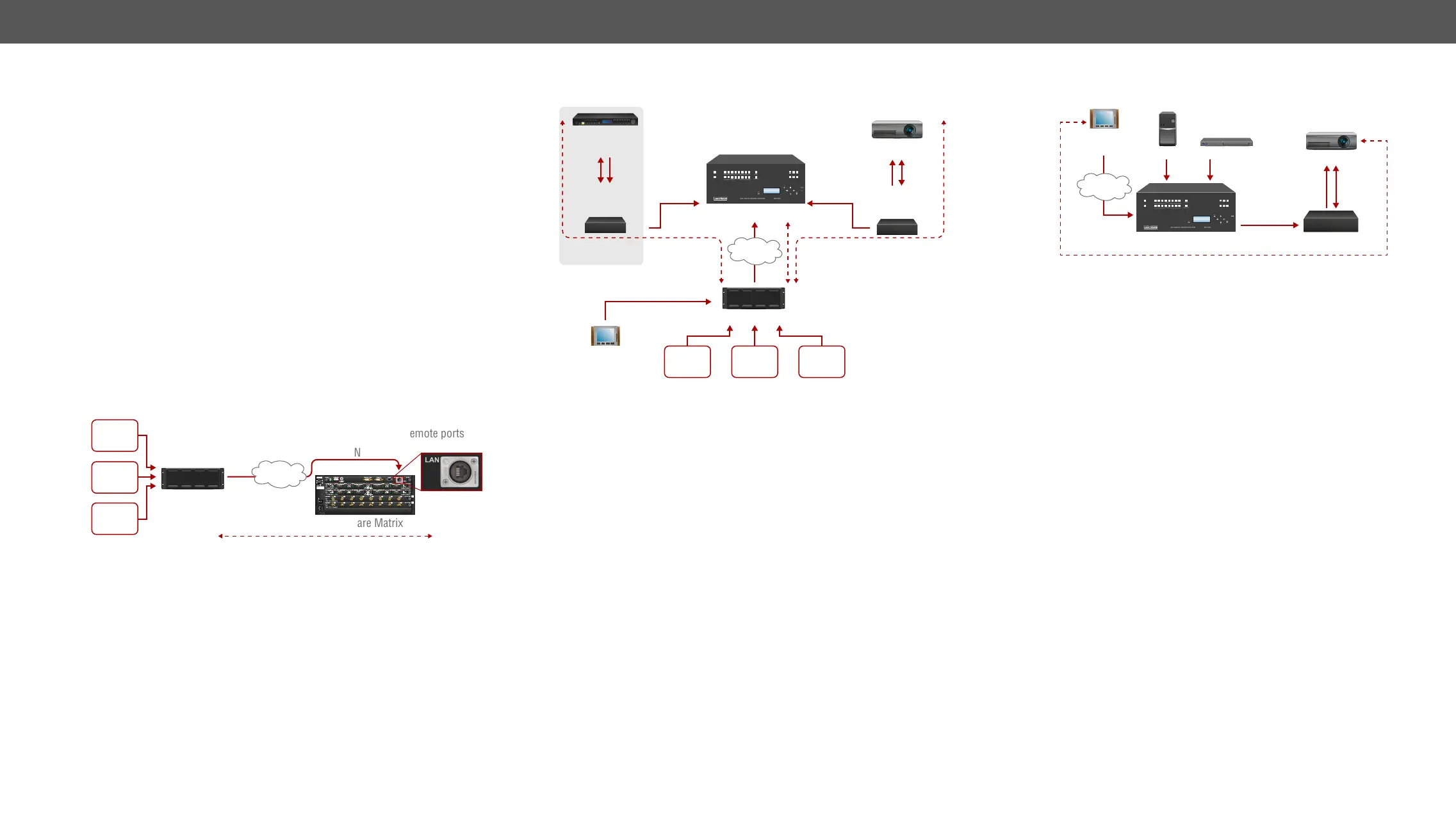

The RS-232 control command is transmitted from the touch control
which also transmits the video and audio. The touch screen can
control the matrix as well to perform crosspoint-switching or change
settings in the frame.
Lightware Matrix
3rd party
Control System
One LAN connection is required to
access all RS-232 remote ports
Light
Control
Blinds
Control
Sound
Control
LAN
LAN
Ethernet
Bi-directional Control Data
100-240 V AC
50/60 Hz, 2.5-1.1 A
FUSE: F 3.15 A L
POWER
Made in EU, Hungary
CPU
OUT
1-8
OUT
9-16
Conference Room Application
Both professional sources and displays can be controlled through the
command to the control system, which adjusts the lighting and
to the lectern laptop.
1
1
2
2
3 4 5 6 7 8 9
3 4 5 6 7 8 9
9x9 DIGITAL MATRIX ROUTER
Lightware Matrix
3rd party Control System
Light
Control
Blinds
Control
Sound
Control
Projector
Fiber
optic
Video
LECTERN
LAN
LAN
RS-232
3rd party
Touch Control
Professional
Media Player
Lightware
Transmitter
Lightware
Receiver
Video RS-232
Ethernet
Bi-directional
Control Data
Bi-directional
Control Data
Fiber
optic
Control System Connection
The third-party control system is connected to the Lightware
crosspoint via a LAN connection to access all RS-232 remote ports.
Control commands can only be sent to and received from the matrix
on the LAN connection by the control system.
The baud rate can be 9600, 19200, 36800, 57600. There is a stop bit
and no parity bit covering all consumer devices on the market to be
suitable for the communication. The control protocol has two different
methods for sending and receiving RS-232 data from or to the frame:
ASCII mode could be used only with human readable characters while
binary mode can handle any data.
It is also important, that the control interfaces on the router (USB,
IP, and RS-232) use a shared resource. Please ensure that across all
connections no more than 8 unanswered queries are in progress. If
proper locking can not be implemented, waiting for 600 ms between
1
1
2
2
3 4 5 6 7 8 9
3 4 5 6 7 8 9
9x9 DIGITAL MATRIX ROUTER
Lightware ReceiverLightware modular digital matrix
Projector
Fiber optic
Video
HDMI HDMI
RS-232
3rd party
Touch Control
Ethernet
PC Blu-ray player
Bi-directional Control Data
