6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 77
Settings Menu

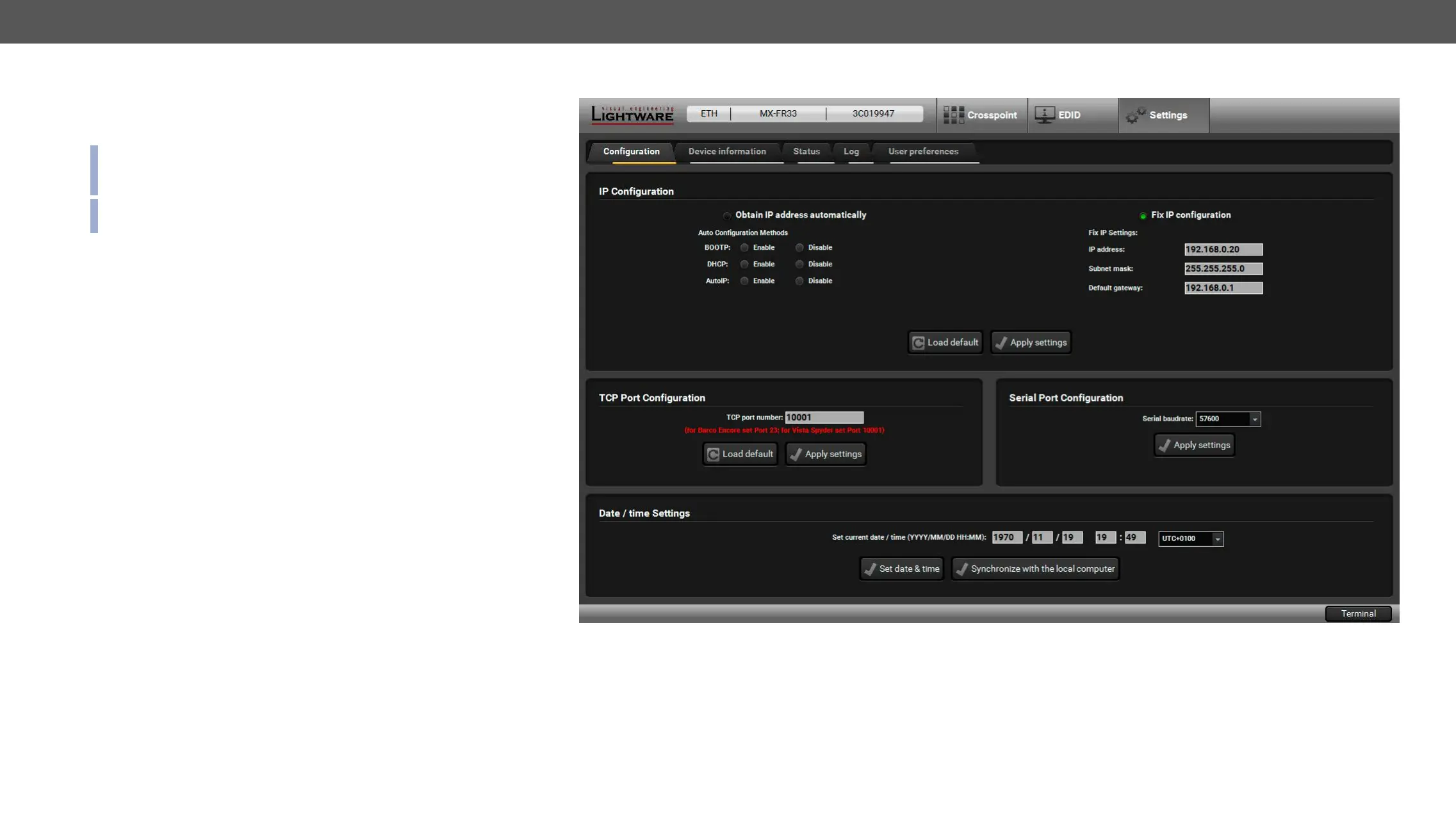

Communication settings are available on this tab.
INFO: Load default button restores the default network settings in
the device. The default network settings can be found in the Factory
Default Settings section.
INFO:
cannot be changed.
Obtain IP Address Automatically
By selecting the Obtain IP address automatically option, the matrix gets
the IP address from the DHCP server on the LAN, or if DHCP server is
not present, it gets an AutoIP address from 169.254.xxx.xxx domain.
Set BOOTP, DHCP and AutoIP settings according to your network
requirements. Always press the Apply settings button to save changes.
might need to restart the device and the LDC Software. Always press
the Apply settings button to save changes.
1025 and 65535 except the followings: 9999, 14000 - 14009, 30704,
and 30718. To use a matrix with Barco Encore set the port to 23. To
use a matrix with Vista Spyder set the port to 10001. Always press the
Apply settings button to save changes.
The Baud rate for serial connection can be set by the drop-down list:
9600, 19200, 38400, 57600, or 115200. Always press the Apply settings
button to save changes.
Conguration Tab
