Lightware MX-FR Series

 MX-FR Series Modular Matrix Frames – User's Manual 93

Description: Shows the currently emulated EDIDs for each input. The response length depends on the frame
size (number of inputs). The value at the given index (<in1>..<inN>) shows which EDID is used on that
particular input.
Legend: All <INx> indexes show a <loc> which was copied to that input port.
 F049 (Factory preset EDID #49) is emulated on all inputs except 9-12 and 17. U002 (User saved
EDID #2) is emulated on inputs 9-12. EDID from output 4 is dynamically emulated on input 17.


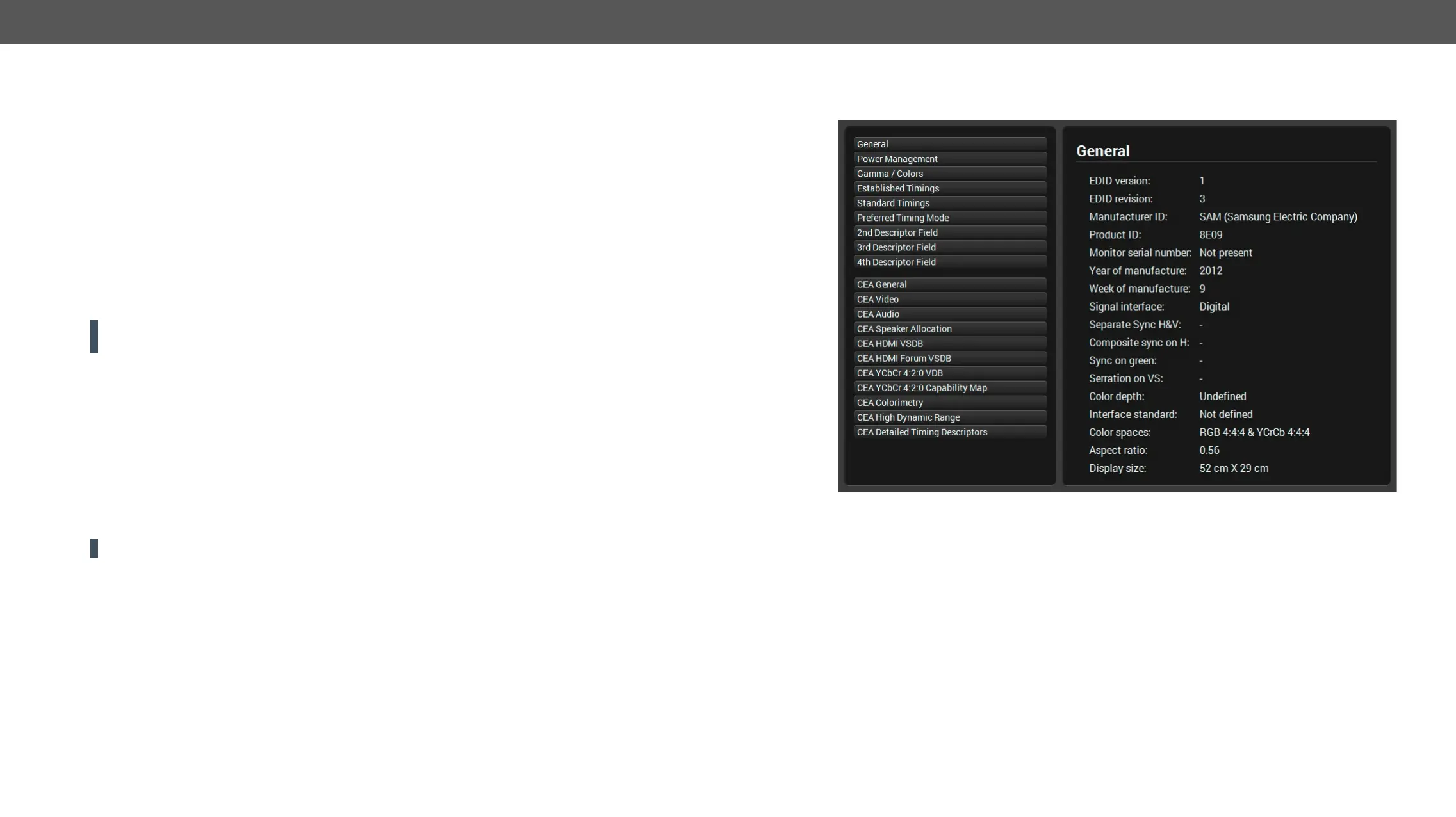

Description: Shows basic information about EDIDs in the memory.
 Shows the EDID from memory location D14 which is the EDID from the Last attached monitor
on output 14.
Legend: Depending on <loc> the query can be for one EDID or all EDID in the block.
Format 
Command {VEDID}
→
{vedid}
Response (VEDID●<IN1>●<IN2>●<IN3>●<IN4>●
<IN5>●<IN6>●<IN7> ●<IN8>●<IN9>●
<IN10>●<IN11>●<IN12>●<IN13>●
<IN14>●<IN15>●<IN16>● <IN17>)CrLf
←
(VEDID F049 F049 F049 F049 F049 F049 F049
F049 U002 U002 U002 U002 F049 F049 F049
F049 D004)CrLf
Format 
Command 
→
{whd14}
Response (EH#<loc>●
<EDID_HEADER>)CrLf
←
(EH#D14 NEC 1280x1024@60 LCD1970NXp)
CrLf
<loc> Result Response
Fxx Factory EDID query
header for one EDID
Uxx User EDID query
Dxx Dynamic EDID query
Exx Emulated EDID query
F* All Factory preset EDIDs headers for all Factory EDIDs
U* All User saved EDIDs headers for 50 user EDIDs
D* All Dynamic EDIDs headers from all outputs (frame size)
E* All Emulated EDIDs headers from all inputs (frame size)

The <EDID_HEADER> is ‘-‘ for invalid EDIDs.
Deleting an EDID From the Memory
Description: Clear EDID from memory location <loc>.
 All user EDIDs are cleared from memory.
Legend: Depending on <loc>, one EDID or all EDIDs in a block can be cleared.
Downloading the Content of an EDID
Description: EDID hex bytes can be read directly. The router will issue the whole content of the EDID present
on memory location <loc> (256 bytes).
Legend: <B1>..<B256> are space separated hex characters represented in ASCII format.
Full EDID from memory location F1 is downloaded.
<loc> Result
PNPID code The three letter abbreviation of the manufacture
Preferred resolution The resolution and refresh rate stored in the preferred detailed timing block.
Name The name of display device stored in product descriptor.
Format 
Command {DE<loc>}
→
{deu*}
Response (DE_OK)CrLf
(E_S_C)CrLf
←
←
(DE_OK)CrLf
E_S_C)CrLf
<loc> Result
Fxx Not valid! Factory EDID cannot be deleted. No response.
Uxx 
Dxx 
Exx 
F* Not valid! Factory EDID cannot be deleted. No response.
U* All User EDIDs are deleted.
D* All Dynamic EDIDs are deleted. They will be empty until a new monitor is connected.
E* All Emulated EDIDs are cleared. By default F49 EDID is copied to them.
Format 
Command 
→
{wef1}
Response (EB#<loc>●<B1> ●<B2>●..●<B256>)CrLf
←
(EB#F1 00 FF FF FF FF FF FF 00 32 F2 00 00 00
.. .. .. 00 00)CrLf




