6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 72
TPS Type Output Port
Supported Boards:
▪ MX-TPS-OB, -S, -A
▪ MX-TPS2-OB-P, -AP, -SP
▪ MX-4TPS2-4HDMI-OB, -A, -S, -P, -AP, SP (only the four TPS ports of the board)

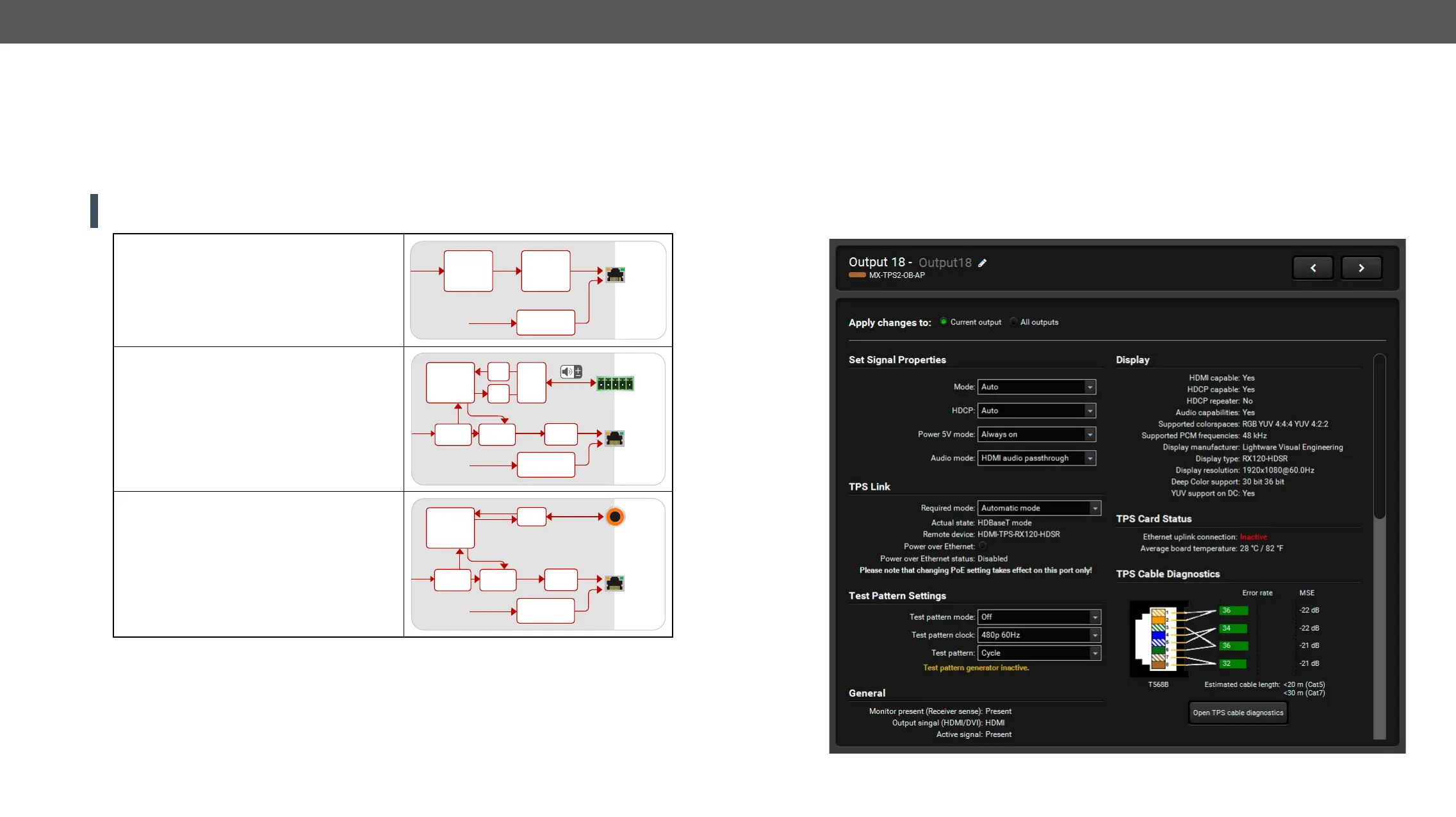

Port Diagrams
ATTENTION!
TPS Mode Setting
The required mode can be HDBaseT, Longreach, Automatic, RS232 only and RS232+ETH only. For detailed
information about the TPS modes see the TPS Link Modes section.
Audio Mode
Here can be selected which audio signal will be embedded in the forwarded HDMI signal. It can be set to ‘(A)
Audio Options section.
MX-TPS-OB
MX-TPS2-OB-P
Plain TPS output board with remote power support
without additional audio ports.
TPS OUT
EQ+
Reclocker
TPSHDMIHDMI
HDBaseT
TX
Switchable PoE
Power Injector
48V external
power
MX-TPS-OB-A
MX-TPS2-OB-AP
TPS output board with remote power support and
additional analog audio port. The additional audio
port can be used as an input (embedding the an-
alog audio signal in the video of the TPS signal),
or it can be used as an output (de-embedding the
audio content of the HDMI stream).
TPS OUT
ADC
TPS
S/PDIF in
S/PDIF out
balanced
in/out
analog
audio
DAC
S/PDIF
crosspoint
De-
embedder
Embedder
Switch
HDMI
I
HDBaseT
TX
Switchable PoE
Power Injector
48V external
power
MX-TPS-OB-S
MX-TPS2-OB-SP
TPS output board with remote support and ad-
port can be used as an input (embedding the dig-
ital audio signal in the video of the TPS signal),
or it can be used as an output (de-embedding the
audio content of the HDMI stream).
TPS OUT
RCA
S/PDIF
crosspoint
Switch
S/PDIF out
S/PDIF in
S/PDIF
in
out
De-
embedder
Embedder
TPSHDMI
I
HDBaseT
TX
Switchable PoE
Power Injector
48V external
power
The PoE-compatible remote power feature can be enabled on each port individually under TPS link section
and the current state is shown in the following line.
Firmware Settings
The settings and the upgrade process is described in the Firmware Upgrade of TPS(2) Ports section.
TPS boards can display the name of the remote Lightware device which is displayed in the TPS Link section.
Click on the Open remote device settings button to open a new window:
TPS Type Output Port Properties (MX-TPS2-OB-AP)
