3. Product Overview MX-FR Series Modular Matrix Frames – User's Manual 20

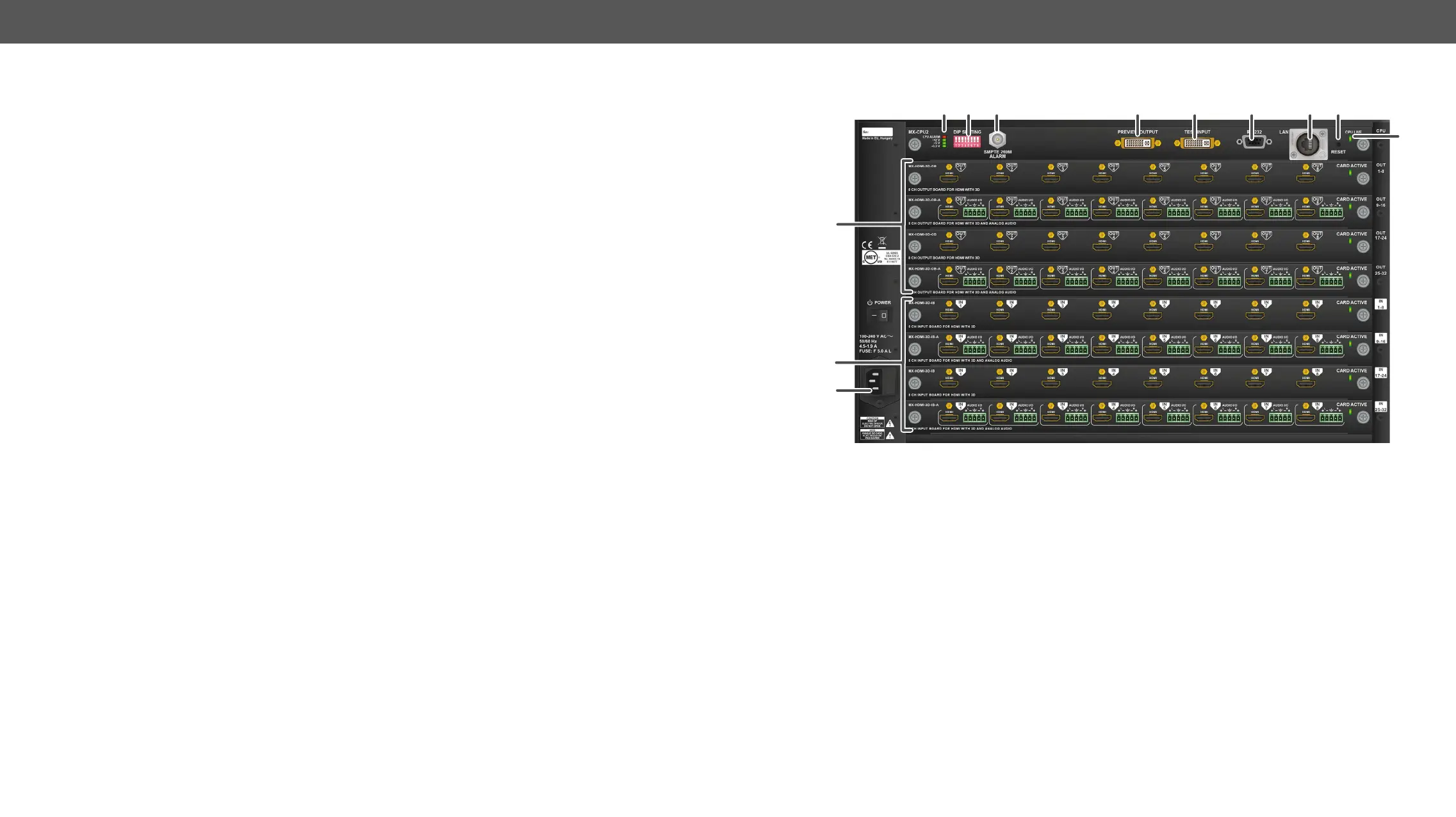

Rear View
1
Status LEDs LED indicators for internal DC power voltages and alarm.
2
DIP settings Special settings can be made with these switches.
3
Alarm out Standard SMPTE 269M alarm output with BNC connector. See
the Alarm Output section for more information.
4
Preview output DVI output connector, which is directly connected to the 80th
output. See the DVI Inputs and Outputs and the Test Input and
Preview Output sections for more information.
5
Test input
for the 80th input. See the DVI Inputs and Outputs and the Test
Input and Preview Output sections.
6
Serial port 9 pole D-SUB female connector for RS-232 serial connection.
See the RS-232 Ports section for more information.
7
Ethernet port
can be also performed over this interface. See the Ethernet
Ports section for more information.
8
Reset button Reset button reboots the matrix. This is same as disconnecting
from power source, and reconnect again.
9
CPU live CPU live LED blinks to indicate normal operation.
q
Output boards Modular output board slots. Connect DVI sink devices to these
connectors.
w
Input boards Modular input board slots. Connect DVI source devices to
these connectors.
e
Power Mains switch and AC power connector.
1 2 3
4 5 6 7 8
