Lightware MX-FR Series

6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 63

Supported Boards:
▪ MX-4TPS2-4HDMI-IB, -A, -S, -P, -AP, -SP (only the four HDMI ports of the boards)
▪ MX-HDMI-3D-IB, -A, -S
▪ MX-DVI-4K-IB
Input board with HDMI or DVI-I ports and 3D signal support. Boards with additional audio features contain
more options as shown in the screenshot, see the Settings section. For the better understanding of these
audio modes please see the port diagrams in the following section.

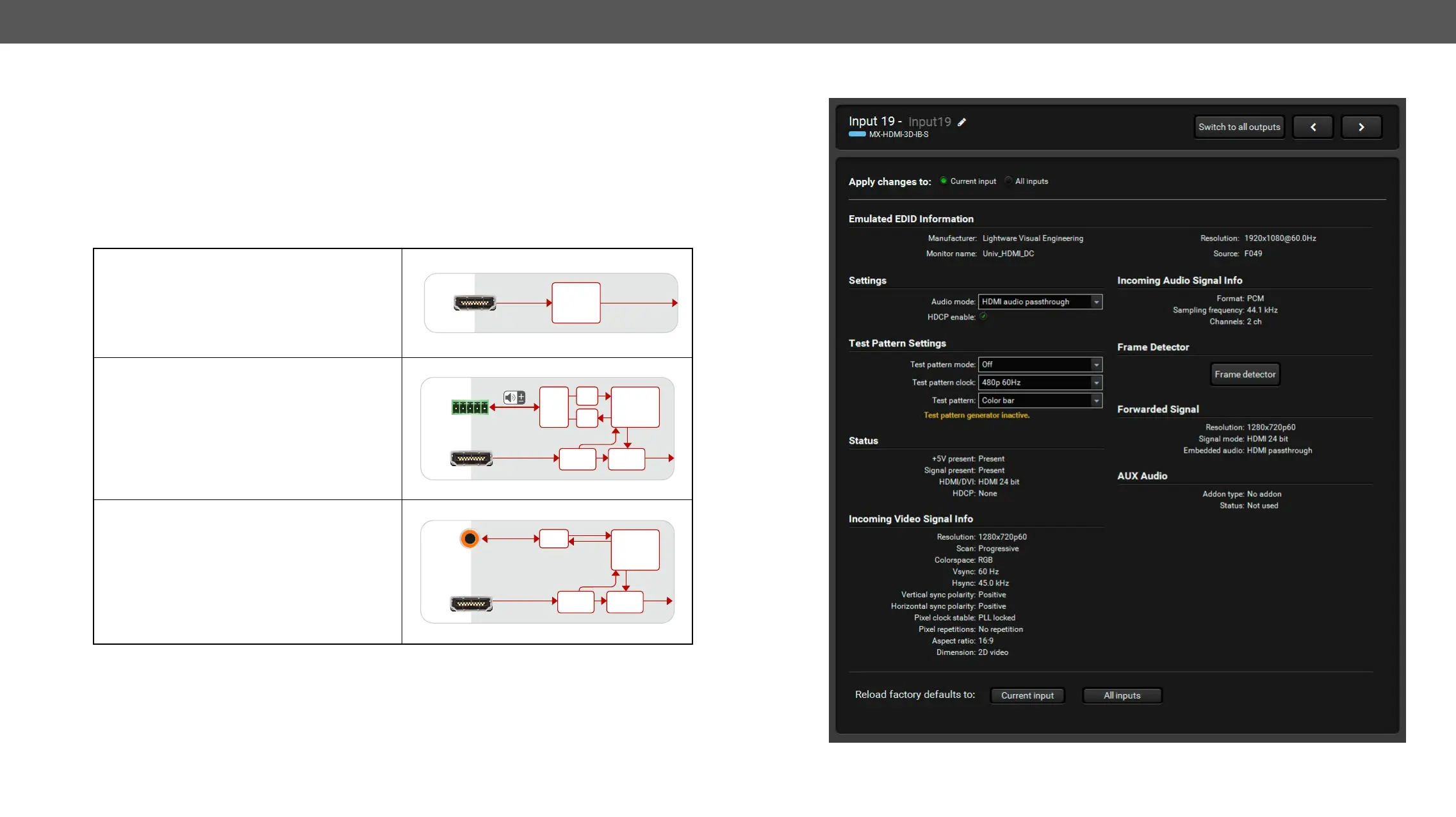

Port Diagrams
* Refers only to the four HDMI ports of the board.
For detailed information about the audio settings see the Audio Options section.
MX-HDMI-3D-IB
MX-4TPS2-4HDMI-IB*
MX-4TPS2-4HDMI-IB-P*
Plain HDMI input board with 3D support without
additional audio ports.
HDMI
HDMI
HDMI
EQ+
Reclocker
MX-HDMI-3D-IB-A
MX-4TPS2-4HDMI-IB-A*
MX-4TPS2-4HDMI-IB-AP*
HDMI input board with 3D support and additional
analog audio port. The additional audio port can
be used as an input (embedding the analog audio
signal in the HDMI stream), or it can be used as an
output (de-embedding the audio content of the HDMI
stream).
S/PDIF
crosspoint
ADC
HDMI
HDMI HDMI
S/PDIF in
S/PDIF out
analog
audio
DAC
De-
embedder
Embedder
Switch
balanced
in/out
MX-HDMI-3D-IB-S
MX-4TPS2-4HDMI-IB-S*
MX-4TPS2-4HDMI-IB-SP*
HDMI input board with 3D support and additional
       
be used as an input (embedding the digital audio
signal in the HDMI stream), or it can be used as an
output (de-embedding the audio content of the HDMI
stream).
HDMI
RCA
S/PDIF
crosspoint
Switch
HDMI
HDMI
De-
embedder
Embedder
S/PDIF out
S/PDIF in
S/PDIF
in
out
Input Parameters of HDMI-3D Type Input Port (MX-HDMI-3D-IB-S)




