4 Operation
Standard equipment

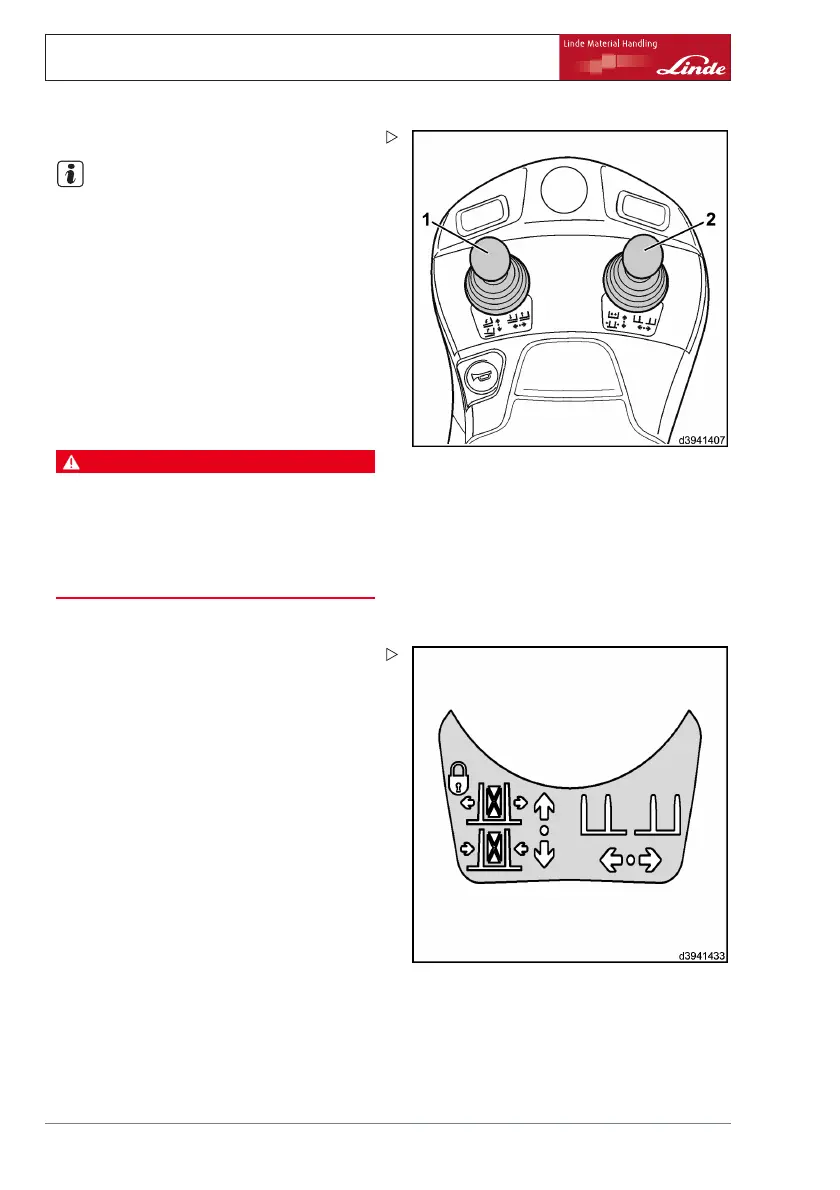

Operating the fork prong positioner
NOTE
In order to prevent damage, do not activate
the fork prong positioner with a load, or with
the fork arms on the ground. Do not use the
fork prong positioner as a clamp.
¾ Push the joystick (2) forwards.
Fork arms move outwards.
¾ Pull the joystick (2) backwards.
Fork arms move inwards.
Operating the clamp
DANGER
Increased risk of accident from a falling load.
For attachments that perform a clamping function
(e.g. a bale clamp), a lockable joystick must be
used.
If your truck is not fitted with this equipment, please
contact your authorised dealer.
Version 1: Electronically locked
¾ Take note of the switching symbols with
arrows.
