Programming Basics
Page 1-4System Programming Console
1
System Programming Console 1
The system programming console is an MLX-20L telephone connected to the
system programming jack. When you begin system programming on a new
system for the first time, the console must be connected to the first jack on the first
008 MLX module or 408 GS/LS-MLX module (Release 2.0 and later versions).
This jack is factory set as the system programming jack and as an operator
position. When you program for the first time, you can change the system
programming jack to any one of the first five jacks on the first 008 MLX module or
408 GS/LS-MLX module (Release 2.0 and later versions). This allows you to
program without interfering with the operator’s call handling.
You can also have one or two Direct Station Selectors (DSSs) connected to the
system programming console. Each DSS adds 50 extension buttons to the
console, which facilitates assigning features to extensions.

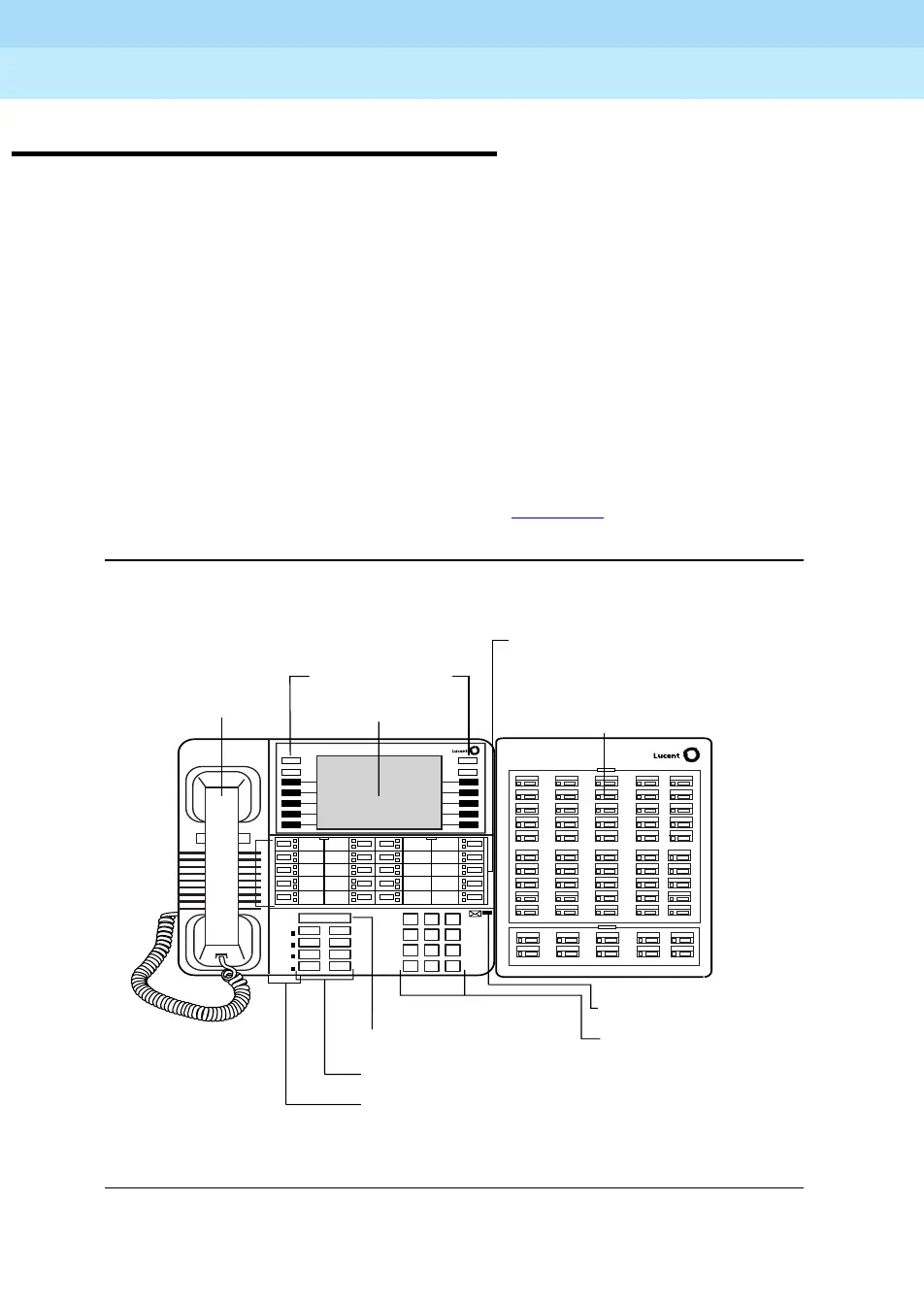

An MLX-20L telephone with a DSS is shown in Figure 1–1
.
Figure 1–1. MLX-20L Telephone with Direct Station Selector (DSS)
ABC DEF
GHI JKL
MNO
PQRS TUV WXYZ
OPER
123
456
789
0
#
*
Direct
Station Selector
(DSS)
Display Buttons
Display Screen
Handset
Volum e
v
v
Feature
HFAI
Mute
Speaker Hold
Drop
Conf
Transfer
Home
Menu
More
Inspct
00
Message Light
Volume Control
User Cards and Tray
Fixed-Feature Buttons (8)
Dialpad
Call and Fixed-Feature Buttons
Button Labeling Card
MLX-20L
