MERLIN LEGEND Communications System Release 6.1
System Programming Guide
555-661-111
Issue 1
August 1998
Programming Basics
Page 1-7System Programming Console
1
Console Buttons 1
Use the 14 buttons located on either side of the MLX-20L console display area for
system programming. These buttons are arranged in two columns of seven
buttons, as shown in Figure 1–2
.

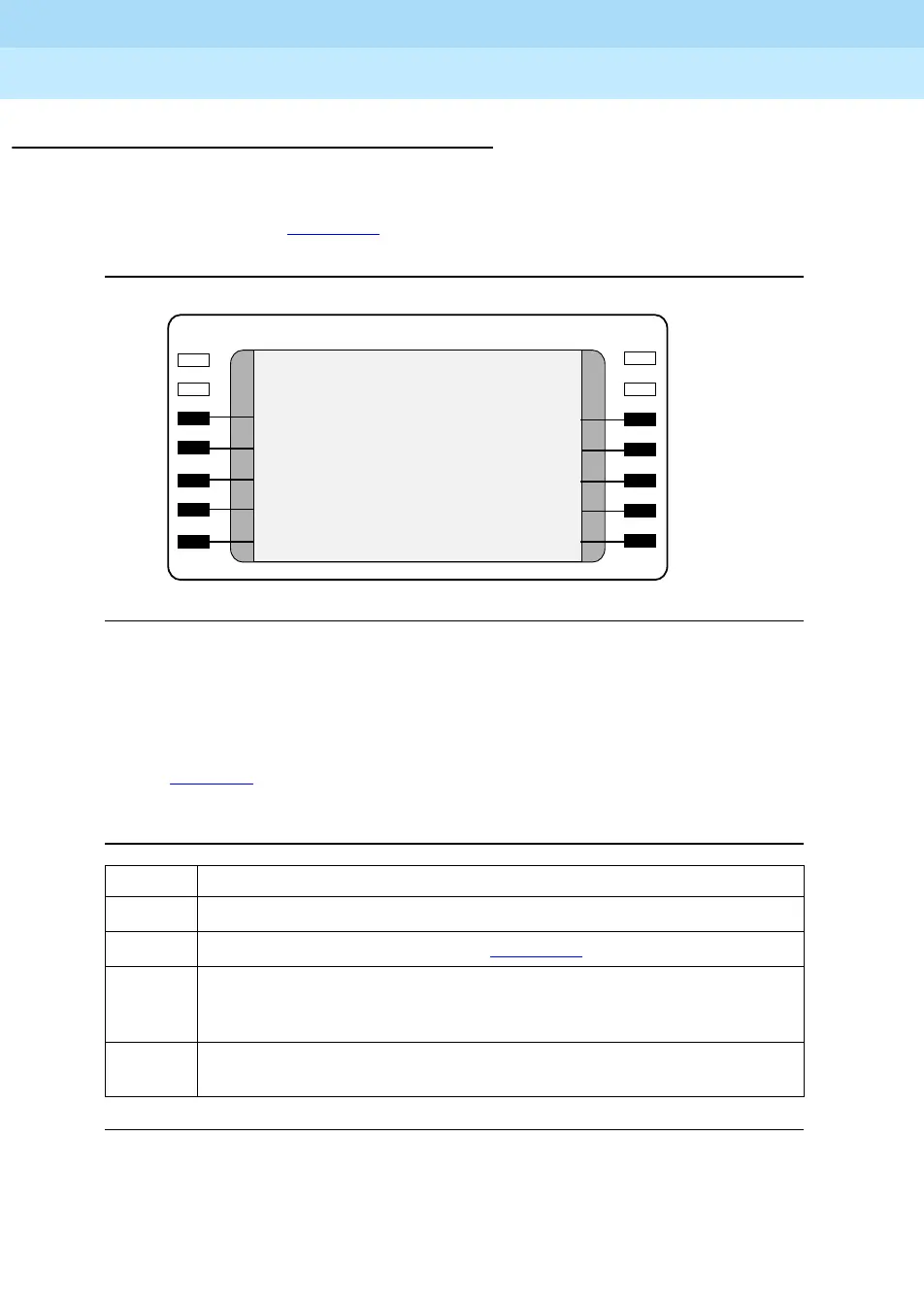

Figure 1–2. Display Buttons and Main Menu
Fixed Display Buttons 1
The top two buttons in each column have the same labels and functions
regardless of the screen display. This type of button is called a
fixed display
button.
Table 1–3 describes the functions of the fixed display buttons.
Table 1–3. Fixed Display Buttons
Button Function
Home
Return to normal call-handling mode after you finish programming.
Menu
Display the main menu shown in Figure 1–2
.
More
Display more items when a menu is continued on more than one
screen, indicated by an angle bracket (
!) on the upper right of the
screen.
Inspct
(Inspect) View a list of lines or extensions on which a feature is
programmed or the settings for a feature.
Home
Menu
More
Inspct
MENU MODE: Select Feature
Press HOME to Exit
Directory
Messages
Posted Msg
Alarm Clock
Timer
Ext Program
Maintenance
Sys Program
To Next Page
