MERLIN LEGEND Communications System Release 6.1
System Programming Guide
555-661-111
Issue 1
August 1998
Programming Procedures
Page 3-539Automatic Route Selection
3
Console Display/Instructions Additional Information PC
!Erase the current stop time (
xxxx
).
!Enter the stop time for Subpattern B (
hh
= 00 to 23,
mm
= 00 to 59).
Dial or type [
hhmm
]. Ã
!Save your entry.
Select
(QWHU.
!Return to the System Programming menu.
Select
([LW twice.
Pool Routing 3
Use this procedure to identify the trunk pools on which to route calls to area codes
and/or exchanges included in ARS tables.
A maximum of six routes (numbered 1 through 6) can be specified for each
subpattern. Pool routing is programmed for Tables 1 through 16. Tables 17 and
18, the Default Toll and Default Local tables respectively, are factory set to the
main pool and can be changed.
NOTES:
1. In Release 6.0 and later, when routing for ARS 10*** and 101****
equal-access calls (Interexchange Carrier or IXC) from a private
networked switch that is not connected to the public switched network
and only has private network tandem trunks, the private network tandem
trunks must be assigned to the main pool on the system where ARS is
dialed. The ARS access code for the caller’s system must match that of
the system where the public switched network trunks are connected. For
this reason, consider using the same ARS access code for all systems
in the private network.
2. For Dial 0 and Special Numbers N11 calls (for example, 411 or 911)
routed from systems with only private trunks, the private trunks must be
assigned to the main pool, and the ARS access code of the remote
system must be prepended to the dialed number (see “Dial 0 Table” on
page 3–558 and “N11 Special Numbers Tables” on page 3–554).
Therefore, ARS access codes should be the same.

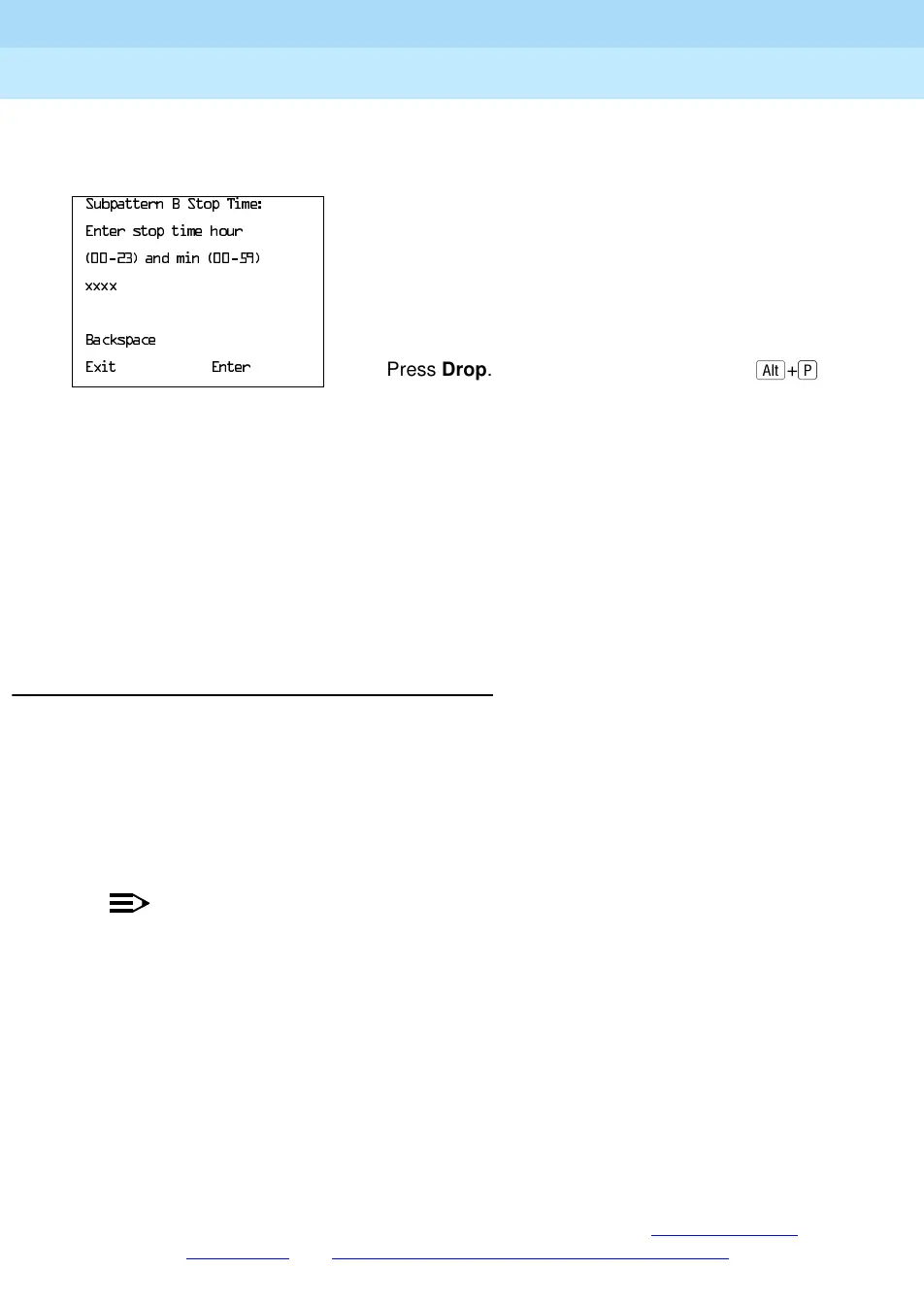

6XESDWWHUQ%6WRS7LPH
(QWHUVWRSWLPHKRXU
DQGPLQ
[[[[
%DFNVSDFH
([LW (QWHU
Press Drop.
7
+
I
