MERLIN LEGEND Communications System Release 6.1
System Programming Guide
555-661-111
Issue 1
August 1998
Programming Basics
Page 1-9System Programming Console
1

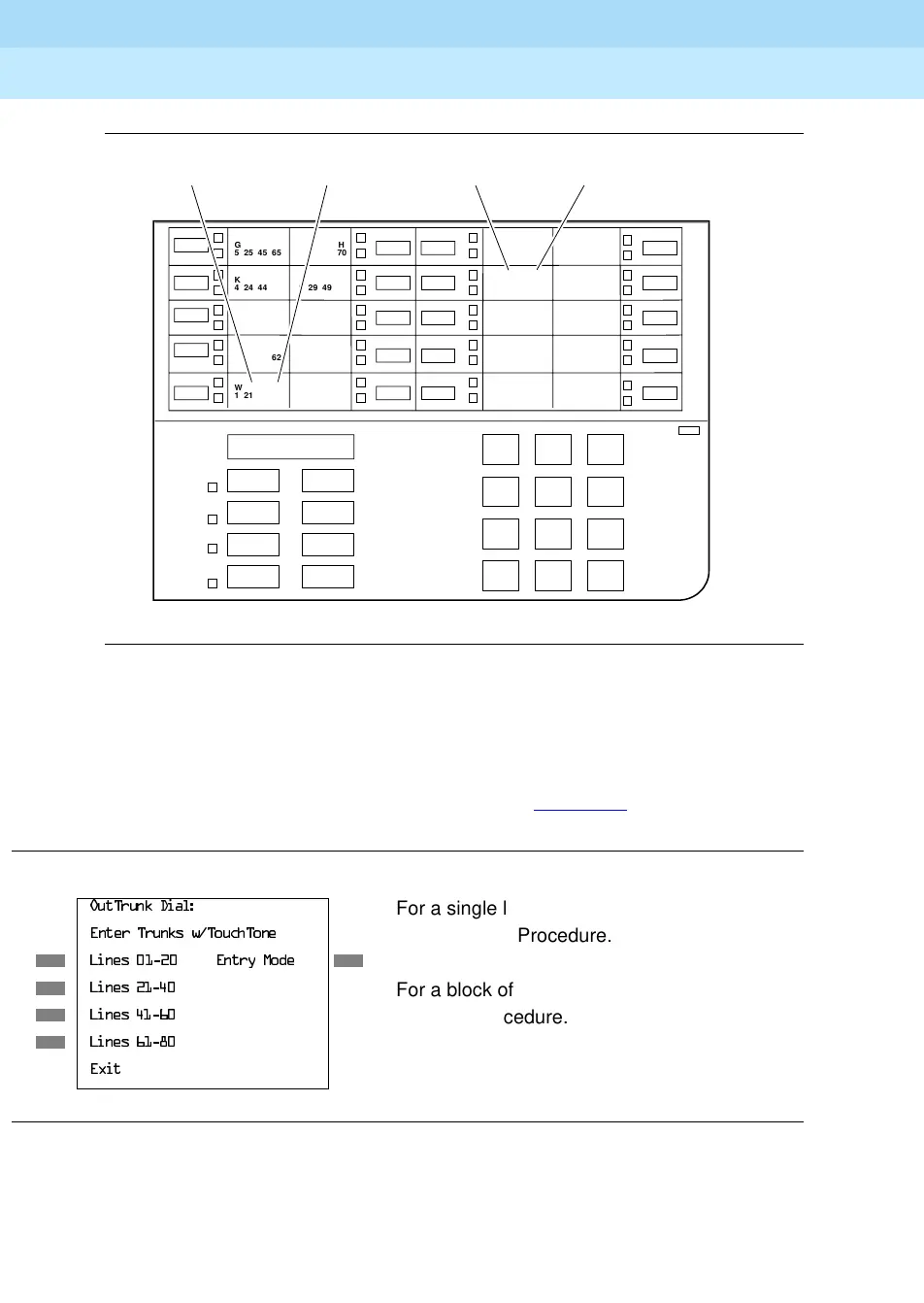

Figure 1–3. Console Overlay
When programming lines/trunks, you can select a block of 20 lines/trunks as
shown on the screen below, and toggle the green or red LED associated with
each line button on the console to program each line/trunk. The bottom line of
numbers next to each line button on the console overlay represents the twenty
lines/trunks associated with each line button. See Figure 1–3
above.
Figure 1–4. Selecting a Block of Lines/Trunks
2XW7UXQN'LDO
For a single line, go to
(QWHU7UXQNVZ7RXFK7RQH
l
Single Line Procedure.
/LQHV (QWU\0RGH
/LQHV
For a block of lines, go to
/LQHV
u
Block Procedure.
/LQHV
([LW
G
5 25 45 65
K
4 24 44 64
O
3 23 43 63
S
2 22 42 62
W
1 21 41 61
1O 30 50 70
H
9 29 49 69
L
8 28 48 68
P
7 27 47 67
T
6 26 46 66
X
I
15 35 55 75
M
14 34 54 74
Q
13 33 53 73
U
12 32 52 72
Y
11 31 51 71
20 40 60 80
J
19 39 59 79
N
18 38 58 78
R
17 37 57 77
V
16 36 56 76
Z
Top Sys Prog
Stop/Drop Entry
Pause
Switchhook Flash
5/25
4/24
3/23
2/ 22
1/21
10 / 30
9/29
8/28
7/27
6/ 26
15 20
14 / 34 19
13 / 33 18
12 / 32
17
11 / 31 16
//
/
/
/
/
Line 21Line 1 Line 14 Line 34
