Lucent Technologies MERLIN LEGEND Release 6.1 System Programming

MERLIN LEGEND Communications System Release 6.1
System Programming Guide 555-661-111
Issue 1
August 1998

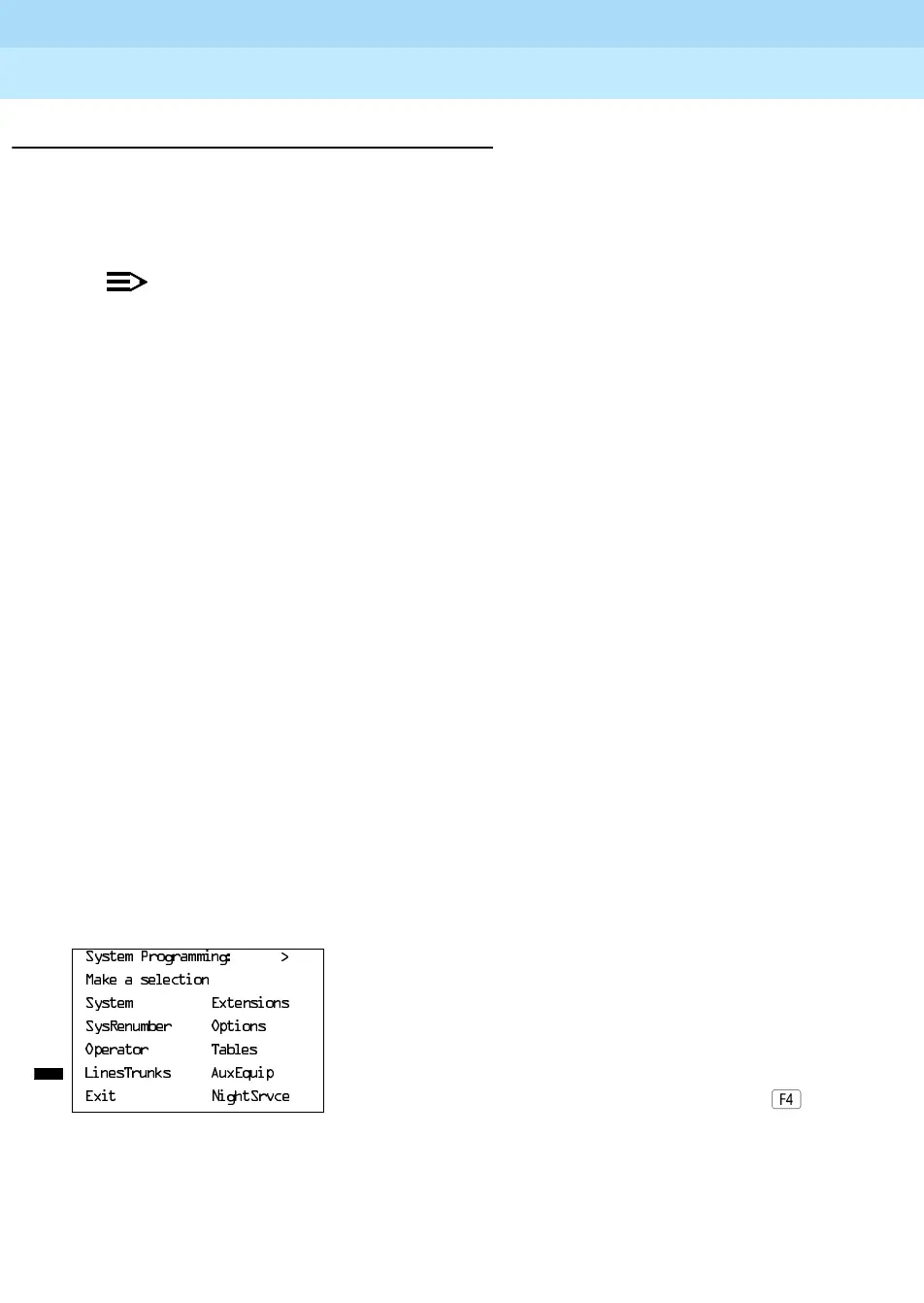

Programming Procedures
Page 3-128DS1 Facilities
3
Frame Format 3
Use this procedure to specify the framing format for the 100D module as
D4-compatible or Extended Superframe. Your selection must match the framing
mode at the far end of the DS1 facility.
NOTE:NOTE:NOTE:
In Release 6.0 and later systems, use the Extended Superframe format for
tandem PRI trunks.
Summary: Frame Format 3
Programmable by System Manager
Mode All
Idle Condition 100D module idle
Planning Form Form 3b, Incoming Trunks: DS1 Connectivity (100D module)
Factory Setting D4-compatible
Valid Entries D4, ESF
Inspect No
Copy Option No
Console Procedure
/LQHV7UXQNV→/6*6'6→Dial slot no.→ (QWHU→
)UDPH)RUPDW→Select format type→ (QWHU→([LW→([LW
PC Procedure

→→Type slot no.→→→Select format
type
→→→
Procedure: Frame Format 3
Console Display/Instructions Additional Information PC
! Select the Lines and Trunks menu.
6\VWHP3URJUDPPLQJ!
0DNHDVHOHFWLRQ
6\VWHP ([WHQVLRQV
6\V5HQXPEHU 2SWLRQV
2SHUDWRU 7DEOHV
/LQHV7UXQNV $X[(TXLS
([LW 1LJKW6UYFH

