Programming Procedures
Page 3-132DS1 Facilities
3
Console/Display Instructions Additional Information PC
! Select Suppression.
! Select AMI zero code suppression or bipolar 8 zero substitution.
! Save your entry.
Select
(QWHU.

! Return to the System Programming menu.
Select
([LW twice.

Signaling Mode 3
Use this procedure to specify the signaling for the 100D module as robbed-bit or
common-channel signaling.
NOTE:NOTE:NOTE:
This procedure is needed only for T1 facilities; common-channel signaling
is set automatically for PRI facilities.
Summary: Signaling Mode 3
Programmable by System Manager
Mode All
Idle Condition 100D module idle
Planning Form Form 3b, Incoming Trunks: DS1 Connectivity (100D module)
Factory Setting Robbed bit
Valid Entries Robbed Bit, Common Channel
'66ORW YY 
xx = slot number entered in Step 3

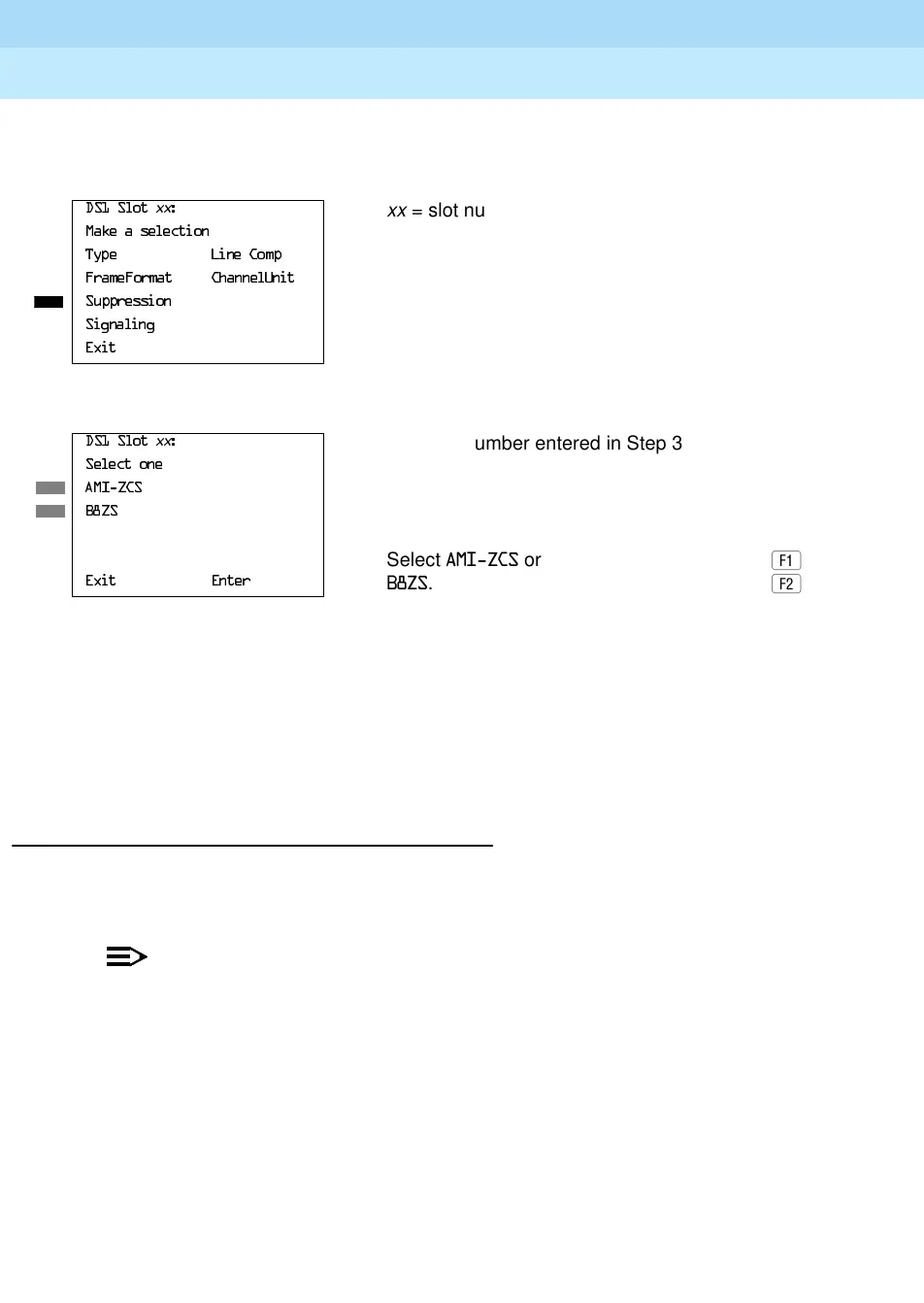

0DNHDVHOHFWLRQ
7\SH /LQH&RPS
)UDPH)RUPDW &KDQQHO8QLW
6XSSUHVVLRQ
6LJQDOLQJ
([LW

'66ORW YY 
xx = slot number entered in Step 3
6HOHFWRQH
$0,=&6
%=6
Select $0,=&6 or

([LW (QWHU
%=6.

