Lucent Technologies MERLIN LEGEND Release 6.1 System Programming

MERLIN LEGEND Communications System Release 6.1
System Programming Guide 555-661-111
Issue 1
August 1998
Programming Procedures
Page 3-187PRI Facilities
3
Console Display/Instructions Additional Information PC
! Save your entry.
Select
(QWHU.

! Specify the switch type.
! Save your entry.
Select
(QWHU.

! Return to the System Programming menu.
Select
([LWtwice.

Telephone Number 3
Use this procedure to assign a string of up to 12 digits to each PRI channel. This
string must match the number sent by the network (that is, the number provided
by the PRI service provider) to indicate the number dialed by an outside caller.
The system uses this number to route the call to the correct destination, which
means that the number assigned to each channel in the same B-channel group
must be unique. Note also that the number cannot be the same as the associated
test telephone number.
Summary: Telephone Number 3
Programmable by System Manager
Mode Hybrid/PBX, Key
Idle Condition Not required
Planning Form Form 3b, Incoming Trunks: DS1 Connectivity (100D module)
Factory Setting No digits
Valid Entries Up to 12 digits (any combination of 0 to 9)
Inspect No
Copy Option No

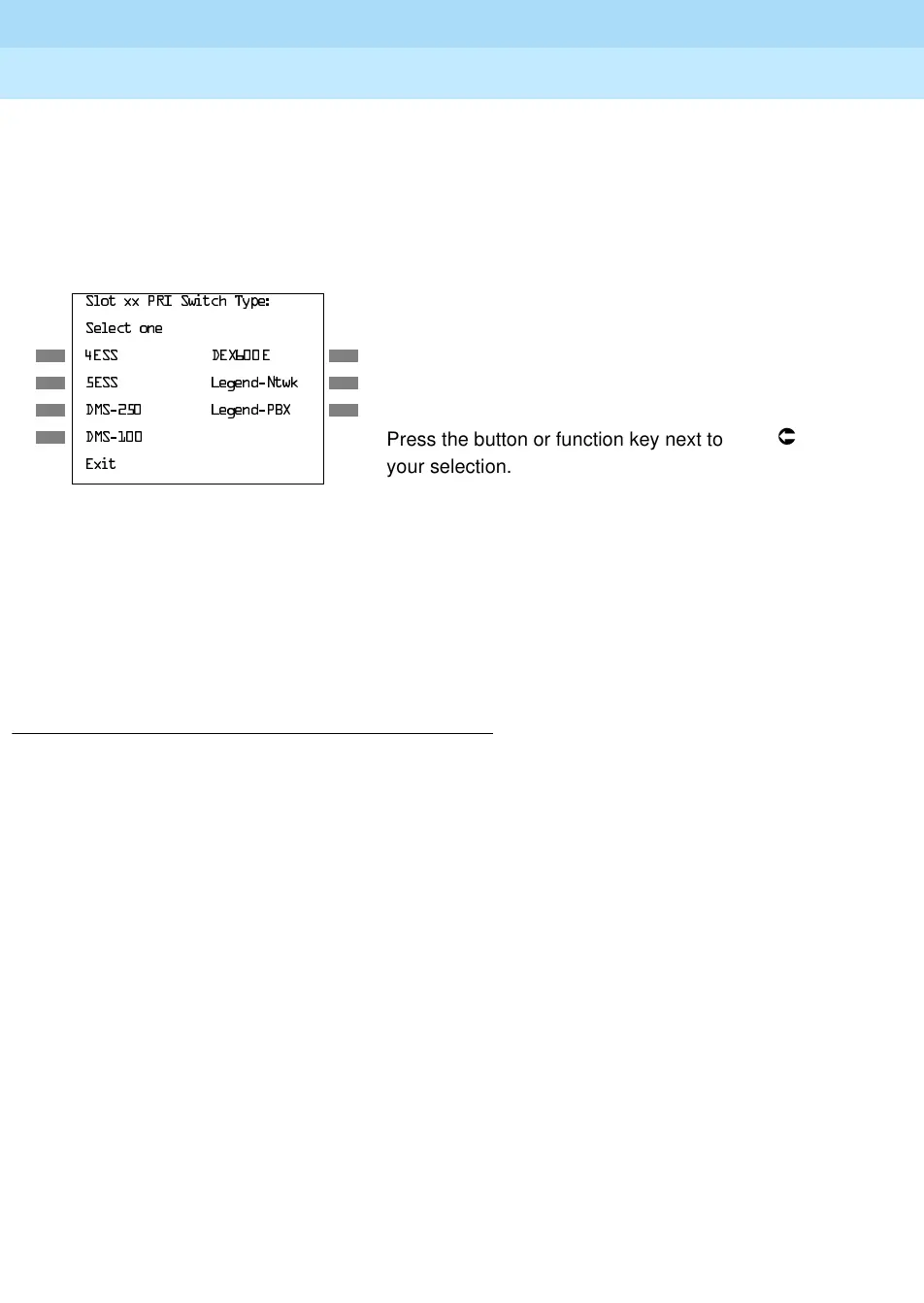

6ORW[[35,6ZLWFK7\SH
6HOHFWRQH
(66 '(;(
(66 /HJHQG1WZN
'06 /HJHQG3%;
'06
Press the button or function key next to
Ã
([LW
your selection.
