Lucent Technologies MERLIN LEGEND Release 6.1 System Programming

MERLIN LEGEND Communications System Release 6.1
System Programming Guide 555-661-111
Issue 1
August 1998
Programming Procedures
Page 3-297Auxiliary Equipment
3

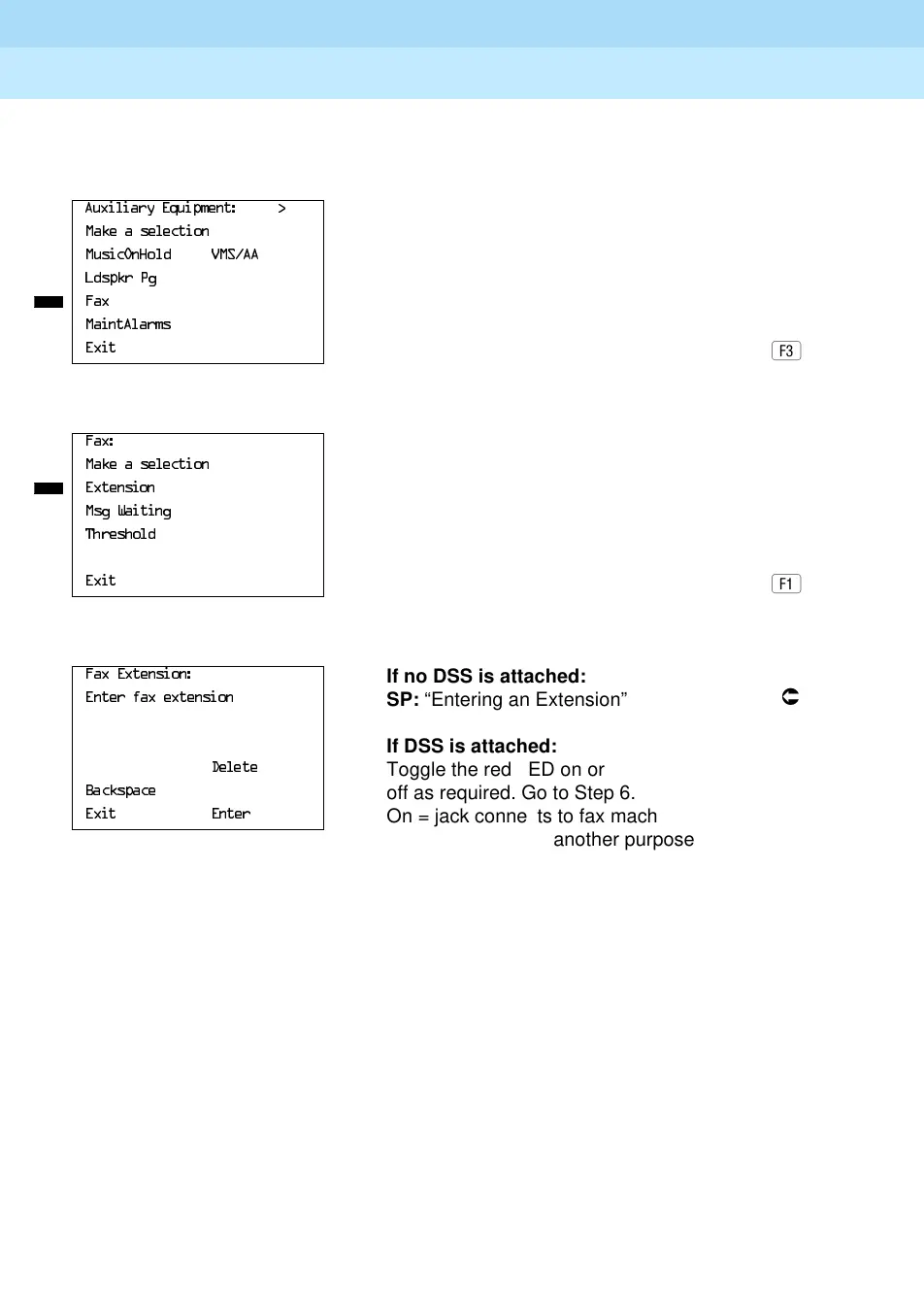

Console Display/Instructions Additional Information PC
! Select Fax.
! Select Extension.
! Specify the extension to be used for the fax machine.
! Assign or remove the extension.
Select
(QWHU or

'HOHWH.

You may continue to assign or remove fax
machines to additional extensions by repeating
Steps 4 and 5.
! Return to the Fax menu.
Select
([LW.

$X[LOLDU\(TXLSPHQW!
0DNHDVHOHFWLRQ
0XVLF2Q+ROG 906$$
/GVSNU3J
)D[
0DLQW$ODUPV
([LW

)D[
0DNHDVHOHFWLRQ
([WHQVLRQ
0VJ:DLWLQJ
7KUHVKROG
([LW

)D[([WHQVLRQ
If no DSS is attached:
(QWHUID[H[WHQVLRQ
SP: “Entering an Extension”
Ã
If DSS is attached:
'HOHWH
Toggle the red LED on or
%DFNVSDFH
off as required. Go to Step 6.
([LW (QWHU
On = jack connects to fax machine
Off = jack provides another purpose
