215585 171 Revision A

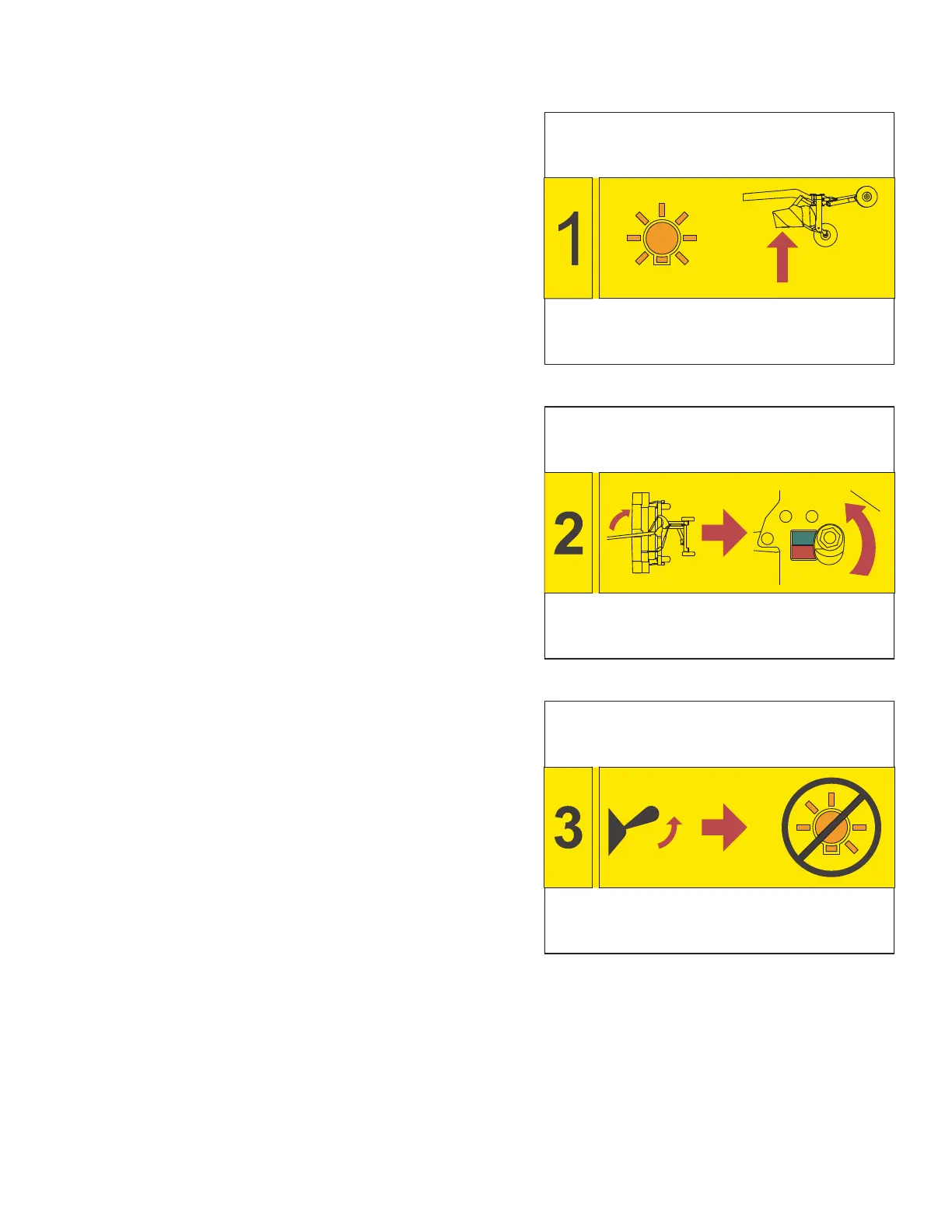

Figure 9.15: Raising Rotary Disc Pull-Type
4. While the light is illuminated, raise the rotary disc pull-
type fully by extending the field wheel cylinders.
Figure 9.16: Rotary Disc Pull-Type Rotation
5. Operate the hitch swing control lever to rotate the rotary
disc pull-type to the right until the cam bearing nut is
aligned with the green section of the transport alignment
gauge decal.
Figure 9.17: Transport Switch
6. Move the transport switch to the upper position and
ensure that the light is NOT illuminated. The hitch swing
circuit is now deactivated and the transport circuit is active.
TRANSPORTING THE ROTARY DISC PULL-TYPE
